7805 Series
Manufacturer: Belden Inc.
Beta
⌘K

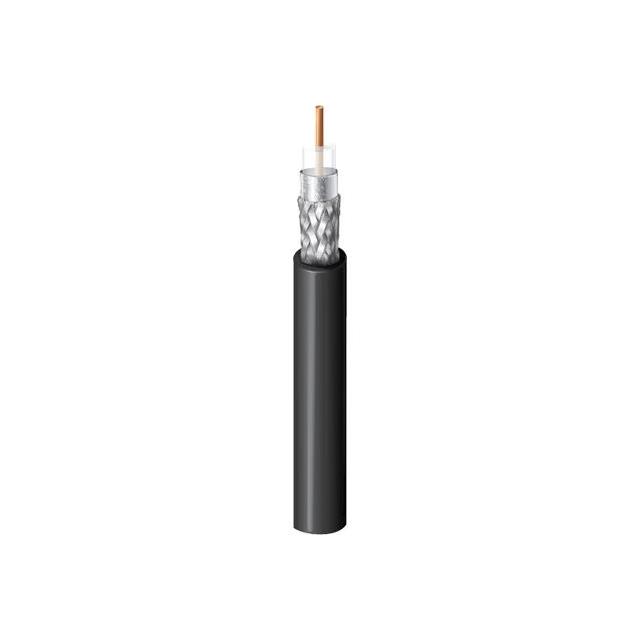

RF100 WIRELESS 50 OHM COAX PVC
| Part | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Shield Coverage | VoP, Velocity of Propagation | Shield Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Type | Wire Gauge | Cable Type | Jacket Color | Length [x] | Length [x] | Usage | Cable Group | Conductor Strand | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Bare | -40 C | 75 ░C | 90 % 100 % | 66 | Aluminum Polyester Copper Tinned | 1.55 mm | 0.061 in | Braid Foil | 25 AWG | Coaxial | Black | 152.4 m | 500 ft | RF Signal | RG-174 | Solid | 2.79 mm | 0.11 in | Poly-Vinyl Chloride (PVC) |
Belden Inc. | Copper Bare | -40 C | 75 ░C | 90 % 100 % | 66 | Aluminum Polyester Copper Tinned | 1.55 mm | 0.061 in | Braid Foil | 25 AWG | Coaxial | Black | 304.8 m | 1000 ft | RF Signal | RG-174 | Solid | 2.79 mm | 0.11 in | Poly-Vinyl Chloride (PVC) |
