1969570 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN HEADER VERT 10POS 2.5MM

Part	Insulation Color	Insulation Height	Insulation Height	Features	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Number of Positions	Number of Rows	Contact Finish - Post	Style	Connector Type	Mounting Type	Insulation Material	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)	Contact Shape	Applications	Contact Material	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Fastening Type	Voltage Rating	Contact Type	Termination
TE Connectivity Raychem Cable Protection 1-1969570-0	White	9.8 mm	0.386 in	Board Guide Glow Wire Compliant	2.5 mm	0.098 in	0.098 in	2.5 mm	Shrouded - 4 Wall	10	2	Tin	Board to Cable/Wire	Header	Through Hole	Nylon Polyamide (PA)	0.134 in	3.4 mm	4.2 A	Circular	General Purpose Industrial Lighting	Brass	UL94 V-0	105 ░C	-55 °C	All	Friction Lock	250 VAC	Male Pin	Kinked Pin Solder

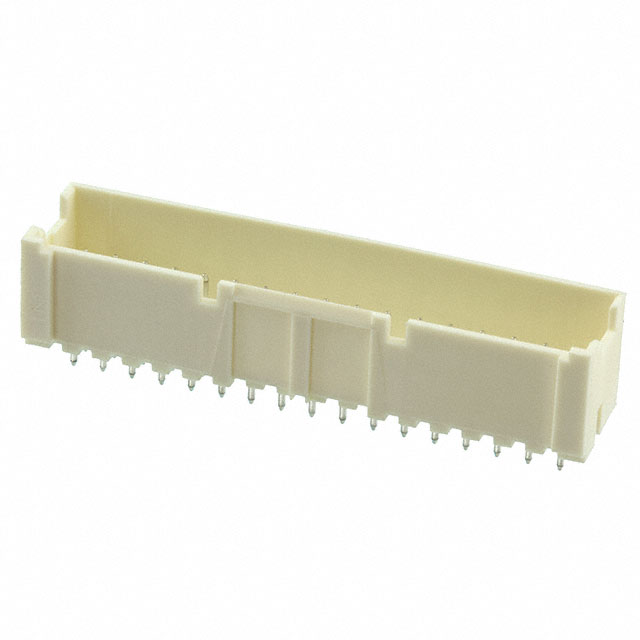

TE Connectivity Raychem Cable Protection 3-1969570-4	White	9.8 mm	0.386 in	Board Guide Glow Wire Compliant	2.5 mm	0.098 in	0.098 in	2.5 mm	Shrouded - 4 Wall	34	2	Tin	Board to Cable/Wire	Header	Through Hole	Nylon Polyamide (PA)	0.134 in	3.4 mm	4.2 A	Circular	General Purpose Industrial Lighting	Brass	UL94 V-0	105 ░C	-55 °C	All	Friction Lock	250 VAC	Male Pin	Kinked Pin Solder

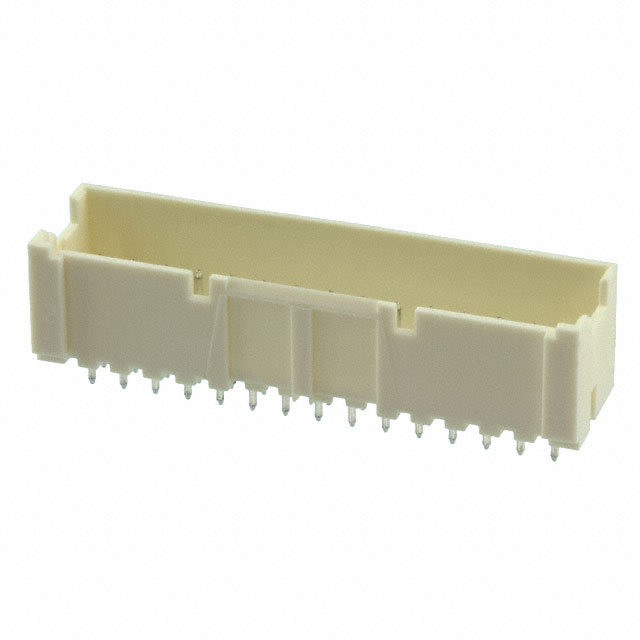

TE Connectivity Raychem Cable Protection 3-1969570-0	White	9.8 mm	0.386 in	Board Guide Glow Wire Compliant	2.5 mm	0.098 in	0.098 in	2.5 mm	Shrouded - 4 Wall	30	2	Tin	Board to Cable/Wire	Header	Through Hole	Nylon Polyamide (PA)	0.134 in	3.4 mm	4.2 A	Circular	General Purpose Industrial Lighting	Brass	UL94 V-0	105 ░C	-55 °C	All	Friction Lock	250 VAC	Male Pin	Kinked Pin Solder

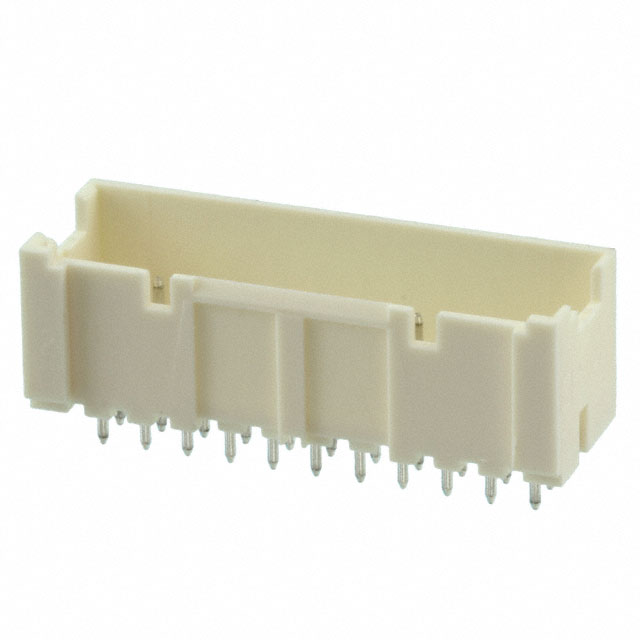

TE Connectivity Raychem Cable Protection 2-1969570-2	White	9.8 mm	0.386 in	Board Guide Glow Wire Compliant	2.5 mm	0.098 in	0.098 in	2.5 mm	Shrouded - 4 Wall	22 positions	2	Tin	Board to Cable/Wire	Header	Through Hole	Nylon Polyamide (PA)	0.134 in	3.4 mm	4.2 A	Circular	General Purpose Industrial Lighting	Brass	UL94 V-0	105 ░C	-55 °C	All	Friction Lock	250 VAC	Male Pin	Kinked Pin Solder

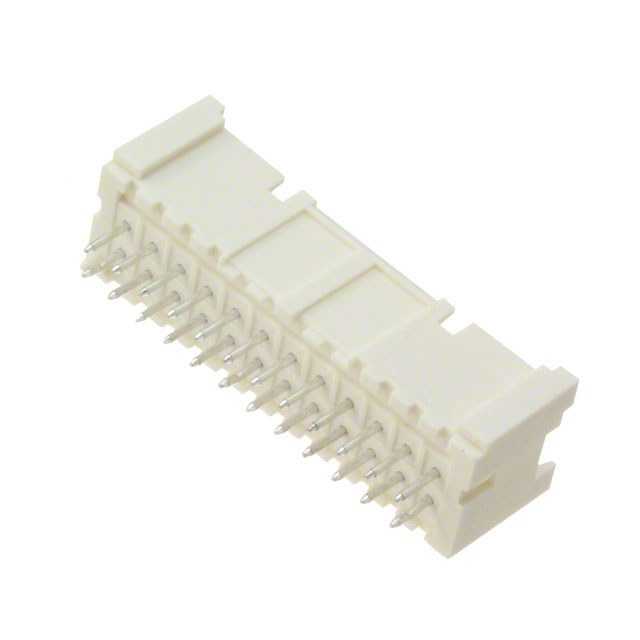

TE Connectivity Raychem Cable Protection 2-1969570-4	White	9.8 mm	0.386 in	Board Guide Glow Wire Compliant	2.5 mm	0.098 in	0.098 in	2.5 mm	Shrouded - 4 Wall	24	2	Tin	Board to Cable/Wire	Header	Through Hole	Nylon Polyamide (PA)	0.134 in	3.4 mm	4.2 A	Circular	General Purpose Industrial Lighting	Brass	UL94 V-0	105 ░C	-55 °C	All	Friction Lock	250 VAC	Male Pin	Kinked Pin Solder

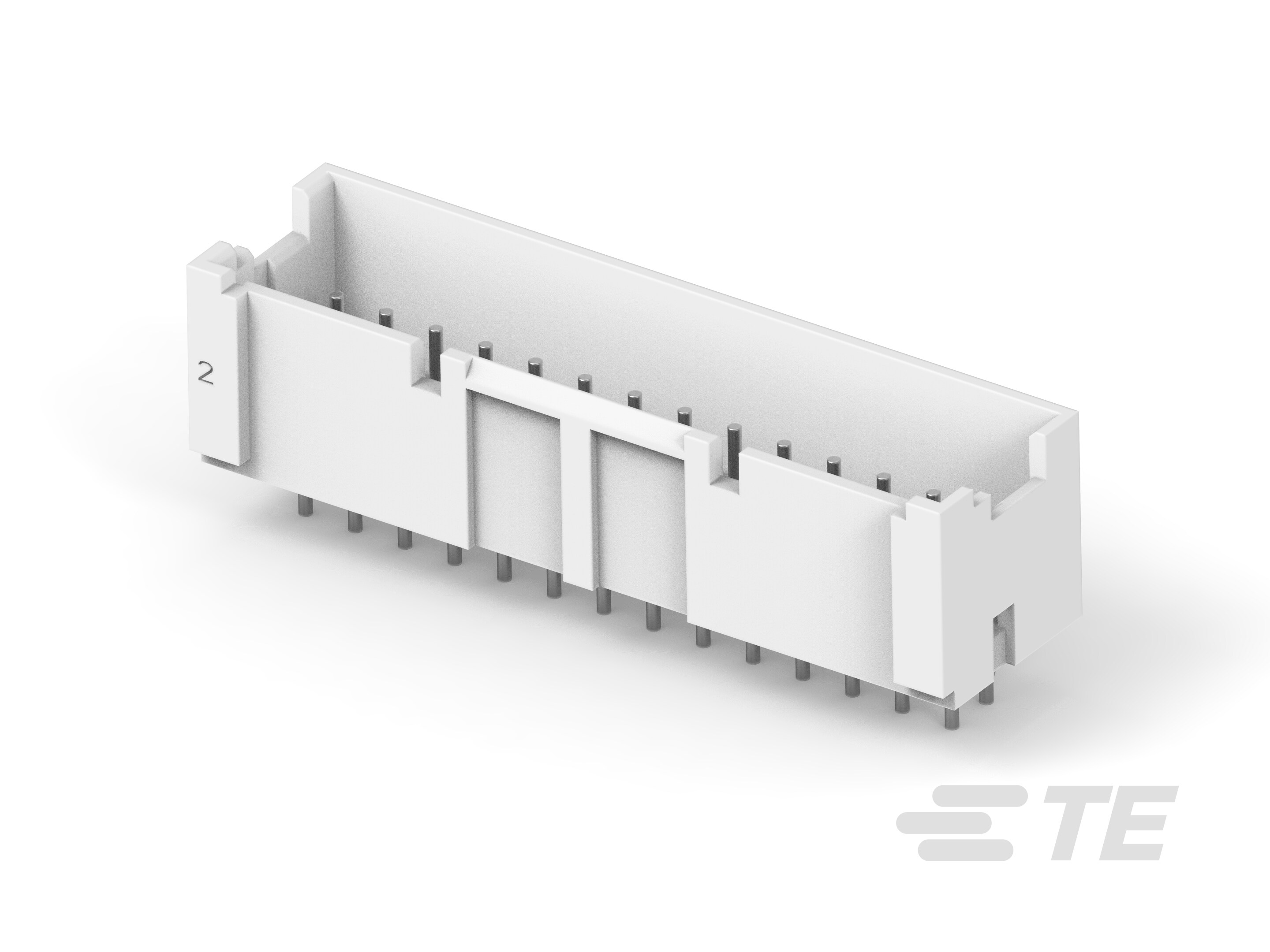

TE Connectivity Raychem Cable Protection 2-1969570-8	White	9.8 mm	0.386 in	Board Guide Glow Wire Compliant	2.5 mm	0.098 in	0.098 in	2.5 mm	Shrouded - 4 Wall	28	2	Tin	Board to Cable/Wire	Header	Through Hole	Nylon Polyamide (PA)	0.134 in	3.4 mm	4.2 A	Circular	General Purpose Industrial Lighting	Brass	UL94 V-0	105 ░C	-55 °C	All	Friction Lock	250 VAC	Male Pin	Kinked Pin Solder
TE Connectivity Raychem Cable Protection 3-1969570-6	White	9.8 mm	0.386 in	Board Guide Glow Wire Compliant	2.5 mm	0.098 in	0.098 in	2.5 mm	Shrouded - 4 Wall	36	2	Tin	Board to Cable/Wire	Header	Through Hole	Nylon Polyamide (PA)	0.134 in	3.4 mm	4.2 A	Circular	General Purpose Industrial Lighting	Brass	UL94 V-0	105 ░C	-55 °C	All	Friction Lock	250 VAC	Male Pin	Kinked Pin Solder

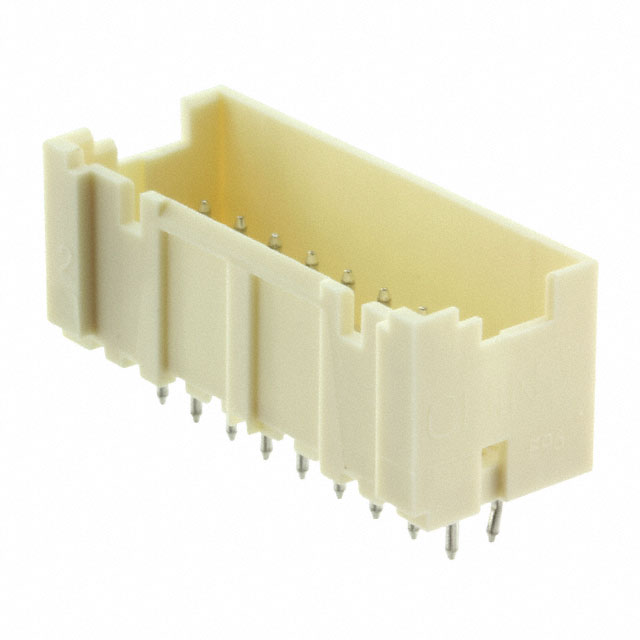

TE Connectivity Raychem Cable Protection 1-1969570-8	White	9.8 mm	0.386 in	Board Guide Glow Wire Compliant	2.5 mm	0.098 in	0.098 in	2.5 mm	Shrouded - 4 Wall	18	2	Tin	Board to Cable/Wire	Header	Through Hole	Nylon Polyamide (PA)	0.134 in	3.4 mm	4.2 A	Circular	General Purpose Industrial Lighting	Brass	UL94 V-0	105 ░C	-55 °C	All	Friction Lock	250 VAC	Male Pin	Kinked Pin Solder

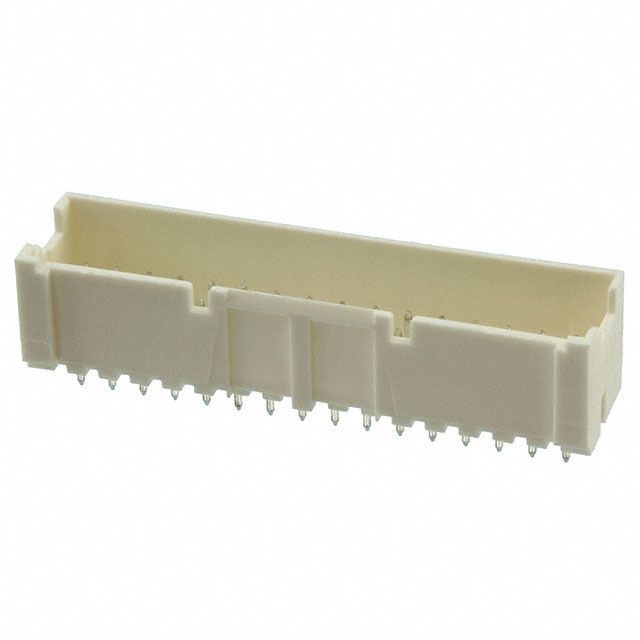

TE Connectivity Raychem Cable Protection 3-1969570-2	White	9.8 mm	0.386 in	Board Guide Glow Wire Compliant	2.5 mm	0.098 in	0.098 in	2.5 mm	Shrouded - 4 Wall		2	Tin	Board to Cable/Wire	Header	Through Hole	Nylon Polyamide (PA)	0.134 in	3.4 mm	4.2 A	Circular	General Purpose Industrial Lighting	Brass	UL94 V-0	105 ░C	-55 °C	All	Friction Lock	250 VAC	Male Pin	Kinked Pin Solder
