HCME06 Series

Catalog

HARNESS CLIP EDGE MOUNT, .24" - .47" (5. ROHS COMPLIANT: YES

Part	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Length	Length	Width [x]	Width [x]	Panel Hole Size [y]	Panel Hole Size [y]	Panel Hole Size [x]	Panel Hole Size [x]	Color	Mounting Type	Features	Opening Size [Min]	Opening Size [Max]	Opening Size [Min]	Opening Size [Max]	Type Attributes	Material	Type	Height [z]	Height [z]	Panel Hole Size
Panduit Corp HCME06A12-M130	0.024 in	1.2 mm	0.047 in	0.6 mm	0.709 in	18 mm	0.551 in	14 mm	0.433 "	11 mm	4 mm	0.157 "	Black	Clip On Edge Mount	Heat Stabilized	0.236 in	12 mm	6 mm	0.472 in	Webbed	Polyacetal (POM)	Clip Wire Saddle

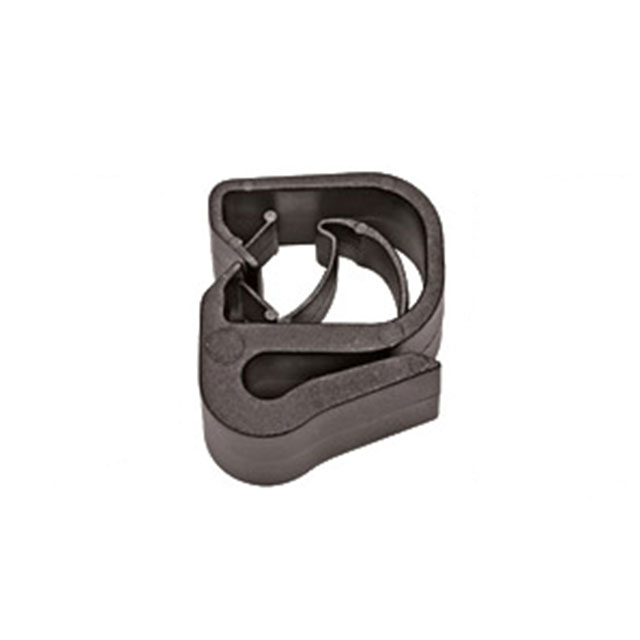

Panduit Corp HCME06Y12-M30	0.031 "	3.99 mm	0.157 in	0.79 mm	0.925 "	23.5 mm	0.394 "	10 mm	0.315 in	8 mm	3.5 mm	0.138 in	Black	Clip On Edge Mount	Heat Stabilized	0.315 "	12 mm	8 mm	0.472 in	Webbed	Polyamide (PA66) Nylon 6/6	Clip Wire Saddle	19.2 mm	0.756 "	Rectangular
