1969818 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

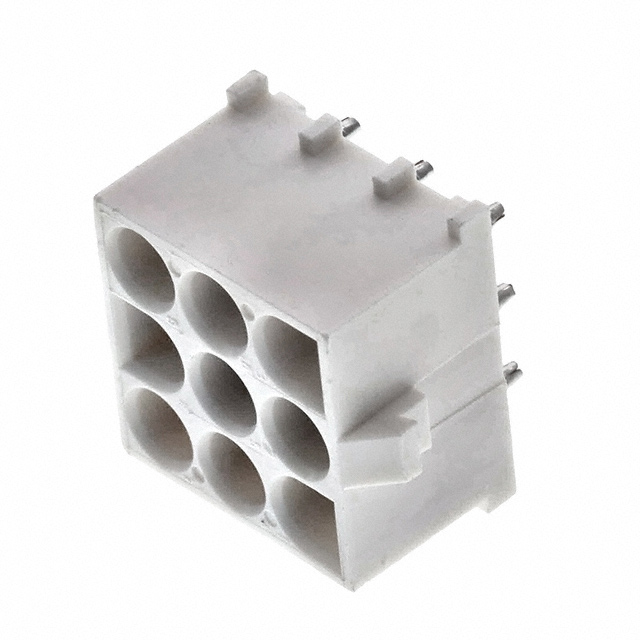

CONN HEADER VERT 9POS 6.35MM
| Part | Shrouding | Mounting Type | Contact Type | Row Spacing - Mating | Row Spacing - Mating | Insulation Material | Insulation Color | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Number of Rows | Number of Positions Loaded | Termination | Features | Connector Type | Applications | Contact Material | Fastening Type | Contact Length - Post | Contact Length - Post | Contact Finish - Post | Number of Positions | Contact Shape | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Shrouded - 4 Wall | Through Hole | Male Pin | 0.25 in | 6.35 mm | Nylon Polyamide (PA) | Natural | 0.55 in | 13.97 mm | 6.35 mm | 0.25 in | UL94 V-0 | 3 | All | Solder | Glow Wire Compliant | Header | General Purpose | Phosphor Bronze | Locking Ramp | 3.94 mm | 0.155 " | Tin | 9 | Circular | Board to Cable/Wire |
