5583201 Series

Manufacturer: DIALIGHT

Catalog

LED PMI SNAP-IN Y/G BI-CLR .156"

Part	Current [custom]	Current [custom]	Panel Cutout Shape	Lamp Color	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Lens Style	Voltage	Viewing Angle	Lens Size	Lens Size	Type	Wavelength - Peak	Millicandela Rating	Termination Style
DIALIGHT 5583201003F	30 mA	20 mA	Round	Green Yellow	0.16 in	4.06 mm	Round with Domed Top	2.1 V 2.1 V	80 °	3 mm	T-1	LED	565 nm 585 nm	5.8 mcd 12.3 mcd
DIALIGHT 5583201007F	30 mA	20 mA	Round	Green Yellow	0.16 in	4.06 mm	Round with Domed Top	2.1 V 2.1 V	80 °	3 mm	T-1	LED	565 nm 585 nm	5.8 mcd 12.3 mcd	Wire Leads - 14 in (355.60mm)

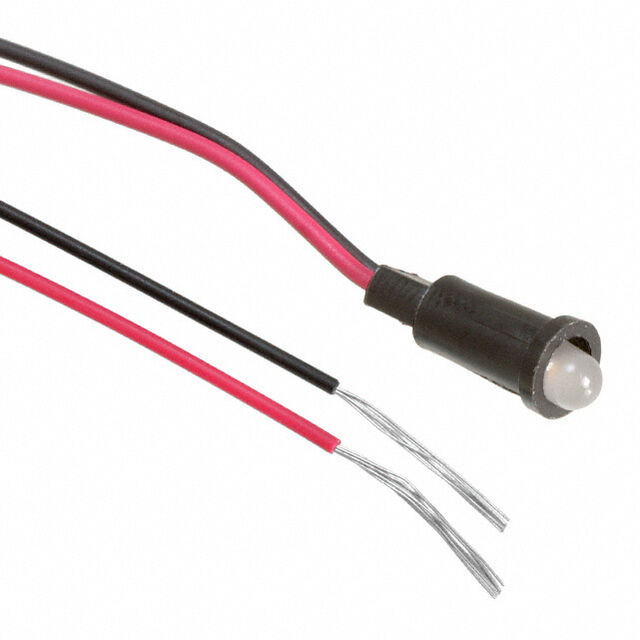

DIALIGHT 5583201027F	30 mA	20 mA	Round	Green Yellow	0.16 in	4.06 mm	Round with Domed Top	2.1 V 2.1 V	80 °	3 mm	T-1	LED	565 nm 585 nm	5.8 mcd 12.3 mcd	Wire Leads - 14 in (355.60mm)

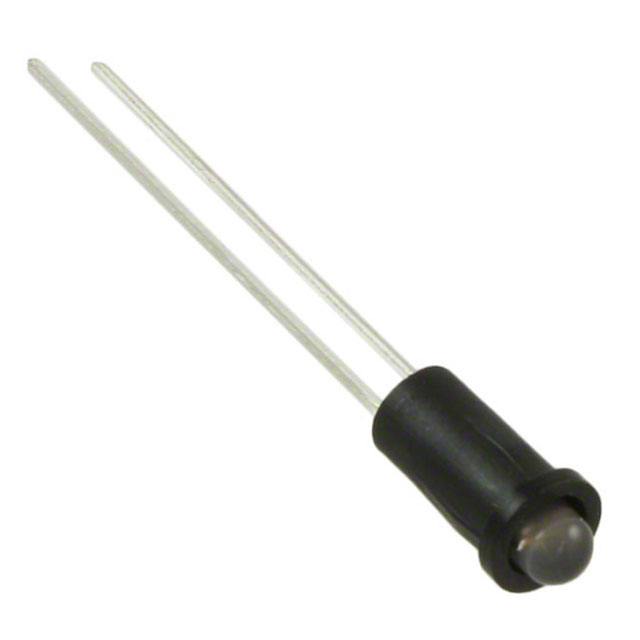

DIALIGHT 5583201001F	30 mA	20 mA	Round	Green Yellow	0.16 in	4.06 mm	Round with Domed Top	2.1 V 2.1 V	80 °	3 mm	T-1	LED	565 nm 585 nm	5.8 mcd 12.3 mcd
