0945-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

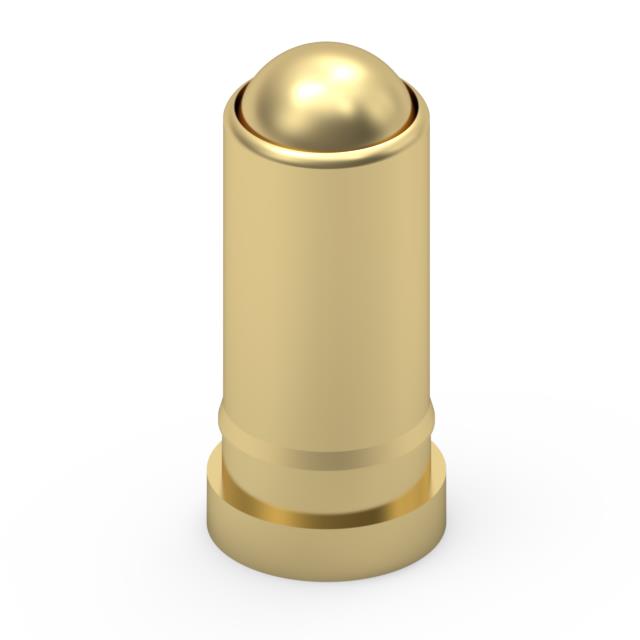

STANDARD SPRING LOADED PIN
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Minimum Working Height [z] | Minimum Working Height [z] | Mating Cycles | Contact Finish | Operating Force - Mid Compression | Contact Material | Plunger Size [diameter] | Plunger Size [diameter] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Operating Force - Initial | Maximum Working Height [Max] | Maximum Working Height [Max] | Current Rating (Amps) | Pad Layout Dimension | Pad Layout Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 6 mm | 0.236 in | 1000000 | Gold | 55 gf | Brass Alloy | 0.091 in | 2.31 mm | 20 µin | 0.51 µm | Surface Mount | 30 gf | 0.266 in | 6.76 mm | 7.2 A | 0.118 in | 3 mm |
