PME261 Series

Manufacturer: KEMET

Catalog

FILM CAPACITORS 1000V 0.01UF 10% LS=15.2MM

Part	Lead Spacing	Lead Spacing	Tolerance	Dielectric Material	Capacitance	Voltage Rating - AC	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage Rating - DC	Voltage Rating - DC	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Termination	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)
KEMET PME261JB5100KR30	0.598 in	15.2 mm	10 %	Metallized Paper	10000 pF	500 V	0.413 "	10.5 mm	1 kV	1 kVDC	Radial	-40 C	100 °C	General Purpose	5.2 mm	18.5 mm	0.728 in	0.205 "	Through Hole	PC Pins
KEMET PME261EC6100KR30	0.799 in	20.3 mm	10 %	Metallized Paper	100000 pF	300 V	0.551 in	14 mm			Radial	-40 C	100 °C	General Purpose	7.6 mm	0.945 "			Through Hole	PC Pins	24 mm	0.299 in
KEMET PME261KE6470KR30	1 in	25.4 mm	10 %	Metallized Paper	0.47 µF	220 V				400 V	Radial	-40 C	100 °C	General Purpose	17.3 mm	1.201 in			Through Hole	PC Pins	30.5 mm	0.681 in	10.6 mm	0.417 in
KEMET PME261JA4150MR30

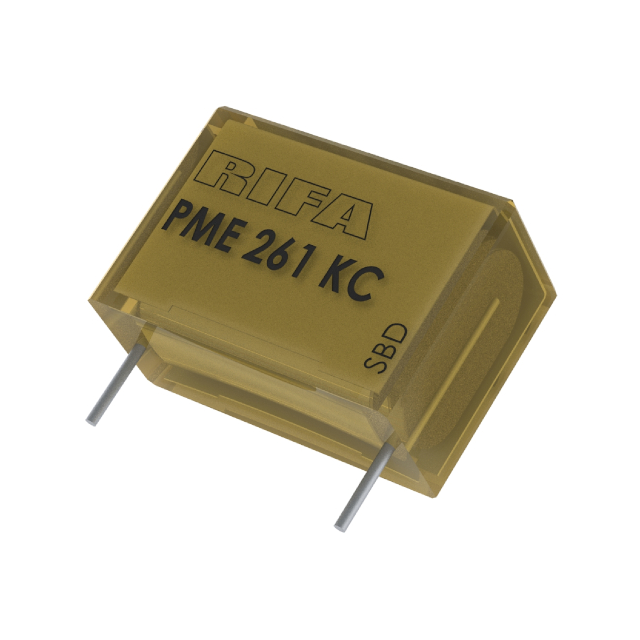

KEMET PME261EB5470KR30	0.598 in	15.2 mm	10 %	Metallized Paper		300 V					Radial	-40 C	100 °C	General Purpose		0.728 in 18.5 mm			Through Hole	PC Pins		0.287 in 7.3 mm	13 mm	0.512 "

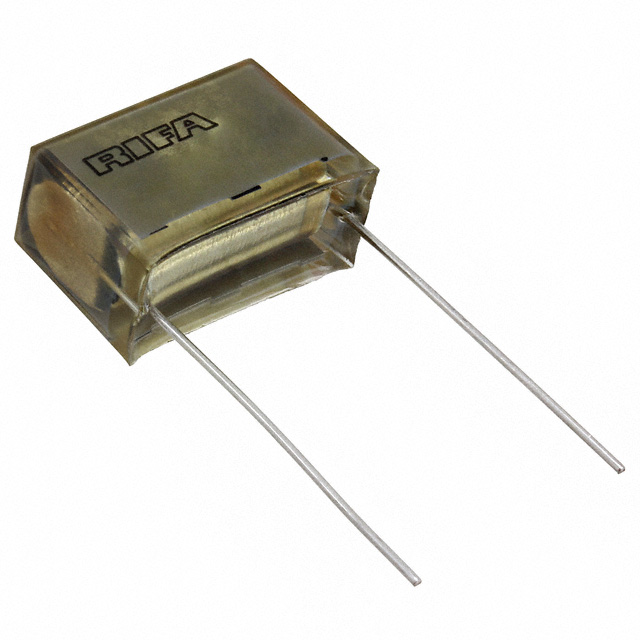

KEMET PME261JC6100KR30	0.799 in	20.3 mm	10 %	Metallized Paper	100000 pF	500 V			1 kV	1 kVDC	Radial	-40 C	100 °C	General Purpose		24 mm	0.945 "	0.445 "	Through Hole	PC Pins		11.3 mm	16.5 mm	0.65 in
KEMET PME261KB6100KR30	0.598 in	15.2 mm	10 %	Metallized Paper	100000 pF	220 V				400 V	Radial	-40 C	100 °C	General Purpose		0.728 in 18.5 mm			Through Hole	PC Pins		0.287 in 7.3 mm	13 mm	0.512 "

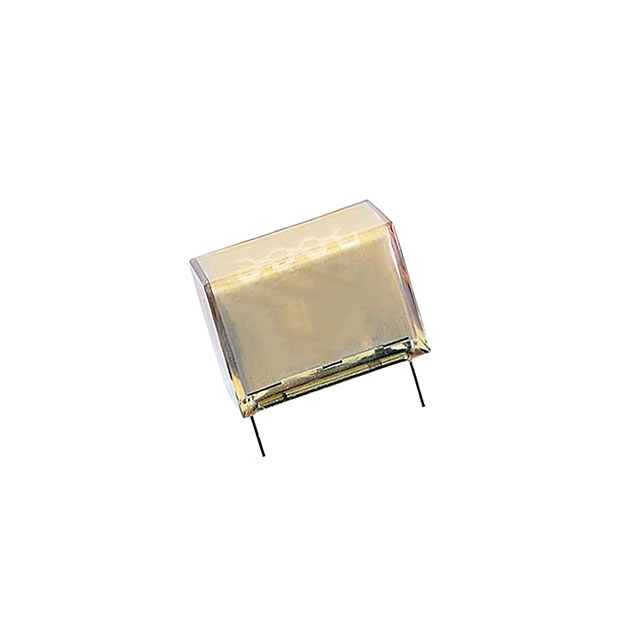

KEMET PME261JB5330KR30	0.598 in	15.2 mm	10 %	Metallized Paper	0.033 çF	500 V	0.532 "		1 kV	1 kVDC	Radial	-40 C	100 °C	General Purpose		18.5 mm	0.728 in	0.307 "	Through Hole	PC Pins		7.8 mm			13.5 mm
KEMET PME261JC5470KR30	0.799 in	20.3 mm	10 %	Metallized Paper		500 V	0.551 in	14 mm	1 kV	1 kVDC	Radial	-40 C	100 °C	General Purpose	7.6 mm	0.945 "			Through Hole	PC Pins	24 mm	0.299 in
KEMET PME261KA5100KR19T0			10 %	Metallized Paper	10000 pF	220 V		7.5 mm		400 V	Radial	-40 C	100 °C	General Purpose		13.5 mm	0.531 in	0.154 in	Through Hole	PC Pins		3.9 mm		0.295 in
