PTC24 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 48POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Contact Length - Post [custom]	Contact Length - Post [custom]	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Contact Shape	Contact Type	Current Rating (Amps)	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Number of Rows [custom]	Contact Material	Connector Type	Material Flammability Rating	Number of Positions Loaded	Insulation Height	Insulation Height	Number of Positions	Mounting Type	Termination	Style	Fastening Type	Overall Contact Length	Overall Contact Length	Insulation Color	Contact Length - Post	Contact Length - Post	Number of Rows	Overall Contact Length [x]	Overall Contact Length [x]	Insulation Height [z]	Insulation Height [z]

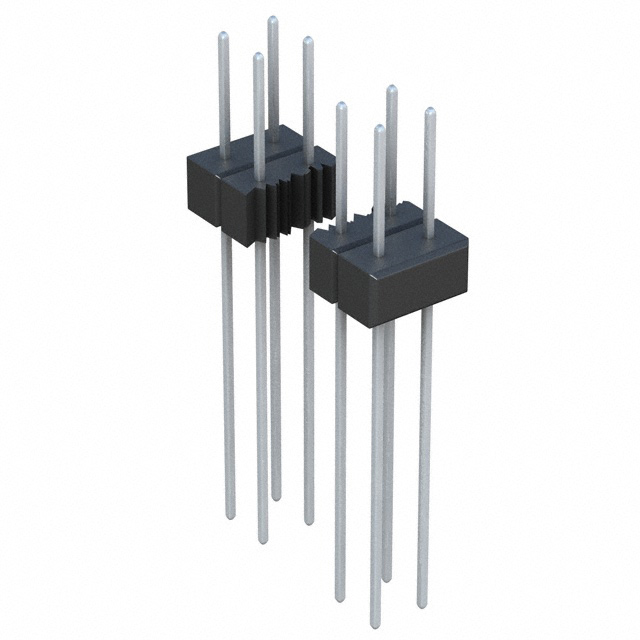

Sullins Connector Solutions PTC24DAFN	2.54 µm	100 µin	100 çin	2.54 çm	0.1 "	2.54 mm	15.75 mm	0.62 "	Polyester Thermoplastic	0.1 in	2.54 mm	Unshrouded	Square	Male Pin	3 A	Tin	0.23 in	5.84 mm	2	Copper Alloy	Header	UL94 V-0	All	0.1 in	2.54 mm	48	Through Hole	Solder	Board to Board Cable	Push-Pull	0.95 in	24.13 mm	Black
Sullins Connector Solutions PTC24SFDN	2.54 µm	100 µin	100 çin	2.54 çm	0.1 "	2.54 mm			Polyester Thermoplastic			Unshrouded	Square	Male Pin	3 A	Tin	0.318 in	8.08 mm		Copper Alloy	Header	UL94 V-0	All	0.1 in	2.54 mm	24	Through Hole	Solder	Board to Board Cable	Push-Pull	0.838 in	21.29 mm	Black	10.67 mm	0.42 in	1
Sullins Connector Solutions PTC24SAEN	2.54 µm	100 µin	100 çin	2.54 çm	0.1 "	2.54 mm			Polyester Thermoplastic			Unshrouded	Square	Male Pin	3 A	Tin	0.23 in	5.84 mm		Copper Alloy	Header	UL94 V-0	All	0.1 in	2.54 mm	24	Through Hole	Solder	Board to Board Cable	Push-Pull	0.85 in	21.59 mm	Black	13.21 mm	0.52 in	1
Sullins Connector Solutions PTC24SBCN	2.54 µm	100 µin	100 çin	2.54 çm	0.1 "	2.54 mm			Polyester Thermoplastic			Unshrouded	Square	Male Pin	3 A	Tin	0.23 in	5.84 mm		Copper Alloy	Header	UL94 V-0	All	0.14 in	3.56 mm	24	Right Angle Through Hole	Solder	Board to Board Cable	Push-Pull			Black	8.13 mm	0.32 in	1
Sullins Connector Solutions PTC24SFAN	2.54 µm	100 µin	100 çin	2.54 çm	0.1 "	2.54 mm			Polyester Thermoplastic			Unshrouded	Square	Male Pin	3 A	Tin	0.318 in	8.08 mm		Copper Alloy	Header	UL94 V-0	All	0.1 in	2.54 mm	24	Through Hole	Solder	Board to Board Cable	Push-Pull			Black	3.05 mm	0.12 in	1	13.67 mm	0.538 in

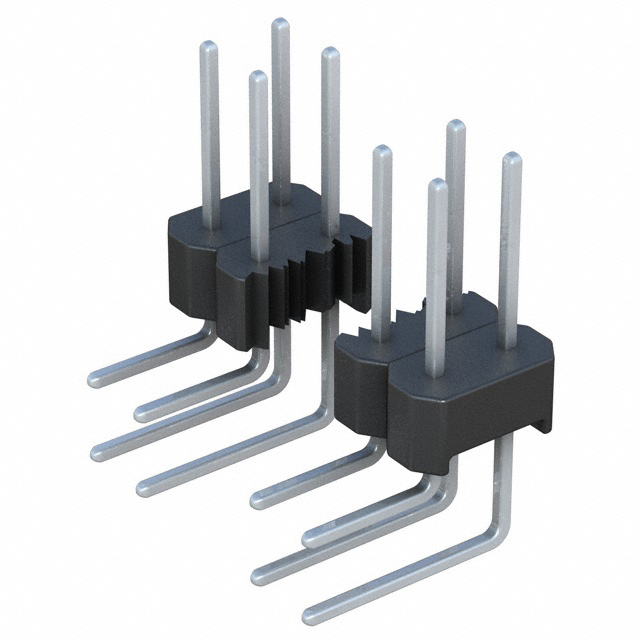

Sullins Connector Solutions PTC24DBBN	2.54 µm	100 µin	100 çin	2.54 çm	0.1 "	2.54 mm			Polyester Thermoplastic	0.1 in	2.54 mm	Unshrouded	Square	Male Pin	3 A	Tin	0.23 in	5.84 mm	2	Copper Alloy	Header	UL94 V-0	All			48	Right Angle Through Hole	Solder	Board to Board Cable	Push-Pull			Black	5.84 mm	0.23 "				6.1 mm	0.24 in
Sullins Connector Solutions PTC24SAAN	2.54 µm	100 µin	100 çin	2.54 çm	0.1 "	2.54 mm			Polyester Thermoplastic			Unshrouded	Square	Male Pin	3 A	Tin	0.23 in	5.84 mm		Copper Alloy	Header	UL94 V-0	All	0.1 in	2.54 mm	24	Through Hole	Solder	Board to Board Cable	Push-Pull			Black	3.05 mm	0.12 in	1	11.43 mm	0.45 in
Sullins Connector Solutions PTC24SBAN	2.54 µm	100 µin	100 çin	2.54 çm	0.1 "	2.54 mm			Polyester Thermoplastic			Unshrouded	Square	Male Pin	3 A	Tin	0.23 in	5.84 mm		Copper Alloy	Header	UL94 V-0	All	0.14 in	3.56 mm	24	Right Angle Through Hole	Solder	Board to Board Cable	Push-Pull			Black	3.05 mm	0.12 in	1
Sullins Connector Solutions PTC24SBEN	2.54 µm	100 µin	100 çin	2.54 çm	0.1 "	2.54 mm			Polyester Thermoplastic			Unshrouded	Square	Male Pin	3 A	Tin	0.23 in	5.84 mm		Copper Alloy	Header	UL94 V-0	All	0.14 in	3.56 mm	24	Right Angle Through Hole	Solder	Board to Board Cable	Push-Pull			Black	13.21 mm	0.52 in	1

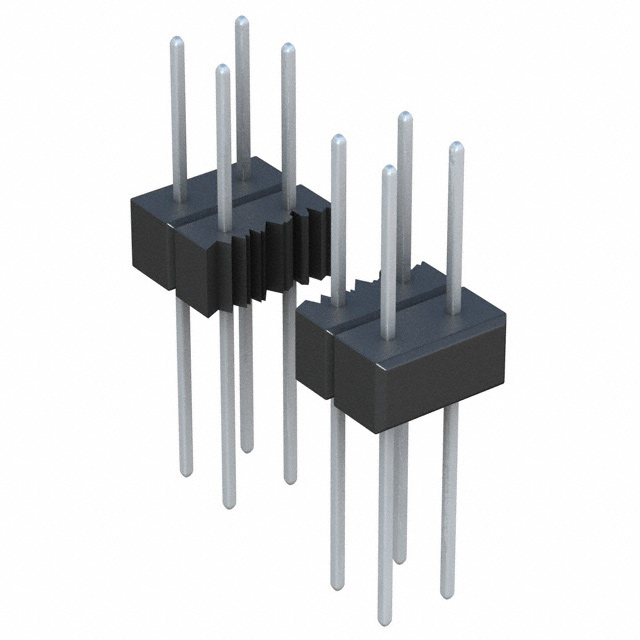

Sullins Connector Solutions PTC24DACN	2.54 µm	100 µin	100 çin	2.54 çm	0.1 "	2.54 mm			Polyester Thermoplastic	0.1 in	2.54 mm	Unshrouded	Square	Male Pin	3 A	Tin	0.23 in	5.84 mm	2	Copper Alloy	Header	UL94 V-0	All	0.1 in	2.54 mm	48	Through Hole	Solder	Board to Board Cable	Push-Pull	0.65 in	16.51 mm	Black	8.13 mm	0.32 in
