JP75 Series

Catalog

CABLE MOUNTING & ACCESSORIES J-PRO CABLE SUPPORT SYSTEM UNDER FLOOR P

Part	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Width [y]	Width [y]	Mounting Type	Height [z]	Height [z]	Type Attributes	Color	Opening Size	Opening Size	Material	Features	Type	Screw Size	Screw Size	Length	Length [x]	Length	Height	Height	Length [x]

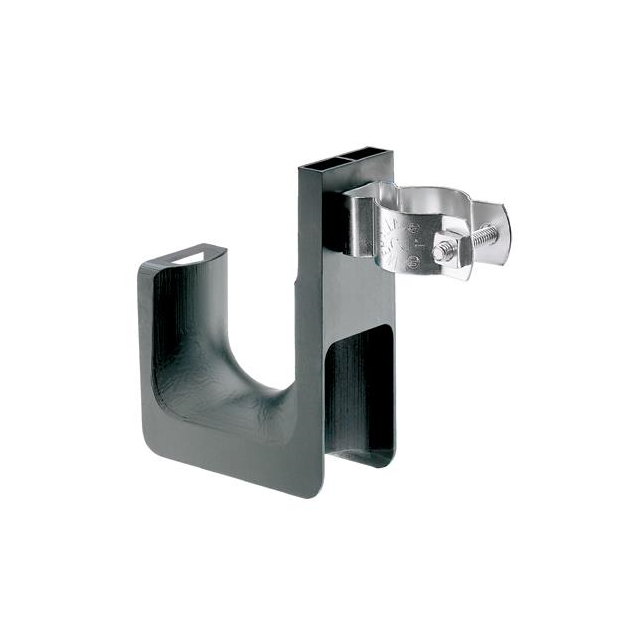

Panduit Corp JP75UF100-L20	58.67 mm	2.31 in	29.46 mm	1.16 in	Fastener	60.45 mm	2.38 "	Lay-In	Black	19.05 mm	0.75 "	Nylon 6/6 Polyamide (PA66) Steel	Slotted for Tak-Ty® Cable	Support J-Hook

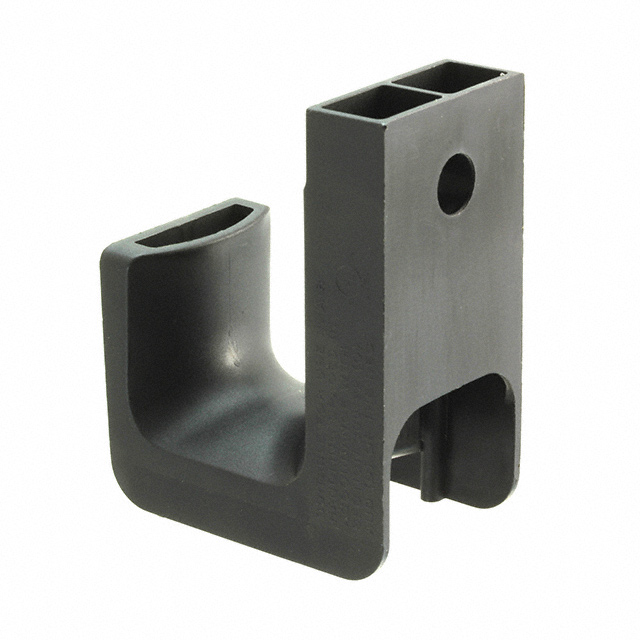

Panduit Corp JP75W-L20			29.46 mm	1.16 in	Fastener Wall Mount	60.45 mm	2.38 "		Black	19.05 mm	0.75 "	Polyamide (PA66) Nylon 6/6	Slotted for Tak-Ty® Cable	Support J-Hook	0.25 in	M6	45.72 mm	1.8 in
Panduit Corp JP75HBC75RB-L20			29.46 mm	1.16 in	Beam Mount Hammer On	103.63 mm	4.08 in		Black	19.05 mm	0.75 "	Nylon 6/6 Polyamide (PA66) Steel	360° Rotation Slotted for Tak-Ty® Cable	Support J-Hook			73.41 mm		2.89 in
Panduit Corp JP75SBC50RB-L2			29.46 mm	1.16 in	Beam Mount Fastener				Red	19.05 mm	0.75 "	Nylon 6/6 Polyamide (PA66) Steel	360° Rotation Slotted for Tak-Ty® Cable	Support J-Hook				3.24 in		4.638 in	117.81 mm	82.3 mm

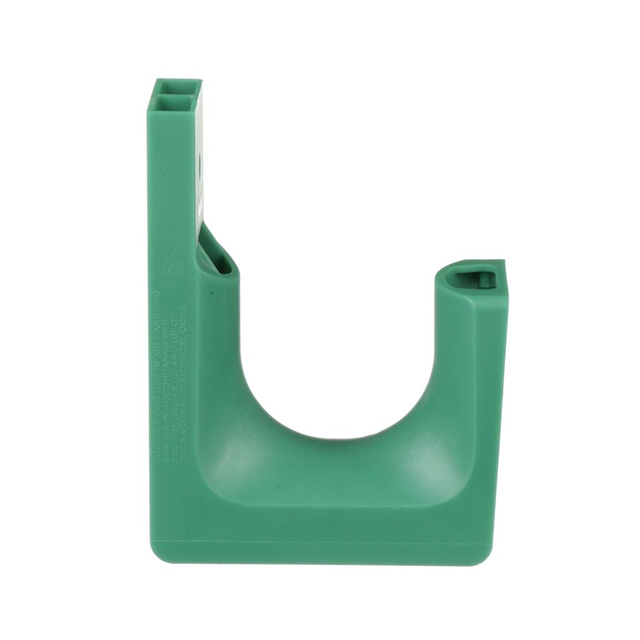

Panduit Corp JP75W-L5			29.46 mm	1.16 in	Fastener Wall Mount	60.45 mm	2.38 "		Green	19.05 mm	0.75 "	Polyamide (PA66) Nylon 6/6	Slotted for Tak-Ty® Cable	Support J-Hook	0.25 in	M6	45.72 mm	1.8 in

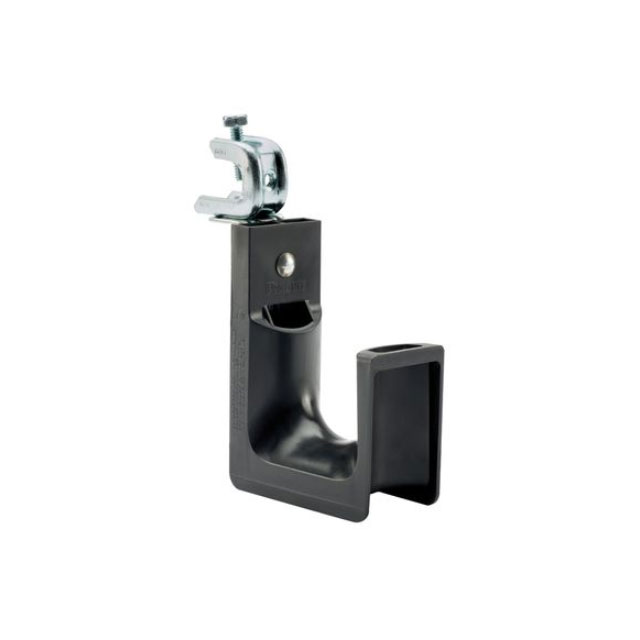

Panduit Corp JP75SBC50RB-L20			29.46 mm	1.16 in	Beam Mount Fastener				Black	19.05 mm	0.75 "	Nylon 6/6 Polyamide (PA66) Steel	360° Rotation Slotted for Tak-Ty® Cable	Support J-Hook				3.24 in		4.638 in	117.81 mm	82.3 mm

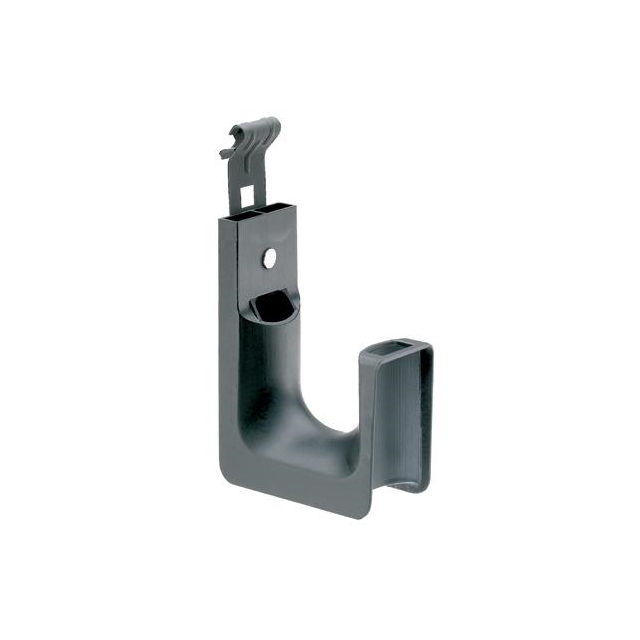

Panduit Corp JP75ZP-L20			29.46 mm	1.16 in	Clip On Purlin Mount				Black	19.05 mm	0.75 "	Nylon 6/6 Polyamide (PA66) Steel	Slotted for Tak-Ty® Cable	Support J-Hook				2.15 "		4.55 "	115.57 mm	54.6 mm

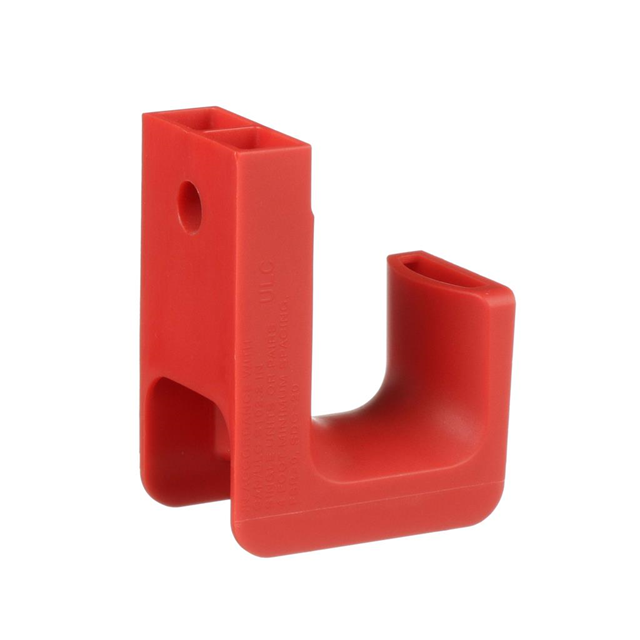

Panduit Corp JP75W-L2			29.46 mm	1.16 in	Fastener Wall Mount	60.45 mm	2.38 "		Red	19.05 mm	0.75 "	Polyamide (PA66) Nylon 6/6	Slotted for Tak-Ty® Cable	Support J-Hook	0.25 in	M6	45.72 mm	1.8 in

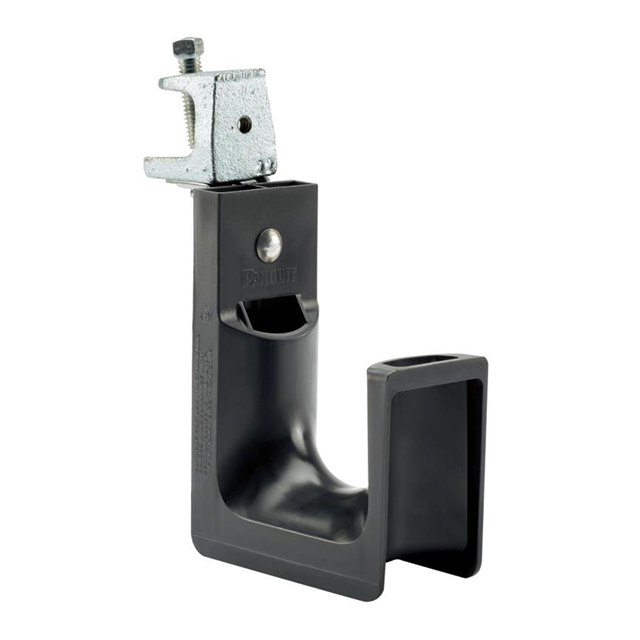

Panduit Corp JP75SBC87RB-L20			29.46 mm	1.16 in	Beam Mount Fastener				Black	19.05 mm	0.75 "	Nylon 6/6 Polyamide (PA66) Steel	360° Rotation Slotted for Tak-Ty® Cable	Support J-Hook			79.35 mm		3.124 in	5.01 "	127.25 mm
Panduit Corp JP75DW-L6			29.46 mm	1.16 in	Clip On Rod Mount	105.16 mm	4.14 in		Blue	19.05 mm	0.75 "	Nylon 6/6 Polyamide (PA66) Steel	Slotted for Tak-Ty® Cable	Support J-Hook			47.75 mm		1.88 in
