RPS-120 Series

Catalog

AC/DC CONVERTER 48V 120W

Part	Mounting Type	Features	Applications	Number of Outputs	Efficiency	Type	Voltage - Output 1	Approval Agency	Current - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Isolation	Power (Watts)

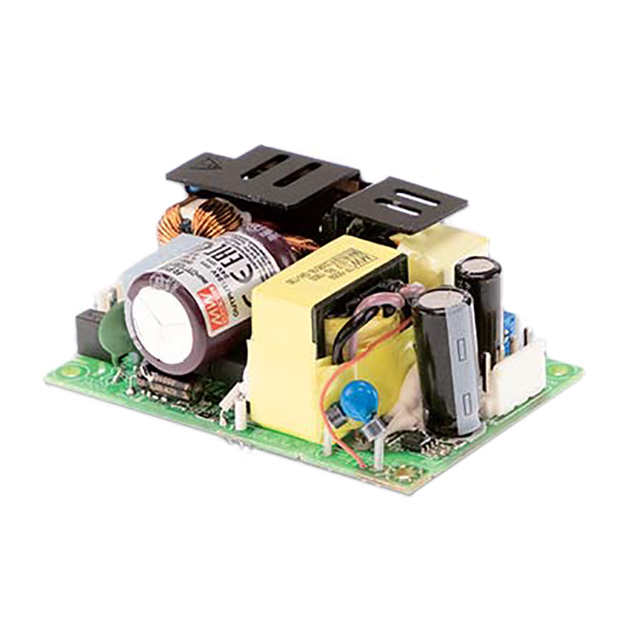

MEAN WELL USA Inc. RPS-120S-48	Chassis Mount	Adjustable Output PFC Universal Input	Medical	1	93.5 %	Open Frame	48 V	CB CE cURus EAC TUV	2.5 A	85 °C	-30 °C	80 VAC 113 VDC	264 VAC 370 VDC	120 W 150 W	28 mm	76.2 mm	3 "	50.8 mm	2 in	1.1 in	4000 V

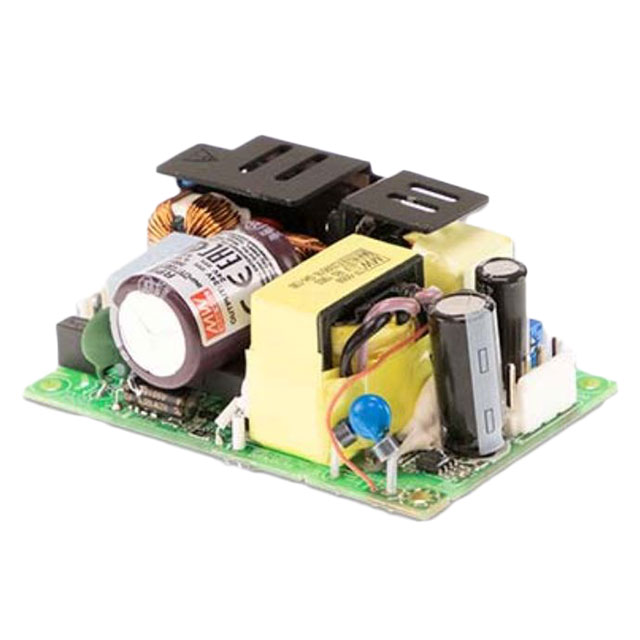

MEAN WELL USA Inc. RPS-120S-12	Chassis Mount	Adjustable Output PFC Universal Input	Medical	1	91 %	Open Frame	12 V	CB CE cURus EAC TUV	9.5 A	85 °C	-30 °C	80 VAC 113 VDC	264 VAC 370 VDC	114 W 142 W	28 mm	76.2 mm	3 "	50.8 mm	2 in	1.1 in	4000 V
MEAN WELL USA Inc. RPS-120S-27	Chassis Mount	Adjustable Output PFC Universal Input	Medical	1	94 %	Open Frame	27 V	CB CE cURus EAC TUV	4.44 A	85 °C	-30 °C	80 VAC 113 VDC	264 VAC 370 VDC	120 W 150 W	28 mm	76.2 mm	3 "	50.8 mm	2 in	1.1 in	4000 V

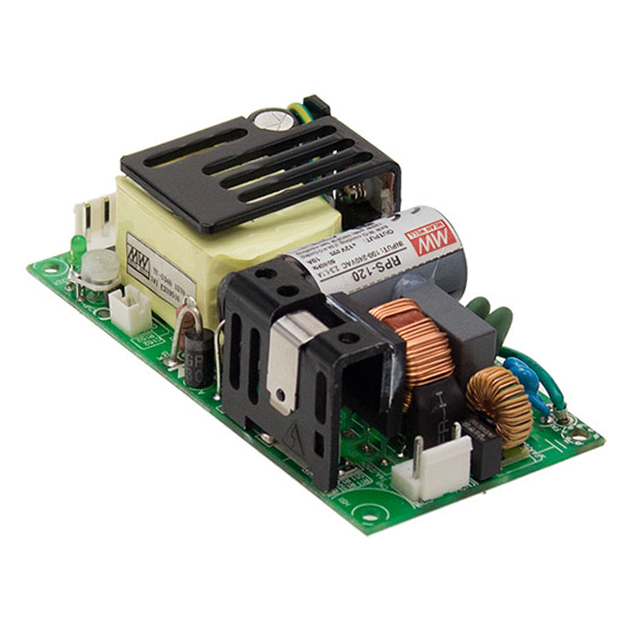

MEAN WELL USA Inc. RPS-120-15	Chassis Mount	Adjustable Output	Medical	1	89 %	Open Frame	15 V	CB CE cURus TUV	5.6 A	70 °C	-30 °C	80 VAC 113 VDC	264 VAC 370 VDC	84 W 120 W	29 mm	101.6 mm	4 "	50.8 mm	2 in	1.14 in	4000 V

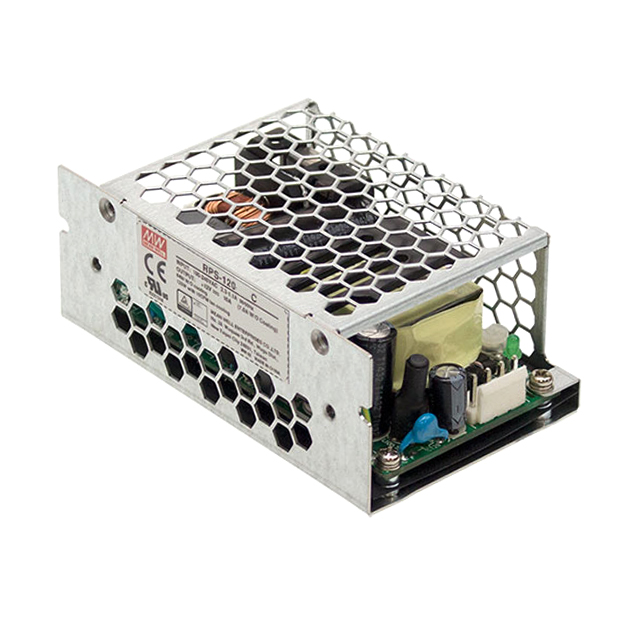

MEAN WELL USA Inc. RPS-120-24-C	Chassis Mount	Adjustable Output	Medical	1	90 %	Enclosed	24 V	CB CE cURus TUV	3.5 A	70 °C	-30 °C	80 VAC 113 VDC	264 VAC 370 VDC	84 W 120 W	39.9 mm	103.4 mm	4.07 in	62 mm	2.44 "	1.57 "	4000 V
MEAN WELL USA Inc. RPS-120-12-C	Chassis Mount	Adjustable Output	Medical	1	89 %	Enclosed	12 V	CB CE cURus TUV	7 A	70 °C	-30 °C	80 VAC 113 VDC	264 VAC 370 VDC	84 W 120 W	39.9 mm	103.4 mm	4.07 in	62 mm	2.44 "	1.57 "	4000 V
MEAN WELL USA Inc. RPS-120-48	Chassis Mount	Adjustable Output	Medical	1	91 %	Open Frame	48 V	CB CE cURus TUV	1.75 A	70 °C	-30 °C	80 VAC 113 VDC	264 VAC 370 VDC	84 W 120 W	29 mm	101.6 mm	4 "	50.8 mm	2 in	1.14 in	4000 V
MEAN WELL USA Inc. RPS-120-15-C	Chassis Mount	Adjustable Output	Medical	1	89 %	Enclosed	15 V	CB CE cURus TUV	5.6 A	70 °C	-30 °C	80 VAC 113 VDC	264 VAC 370 VDC	84 W 120 W	39.9 mm	103.4 mm	4.07 in	62 mm	2.44 "	1.57 "	4000 V
MEAN WELL USA Inc. RPS-120S-24	Chassis Mount	Adjustable Output PFC Universal Input	Medical	1	93 %	Open Frame	24 V	CB CE cURus EAC TUV	5 A	85 °C	-30 °C	80 VAC 113 VDC	264 VAC 370 VDC	120 W 150 W	28 mm	76.2 mm	3 "	50.8 mm	2 in	1.1 in	4000 V
MEAN WELL USA Inc. RPS-120-27	Chassis Mount	Adjustable Output	Medical	1	90 %	Open Frame	27 V	CB CE cURus TUV	3.15 A	70 °C	-30 °C	80 VAC 113 VDC	264 VAC 370 VDC	85 W	29 mm	101.6 mm	4 "	50.8 mm	2 in	1.14 in	4000 V	122 W
