696357 Series

Catalog

CONN QC RCPT 18-22AWG 0.250

Part	Insulation Diameter [Max]	Insulation Diameter [Min]	Color	Mounting Type	Contact Material	Tab Width [x]	Tab Width [x]	Termination	Terminal Type	Length - Overall	Length - Overall	Gender	Contact Finish	Tab Thickness	Tab Thickness	Insulation	Wire Gauge [Max]	Wire Gauge [Min]

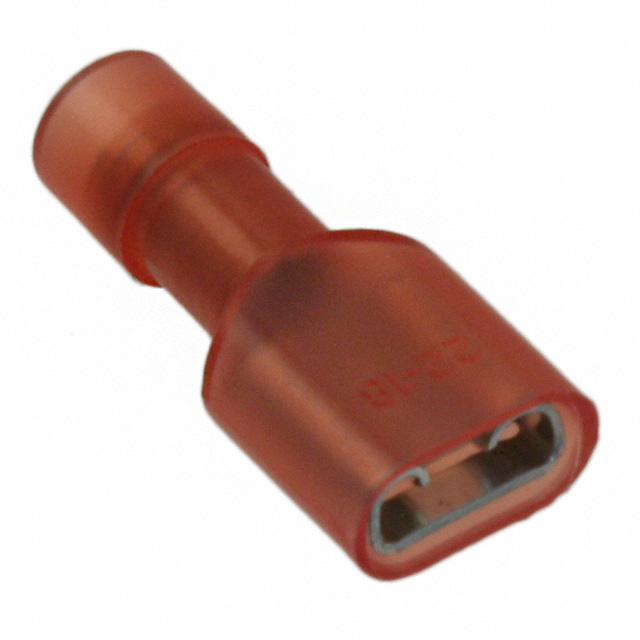

TE Connectivity AMP Connectors 696357-1	0.125 " 3.18 mm	0.09 " 2.29 mm	Red	Free Hanging (In-Line)	Brass	6.35 mm	0.25 in	Crimp	Standard	22.63 mm	0.891 in	Female	Tin	0.81 mm	0.032 in	Fully Insulated	22 AWG	17.5 AWG

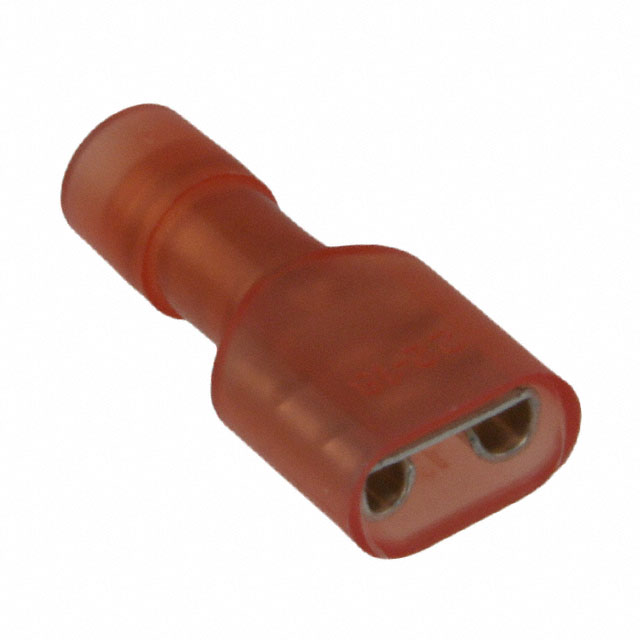

TE Connectivity AMP Connectors 8-696357-1	0.125 " 3.18 mm	0.09 " 2.29 mm	Red	Free Hanging (In-Line)	Brass	6.35 mm	0.25 in	Crimp	Standard	22.63 mm	0.891 in	Female	Tin	0.81 mm	0.032 in	Fully Insulated	22 AWG	17.5 AWG
