SRF1006 Series

Catalog

CMC10X8.7X6.5MM,120UH40%1.4A,NON-SHDSMD /TAPE & REEL - 13" REEL

Part	Height (Max) [z]	Height (Max) [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Impedance @ Frequency	Inductance @ Frequency	DC Resistance (DCR) (Max) [Max]	Filter Type	Voltage Rating - DC	Current Rating (Max) [Max]	Number of Lines	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR) (Max)
Bourns Inc. SRF1006-121Y	6.5 mm	0.256 in	0.343 in	10 mm	0.394 in	8.7 mm	Surface Mount	200 Ohms	100 kHz 120 µH	25 mOhm	Signal Line	50 VDC	1.4 A	2	Horizontal 4 PC Pad	-40 C	105 ░C

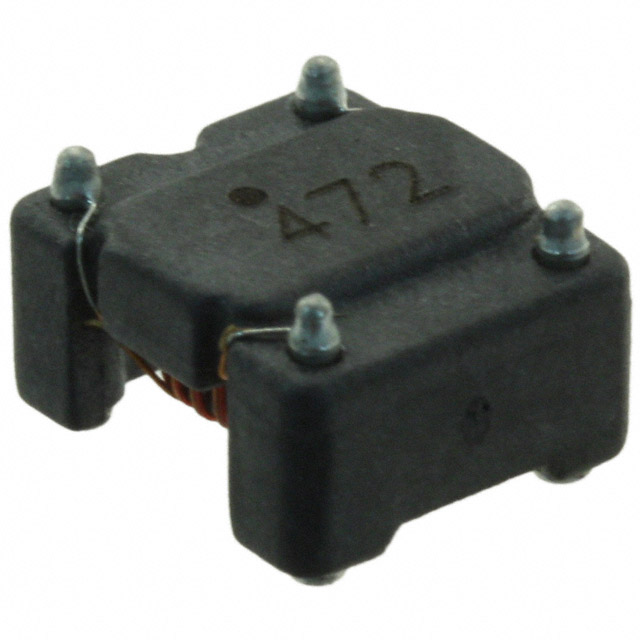

Bourns Inc. SRF1006-472Y	6.5 mm	0.256 in	0.343 in	10 mm	0.394 in	8.7 mm	Surface Mount	6.2 kOhms	4700 µH		Signal Line	50 VDC	250 mA	2	Horizontal 4 PC Pad	-40 C	105 ░C	1 Ohm
Bourns Inc. SRF1006-502Y	6.5 mm	0.256 in	0.343 in	10 mm	0.394 in	8.7 mm	Surface Mount	5 kOhms	5 mH 100 kHz		Signal Line	50 VDC	250 mA	2	Horizontal 4 PC Pad	-40 C	105 ░C	620 mOhm
Bourns Inc. SRF1006-251Y	6.5 mm	0.256 in	0.343 in	10 mm	0.394 in	8.7 mm	Surface Mount	400 Ohms	250 µH	35 mOhm	Signal Line	50 VDC	1.19 A	2	Horizontal 4 PC Pad	-40 C	105 ░C
Bourns Inc. SRF1006-102Y	6.5 mm	0.256 in	0.343 in	10 mm	0.394 in	8.7 mm	Surface Mount	1.4 kOhms	1 mH		Signal Line	50 VDC	520 mA	2	Horizontal 4 PC Pad	-40 C	105 ░C	180 mOhm
