282847 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

TERMI-BLOK PCB MOUNT 35 9P.5

Part	Pitch [x]	Pitch [x]	Wire Gauge [Max]	Wire Gauge [Min]	Screw Material - Plating	Current	Mating Orientation	Mating Orientation	Clamp Material - Plating	Voltage	Number of Levels	Wire Termination	Features	Torque - Screw	Torque - Screw	Color	Mounting Type	Positions Per Level	Screw Thread	Contact Material - Plating [custom]

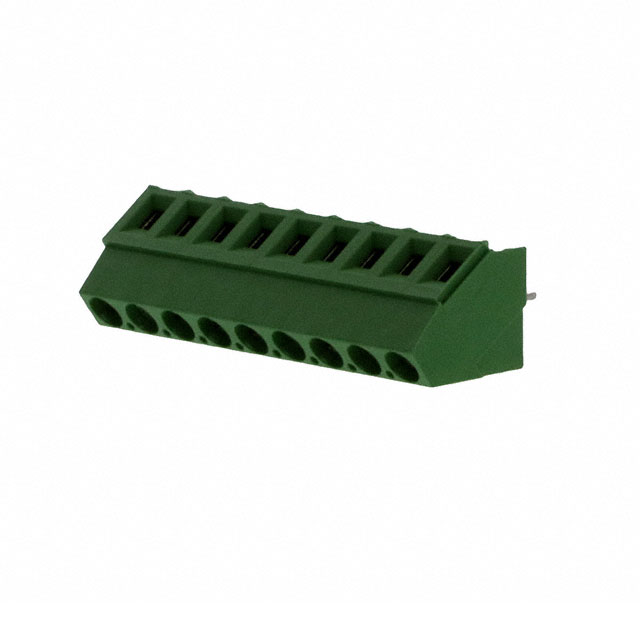

TE Connectivity Raychem Cable Protection 282847-9	0.2 in	5.08 mm	30 AWG	12 AWG	Brass - Nickel Plated	17.5 A	35 °	145 °	Brass - Nickel Plated	300 V	1	Screw - Rising Cage Clamp	Interlocking (Side)	0.79 Nm	7 Lb-In	Green	Through Hole	9	M3	Brass - Tin Plated

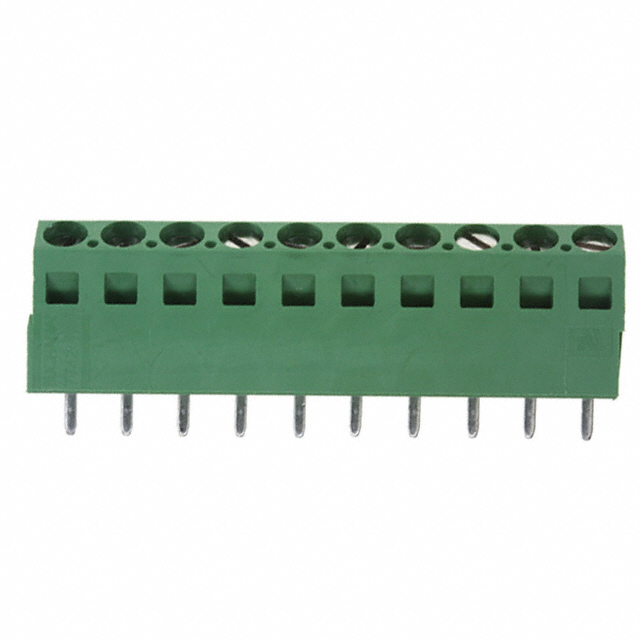

TE Connectivity Raychem Cable Protection 1-282847-0	0.2 in	5.08 mm	30 AWG	12 AWG	Brass - Nickel Plated	17.5 A	35 °	145 °	Brass - Nickel Plated	300 V	1	Screw - Rising Cage Clamp	Interlocking (Side)	0.79 Nm	7 Lb-In	Green	Through Hole	10	M3	Brass - Tin Plated

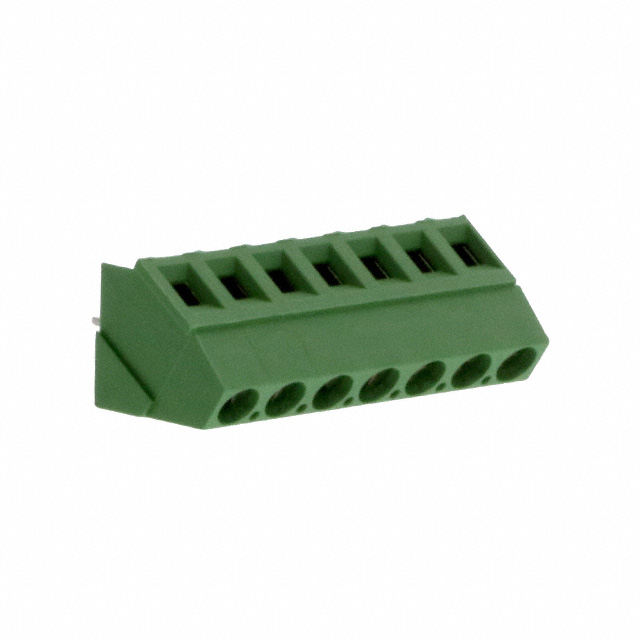

TE Connectivity Raychem Cable Protection 282847-7	0.2 in	5.08 mm	30 AWG	12 AWG	Brass - Nickel Plated	17.5 A	35 °	145 °	Brass - Nickel Plated	300 V	1	Screw - Rising Cage Clamp	Interlocking (Side)	0.79 Nm	7 Lb-In	Green	Through Hole	7	M3	Brass - Tin Plated

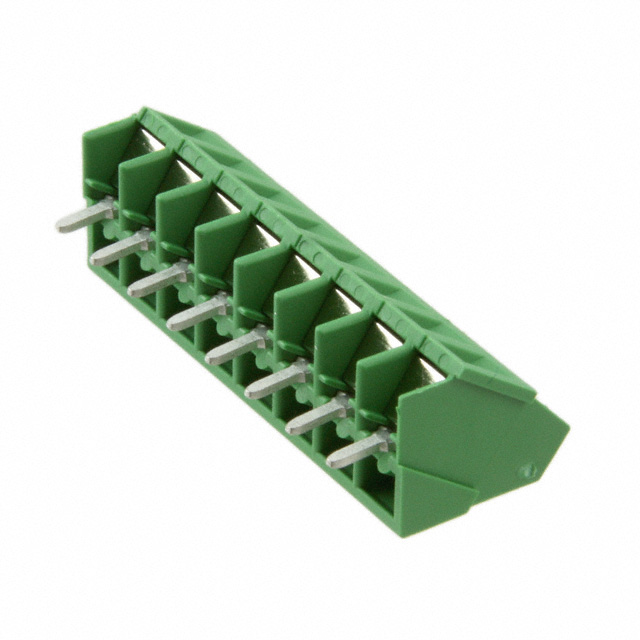

TE Connectivity Raychem Cable Protection 282847-8	0.2 in	5.08 mm	30 AWG	12 AWG	Brass - Nickel Plated	17.5 A	35 °	145 °	Brass - Nickel Plated	300 V	1	Screw - Rising Cage Clamp	Interlocking (Side)	0.79 Nm	7 Lb-In	Green	Through Hole	8	M3	Brass - Tin Plated
TE Connectivity Raychem Cable Protection 2-282847-5	0.2 in	5.08 mm	30 AWG	12 AWG	Brass - Nickel Plated	17.5 A	35 °	145 °	Brass - Nickel Plated	300 V	1	Screw - Rising Cage Clamp	Interlocking (Side) Positions Stamped	0.79 Nm	7 Lb-In	Green	Through Hole	3	M3	Brass - Tin Plated
