48.52.8 Series
Manufacturer: Finder Relays, Inc.
Beta
⌘K

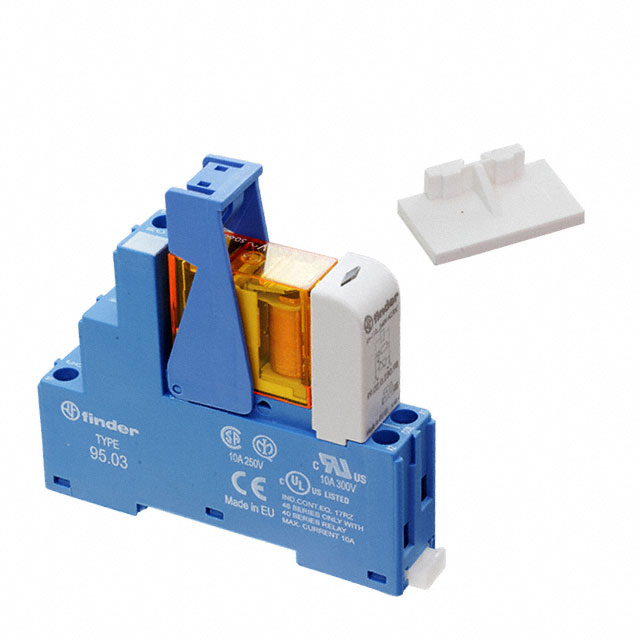

RELAY GEN PURPOSE DPDT 8A 24V
| Part | Release Time | Contact Material | Termination Style | Contact Form | Features | Coil Type | Coil Voltage | Operate Time | Contact Rating (Current) | Must Release Voltage | Switching Voltage [Max] | Mounting Type | Must Operate Voltage | Relay Type | Coil Current | Load - Max Switching | Operating Temperature [Max] | Operating Temperature [Min] | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Finder Relays, Inc. | 4 ms | Silver Nickel (AgNi) | Screw Terminal | DPDT (2 Form C) | Lighted Indicator Varistor | Non Latching | 24 VAC | 7 ms | 8 A | 4.8 VAC | 400 VAC | DIN Rail | 19.2 VAC | General Purpose | 46 mA | 3200 VA | 70 °C | -40 C | |
 Finder Relays, Inc. | 4 ms | Silver Nickel (AgNi) | Screw Terminal | DPDT (2 Form C) | Lighted Indicator Varistor | Non Latching | 230 VAC | 7 ms | 8 A | 46 VAC | 400 VAC | DIN Rail | 184 VAC | General Purpose | 7 mA | 3200 VA | 70 °C | -40 C | 32.9 kOhms |
Finder Relays, Inc. | 4 ms | Silver Nickel (AgNi) | Screw Terminal | DPDT (2 Form C) | Lighted Indicator Varistor | Non Latching | 24 VAC | 7 ms | 8 A | 4.8 VAC | 400 VAC | DIN Rail | 19.2 VAC | General Purpose | 46 mA | 3200 VA | 70 °C | -40 C | 521.7 Ohms |
