2823376 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

2P,2MM,SHRD HDR,SRVT,2.8,0.1AU,T

Part	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Voltage Rating	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Mounting Type	Contact Finish - Post	Contact Shape	Contact Length - Mating	Contact Length - Mating	Shrouding	Insulation Color	Material Flammability Rating	Insulation Height	Insulation Height	Number of Positions	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Termination	Style	Contact Finish - Mating	Insulation Material	Current Rating (Amps)	Contact Material	Pitch - Mating [x]	Pitch - Mating [x]	Features	Insulation Height [custom]	Insulation Height [custom]
TE Connectivity Raychem Cable Protection 2823376-2	1	157.5 Áin	4 Ám	125 VAC	Male Pin	125 °C	-40 °C	Header	Through Hole	Tin	Square	4 mm	0.157 in	Shrouded - 2 Wall	Black	UL94 V-0	0.217 "	5.5 mm	2	All	0.11 in	2.8 mm	3.94 µin	0.1 µm	Push-Pull	Solder	Board to Cable/Wire	Gold	Thermoplastic	2 A	Phosphor Bronze	0.079 in	2 mm	Pick and Place

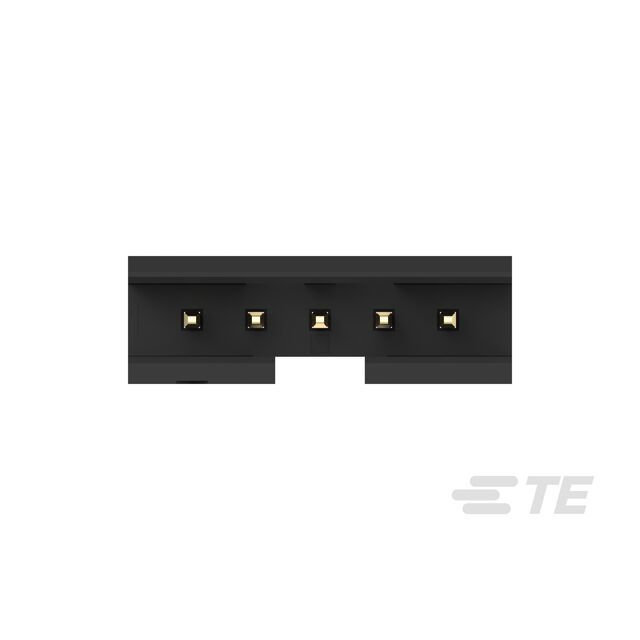

TE Connectivity Raychem Cable Protection 2823376-5	1	157.5 Áin	4 Ám	125 VAC	Male Pin	125 °C	-40 °C	Header	Through Hole	Tin	Square	4 mm	0.157 in	Shrouded - 2 Wall	Black	UL94 V-0	0.217 "	5.5 mm		All	0.11 in	2.8 mm	3.94 µin	0.1 µm	Push-Pull	Solder	Board to Cable/Wire	Gold	Thermoplastic	2 A	Phosphor Bronze	0.079 in	2 mm	Pick and Place	5.51 mm	0.217 in

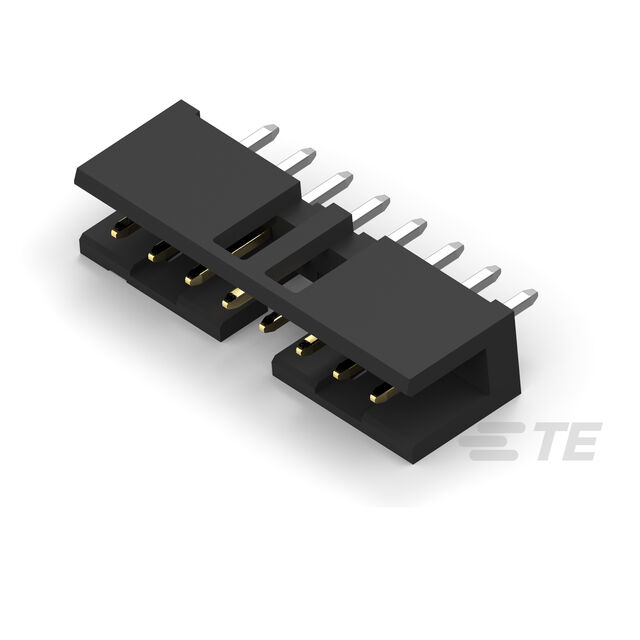

TE Connectivity Raychem Cable Protection 2823376-8	1	157.5 Áin	4 Ám	125 VAC	Male Pin	125 °C	-40 °C	Header	Through Hole	Tin	Square	4 mm	0.157 in	Shrouded - 2 Wall	Black	UL94 V-0			8	All	0.11 in	2.8 mm	3.94 µin	0.1 µm	Detent Lock	Solder		Gold	Thermoplastic	2 A	Phosphor Bronze	0.079 in	2 mm		5.51 mm	0.217 in
TE Connectivity Raychem Cable Protection 2823376-7	1	157.5 Áin	4 Ám	125 VAC	Male Pin	125 °C	-40 °C	Header	Through Hole	Tin	Square	4 mm	0.157 in	Shrouded - 2 Wall	Black	UL94 V-0			7	All	0.11 in	2.8 mm	3.94 µin	0.1 µm	Detent Lock	Solder		Gold	Thermoplastic	2 A	Phosphor Bronze	0.079 in	2 mm		5.51 mm	0.217 in

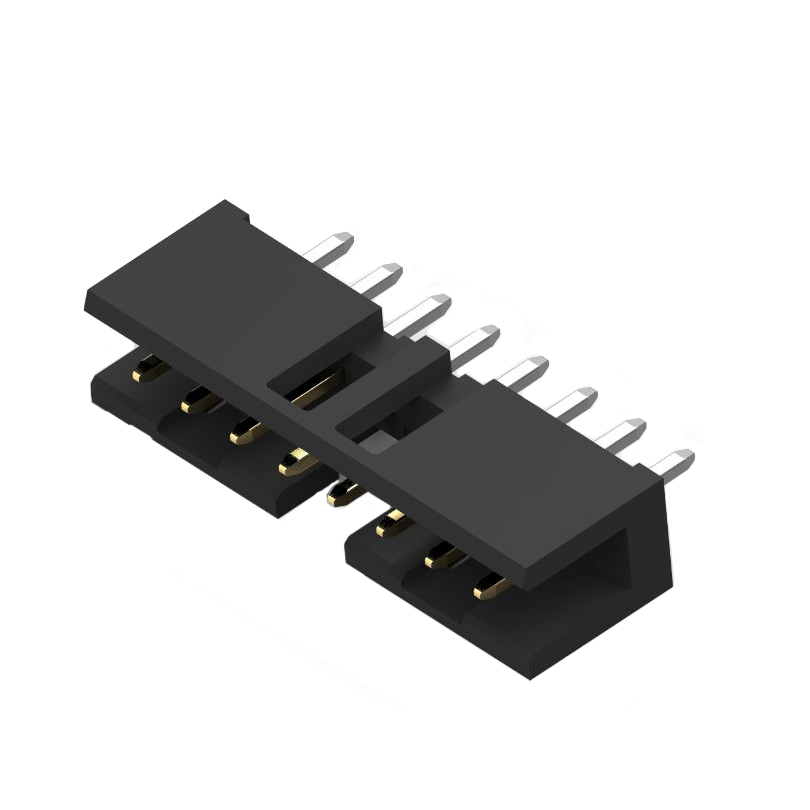

TE Connectivity Raychem Cable Protection 1-2823376-0	1	157.5 Áin	4 Ám	125 VAC	Male Pin	125 °C	-40 °C	Header	Through Hole	Tin	Square	4 mm	0.157 in	Shrouded - 2 Wall	Black	UL94 V-0			10	All	0.11 in	2.8 mm	3.94 µin	0.1 µm	Detent Lock	Solder		Gold	Thermoplastic	2 A	Phosphor Bronze	0.079 in	2 mm		5.51 mm	0.217 in

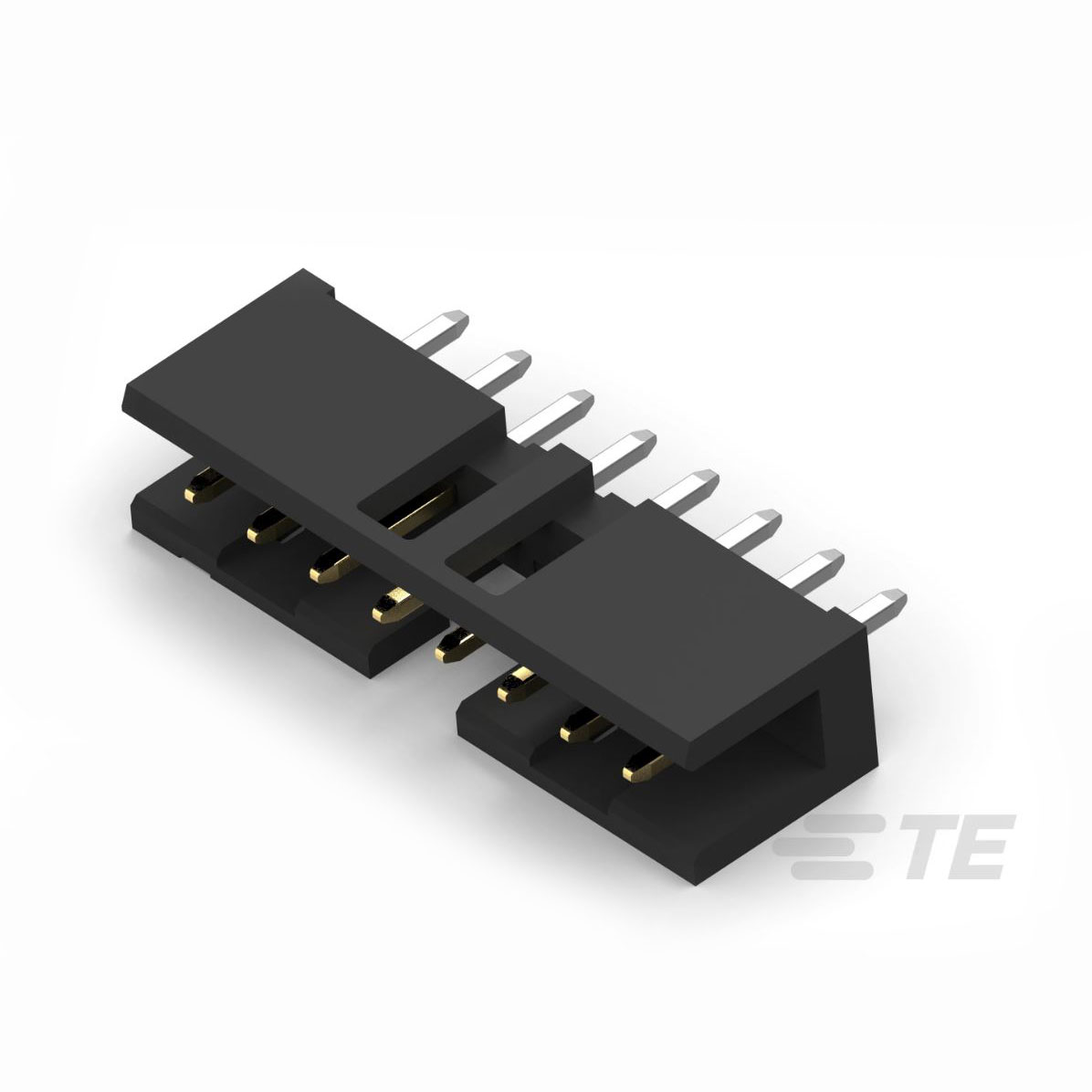

TE Connectivity Raychem Cable Protection 2823376-9	1	157.5 Áin	4 Ám	125 VAC	Male Pin	125 °C	-40 °C	Header	Through Hole	Tin	Square	4 mm	0.157 in	Shrouded - 2 Wall	Black	UL94 V-0			9	All	0.11 in	2.8 mm	3.94 µin	0.1 µm	Detent Lock	Solder		Gold	Thermoplastic	2 A	Phosphor Bronze	0.079 in	2 mm		5.51 mm	0.217 in
TE Connectivity Raychem Cable Protection 1-2823376-2	1	157.5 Áin	4 Ám	125 VAC	Male Pin	125 °C	-40 °C	Header	Through Hole	Tin	Square	4 mm	0.157 in	Shrouded - 2 Wall	Black	UL94 V-0			12	All	0.11 in	2.8 mm	3.94 µin	0.1 µm	Detent Lock	Solder		Gold	Thermoplastic	2 A	Phosphor Bronze	0.079 in	2 mm		5.51 mm	0.217 in
TE Connectivity Raychem Cable Protection 2823376-4	1	157.5 Áin	4 Ám	125 VAC	Male Pin	125 °C	-40 °C	Header	Through Hole	Tin	Square	4 mm	0.157 in	Shrouded - 2 Wall	Black	UL94 V-0	0.217 "	5.5 mm	4	All	0.11 in	2.8 mm	3.94 µin	0.1 µm	Push-Pull	Solder	Board to Cable/Wire	Gold	Thermoplastic	2 A	Phosphor Bronze	0.079 in	2 mm	Pick and Place

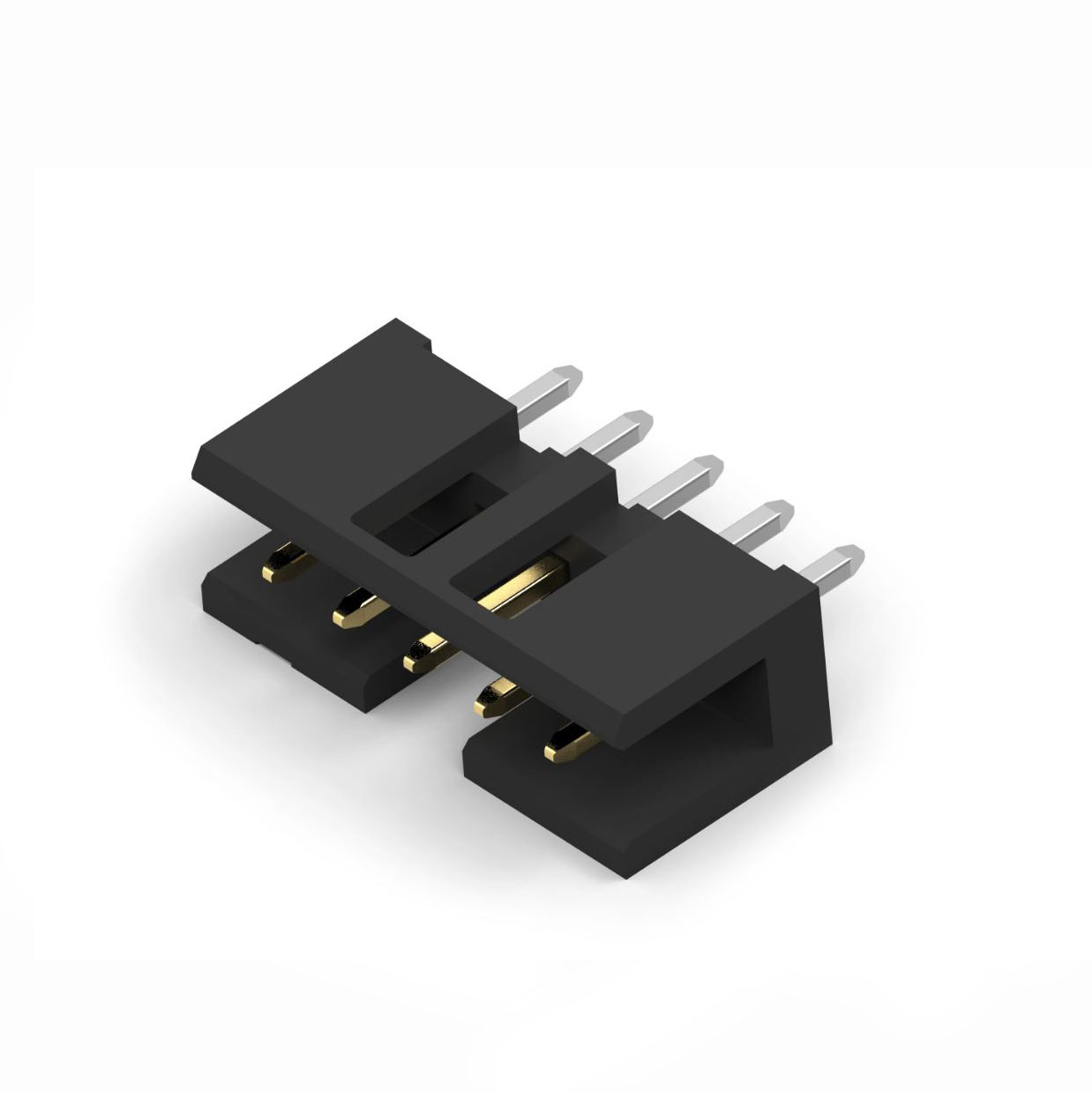

TE Connectivity Raychem Cable Protection 2823376-6	1	157.5 Áin	4 Ám	125 VAC	Male Pin	125 °C	-40 °C	Header	Through Hole	Tin	Square	4 mm	0.157 in	Shrouded - 2 Wall	Black	UL94 V-0			6	All	0.11 in	2.8 mm	3.94 µin	0.1 µm	Detent Lock	Solder		Gold	Thermoplastic	2 A	Phosphor Bronze	0.079 in	2 mm		5.51 mm	0.217 in
TE Connectivity Raychem Cable Protection 2823376-3	1	157.5 Áin	4 Ám	125 VAC	Male Pin	125 °C	-40 °C	Header	Through Hole	Tin	Square	4 mm	0.157 in	Shrouded - 2 Wall	Black	UL94 V-0	0.217 "	5.5 mm		All	0.11 in	2.8 mm	3.94 µin	0.1 µm	Push-Pull	Solder	Board to Cable/Wire	Gold	Thermoplastic	2 A	Phosphor Bronze	0.079 in	2 mm	Pick and Place
