28342 Series
Manufacturer: Phoenix Contact
Beta
⌘K
RELAY GEN PURPOSE 3PDT 10A 24V
| Part | Coil Resistance | Termination Style | Termination Style | Contact Rating (Current) | Coil Type | Coil Current | Operating Temperature [Max] | Operating Temperature [Min] | Operate Time | Mounting Type | Contact Material | Coil Voltage | Switching Voltage | Release Time | Contact Form | Relay Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

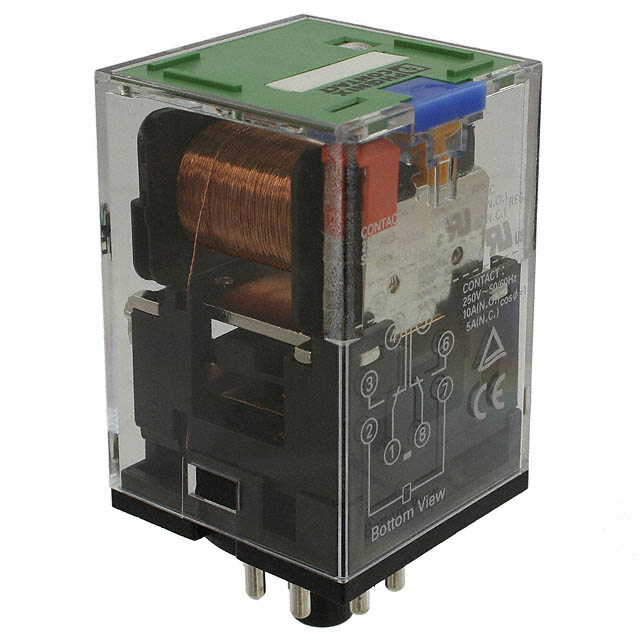

 Phoenix Contact | 430 Ohms | 11 Pin | Plug In | 10 A | Non Latching | 56 mA | 40 °C | -10 °C | 12 ms | Socketable | Silver (Ag) | 24 VDC | 250 VAC 250 VDC | 6 ms | 3PDT (3 Form C) | General Purpose |

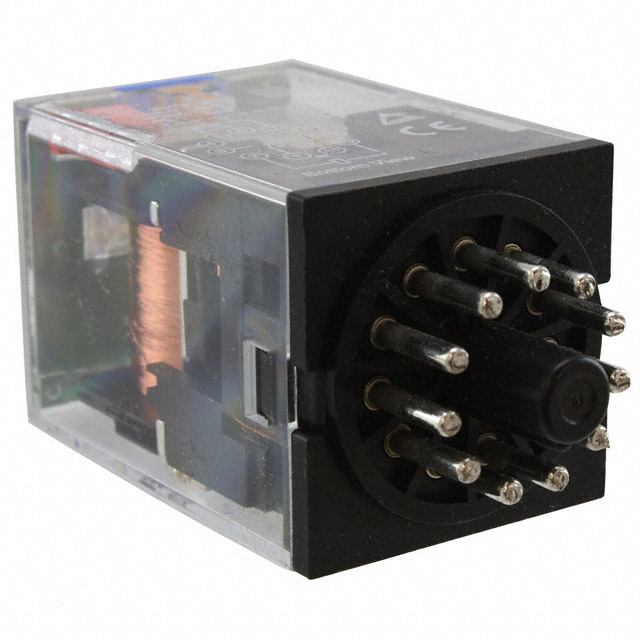

 Phoenix Contact | 1.52 kOhms | Plug In | 10 A | Non Latching | 0.02 A | 40 °C | -10 °C | 20 ms | Socketable | Silver (Ag) | 120 VAC | 250 VAC 250 VDC | 20 ms | DPDT (2 Form C) | General Purpose | |

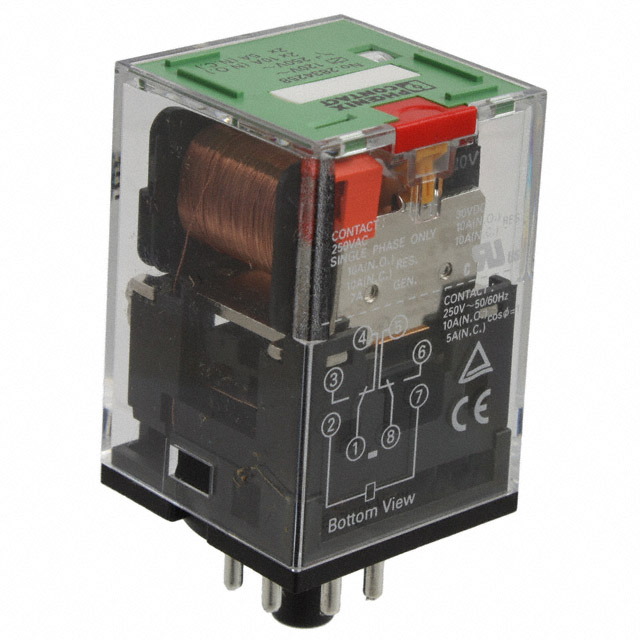

 Phoenix Contact | 430 Ohms | Plug In | 10 A | Non Latching | 56 mA | 40 °C | -10 °C | 12 ms | Socketable | Silver (Ag) | 24 VDC | 250 VAC 250 VDC | 6 ms | DPDT (2 Form C) | General Purpose |
