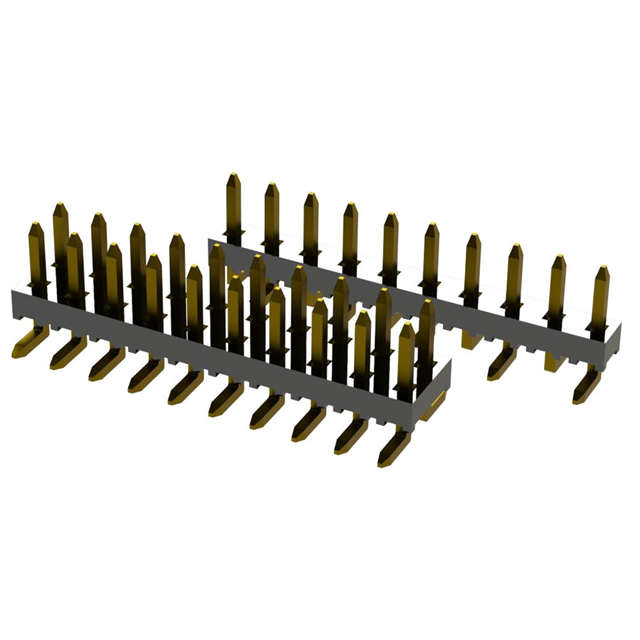

ULTSHSM Series
Manufacturer: Major League Electronics
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
.100 HEADER
| Part | Contact Type | Number of Positions Loaded | Insulation Color | Fastening Type | Current Rating | Number of Rows | Row Spacing - Mating | Mounting Type | Contact Material | Contact Length - Mating | Style | Contact Finish - Mating | Contact Finish - Post | Pitch - Mating | Number of Positions | Shrouding | Termination | Insulation Height | Contact Shape | Insulation Material | Contact Finish Thickness - Mating | Connector Type | Operating Temperature (Min) | Operating Temperature (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Major League Electronics | Male Pin | All | Black | Push-Pull | 3 A | 2 | 0.1 in | Surface Mount | Phosphor Bronze | 0.27 in | Board | Gold | Tin | 0.1 in | 6 | Unshrouded | Solder | 0.06 in | Square | Nylon 6T Polyamide (PA6T) | 10 µin | Header | -40 °C | 105 °C |
