EN2C5F Series

Catalog

CONN PLUG FMALE 5POS GOLD CRIMP

Part	Ingress Protection	Mounting Type	Applications	Material Flammability Rating	Shielding	Primary Material	Fastening Type	Termination	Backshell Material, Plating	Contact Material	Orientation	Voltage Rating	Connector Type	Color	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Features	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]

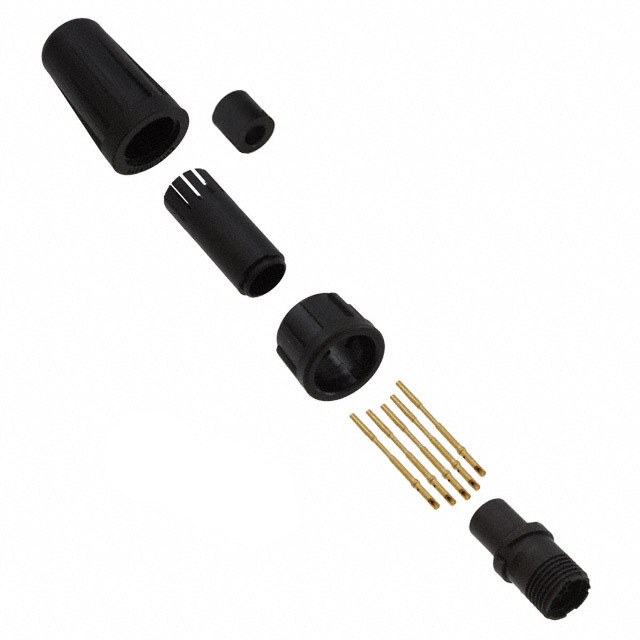

Switchcraft Inc. EN2C5F26G2	IP66 IP67 IP68	Free Hanging (In-Line)	Communication Systems Industrial Marine Medical	UL94 V-0	Unshielded	Plastic	Bayonet Lock	Crimp Solder Cup	Thermoplastic	Copper Alloy	Keyed	125 VAC	Female Sockets Plug	Black	Gold	85 °C	-40 °C	Elastomer	Backshell Coupling Nut	4.57 mm	3.56 mm	0.14 in	0.18 in

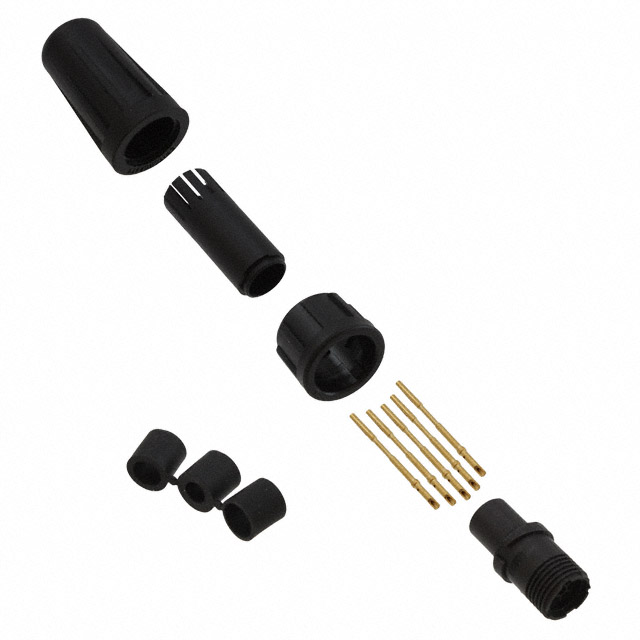

Switchcraft Inc. EN2C5F26DC	IP66 IP67 IP68	Free Hanging (In-Line)	Communication Systems Industrial Marine Medical	UL94 V-0	Unshielded	Plastic	Bayonet Lock	Crimp Solder Cup	Thermoplastic	Copper Alloy	Keyed	125 VAC	Female Sockets Plug	Black	Gold	85 °C	-40 °C	Elastomer	Backshell Coupling Nut
Switchcraft Inc. EN2C5F26G1	IP66 IP67 IP68	Free Hanging (In-Line)	Communication Systems Industrial Marine Medical	UL94 V-0	Unshielded	Plastic	Bayonet Lock	Crimp Solder Cup	Thermoplastic	Copper Alloy	Keyed	125 VAC	Female Sockets Plug	Black	Gold	85 °C	-40 °C	Elastomer	Backshell Coupling Nut					2.54 mm 3.56 mm	0.1 in 0.14 in

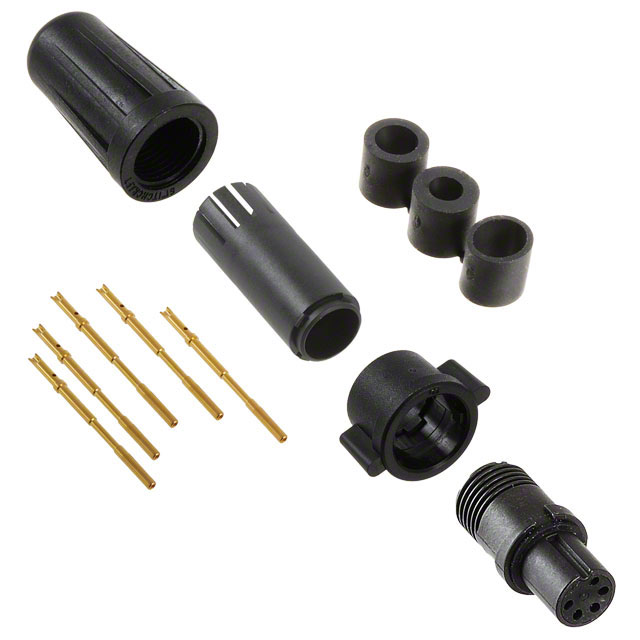

Switchcraft Inc. EN2C5F26DCW	IP66 IP67 IP68	Free Hanging (In-Line)	Communication Systems Industrial Marine Medical	UL94 V-0	Unshielded	Plastic	Bayonet Lock	Crimp Solder Cup	Thermoplastic	Copper Alloy	Keyed	125 VAC	Female Sockets Plug	Black	Gold	85 °C	-40 °C	Elastomer	Backshell Coupling Nut Winged
