R12365 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

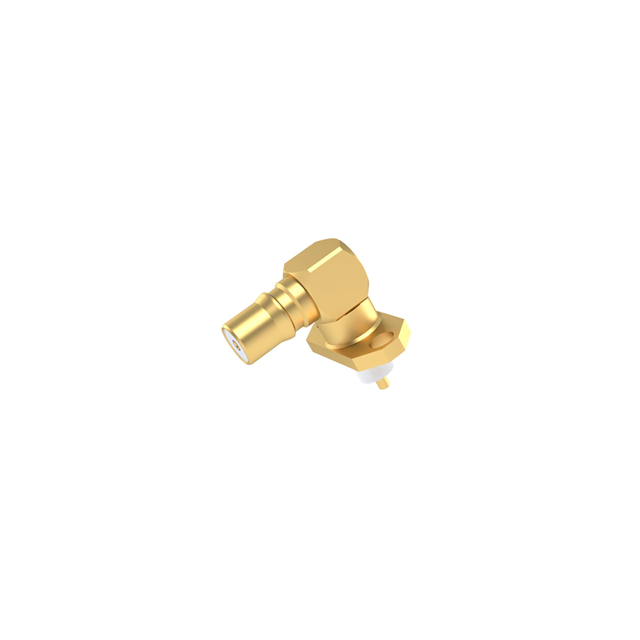

QMA / 2 HOLE FLANGE JACK RECEPTA
| Part | Insertion Loss | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Material | Voltage Rating | Center Contact Plating | Body Finish | Contact Termination | Features | Shield Termination | Connector Type | Frequency - Max [Max] | Impedance | Center Contact Material | Mounting Type | Housing Color | Number of Ports | Mounting Feature | Fastening Type | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 0.25 dB | -40 C | 105 ░C | Polytetrafluoroethylene (PTFE) | Brass | 500 V | Gold | Gold | Solder | Extended Insulation | Solder | Female Socket Jack | 6000 MHz | 50 Ohms | Beryllium Copper | Panel Mount Right Angle Through Hole | Gold | 1 | Flange | Snap-On | IP68 - Dust Tight Waterproof |
