BG212V Series
Manufacturer: Pflitsch
Beta
⌘K

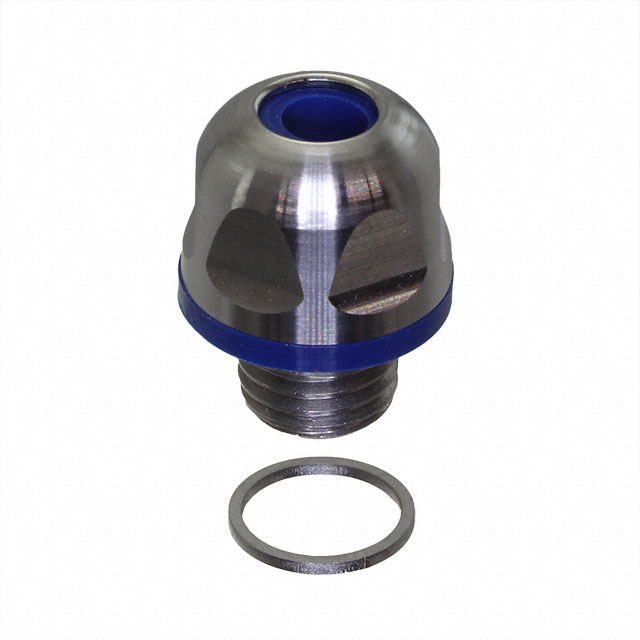

CABLE GLAND 5-7MM M12 S STEEL
| Part | Outside Cable Diameter (Max) [Max] | Outside Cable Diameter (Max) | Includes | Thread Length | Thread Length | Ingress Protection | Color | Type | Outside Cable Diameter (Min) [Min] [diameter] | Outside Cable Diameter (Min) [Min] [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Panel Hole Size [diameter] | Panel Hole Size [diameter] | Material | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pflitsch | 0.276 in | 7 mm | Sealing Ring | 7 mm | 0.276 " | IP66 IP68 IP69 | Silver | Cable Gland | 0.197 in | 5 mm | 85 °C | -40 C | 12 mm | 0.472 in | Stainless Steel | M12x1.5 |
