RP4140 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

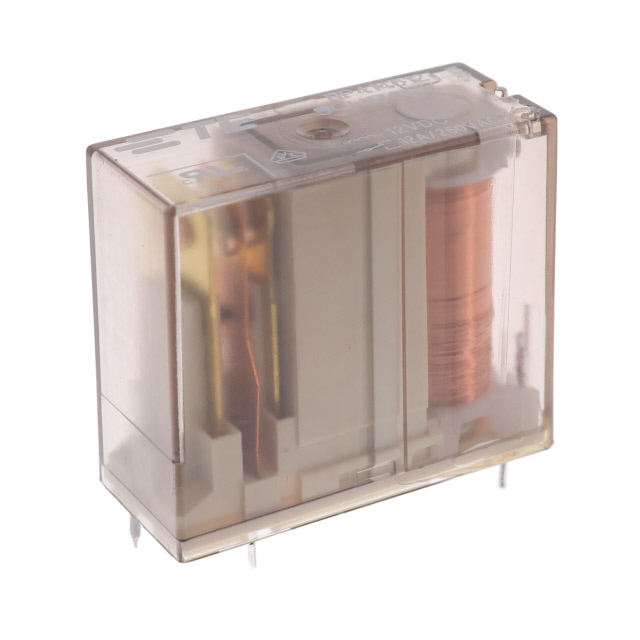

RELAY GEN PURPOSE SPDT 12A 12V
| Part | Coil Resistance | Coil Voltage | Load - Max Switching | Must Release Voltage | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Must Operate Voltage | Release Time | Mounting Type | Seal Rating | Contact Rating (Current) | Relay Type | Switching Voltage [Max] | Coil Current | Contact Form | Contact Material | Coil Type | Approval Agency | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 270 Ohms | 12 VDC | 4800 VA | 1.2 VDC | PC Pin | 70 °C | -40 C | 8.4 VDC | 2 ms | Through Hole | Sealed - Flux Protection | 12 A | General Purpose | 400 VAC | 44.4 mA | SPDT (1 Form C) | Silver Nickel (AgNi) | Non Latching | cURus VDE | 8 ms |
