796693 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

TERM BLOCK PLUG 3POS 3.50MM

Part	Torque - Screw	Torque - Screw	Material Flammability Rating	Insulation Height	Insulation Height	Screw Size	Contact Material	Wire Strip Length [Min]	Wire Strip Length [Max]	Contact Mating Finish	Features	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Pitch	Pitch	Color	Positions Per Level	Plug Wire Entry	Current - UL	Voltage - UL	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Termination Style	Number of Levels	Type	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Number of Positions

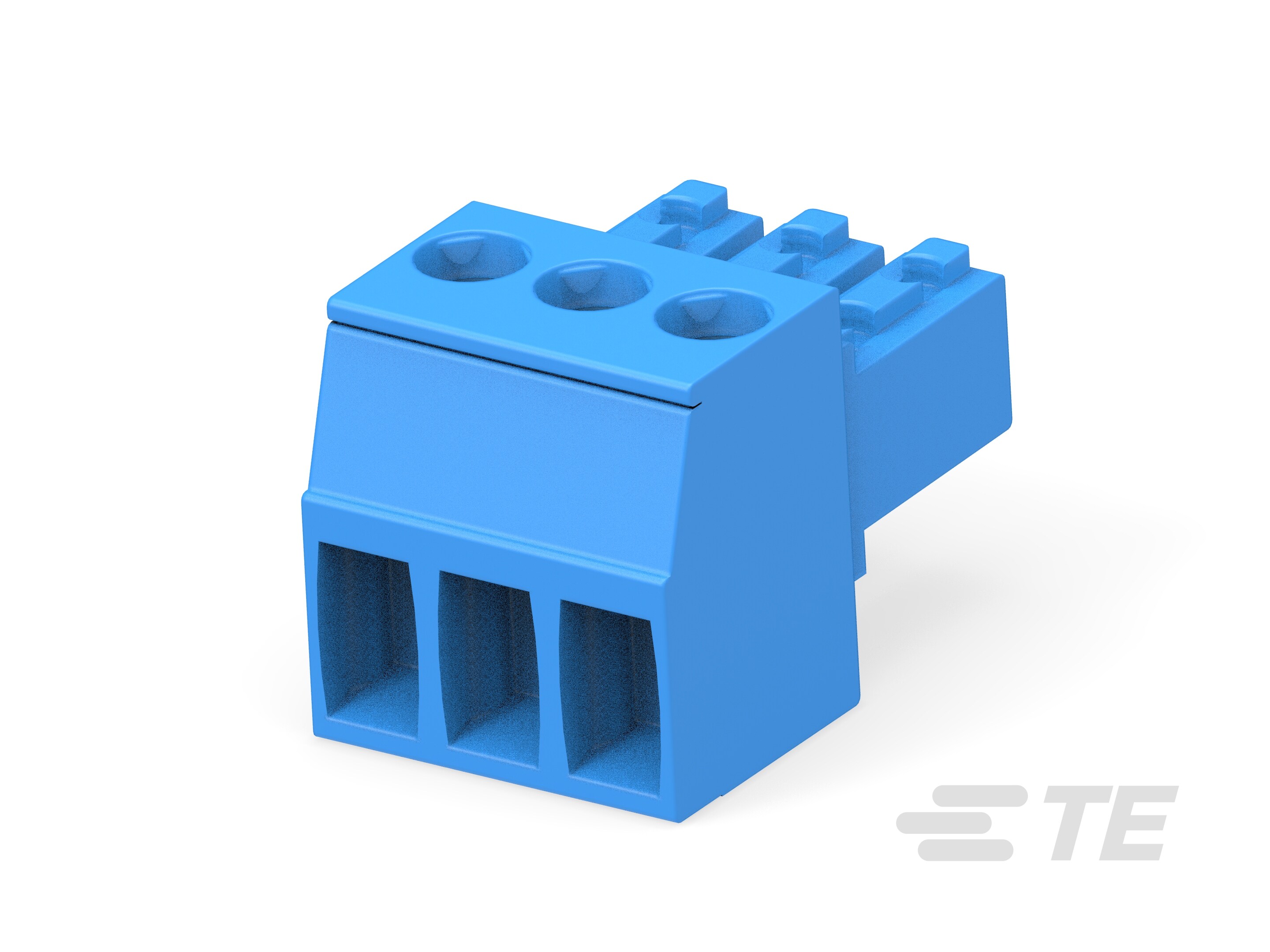

TE Connectivity AMP Connectors 796693-3	0.31 Nm	2.7 Lb-In	UL94 V-0	11.1 mm	0.437 in	M2	Phosphor Bronze	5 mm	6 mm	Tin	Side Stacking	-40 C	110 °C	Free Hanging (In-Line)	14 AWG	30 AWG	3.5 mm	0.138 "	Blue	3	180 °	11 A	300 V	0.3 mm²	2 mm²	Screw - Rising Cage Clamp	1	Plug Female Sockets

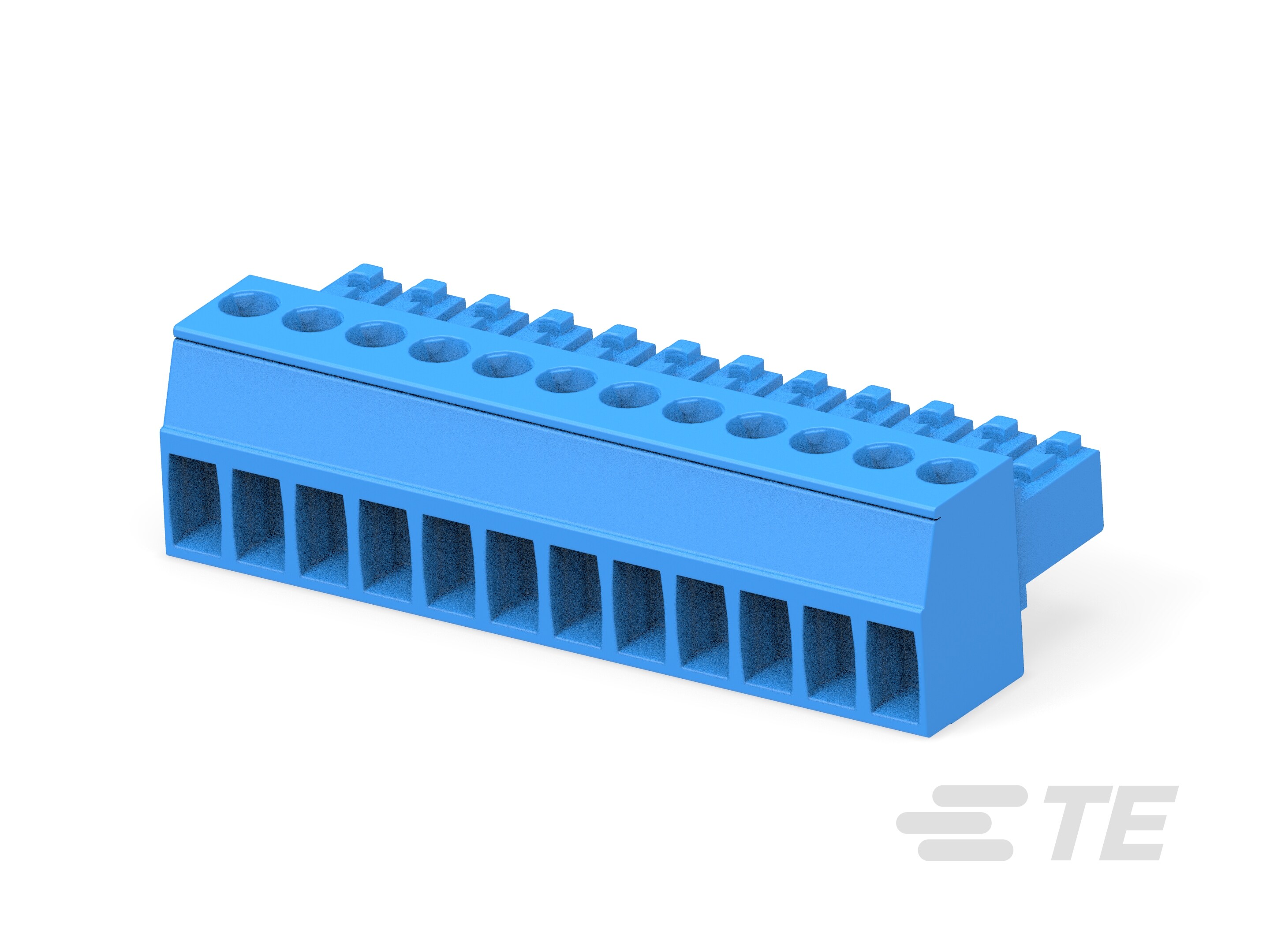

TE Connectivity AMP Connectors 1-796693-2	0.31 Nm	2.7 Lb-In	UL94 V-0	11.1 mm	0.437 in	M2	Phosphor Bronze	5 mm	6 mm	Tin	Side Stacking	-40 C	110 °C	Free Hanging (In-Line)	14 AWG	30 AWG	3.5 mm	0.138 "	Blue	12	180 °	11 A	300 V	0.3 mm²	2 mm²	Screw - Rising Cage Clamp	1	Plug Female Sockets	0.3 mm˛	2 mm˛	12
TE Connectivity AMP Connectors 2-796693-1	0.31 Nm	2.7 Lb-In	UL94 V-0	11.1 mm	0.437 in	M2	Phosphor Bronze	5 mm	6 mm	Tin	Side Stacking	-40 C	110 °C	Free Hanging (In-Line)	14 AWG	30 AWG	3.5 mm	0.138 "	Blue	21	180 °	11 A	300 V	0.3 mm²	2 mm²	Screw - Rising Cage Clamp	1	Plug Female Sockets			21
TE Connectivity AMP Connectors 796693-6	0.31 Nm	2.7 Lb-In	UL94 V-0	11.1 mm	0.437 in	M2	Phosphor Bronze	5 mm	6 mm	Tin	Side Stacking	-40 C	110 °C	Free Hanging (In-Line)	14 AWG	30 AWG	3.5 mm	0.138 "	Blue	6	180 °	11 A	300 V	0.3 mm²	2 mm²	Screw - Rising Cage Clamp	1	Plug Female Sockets			6

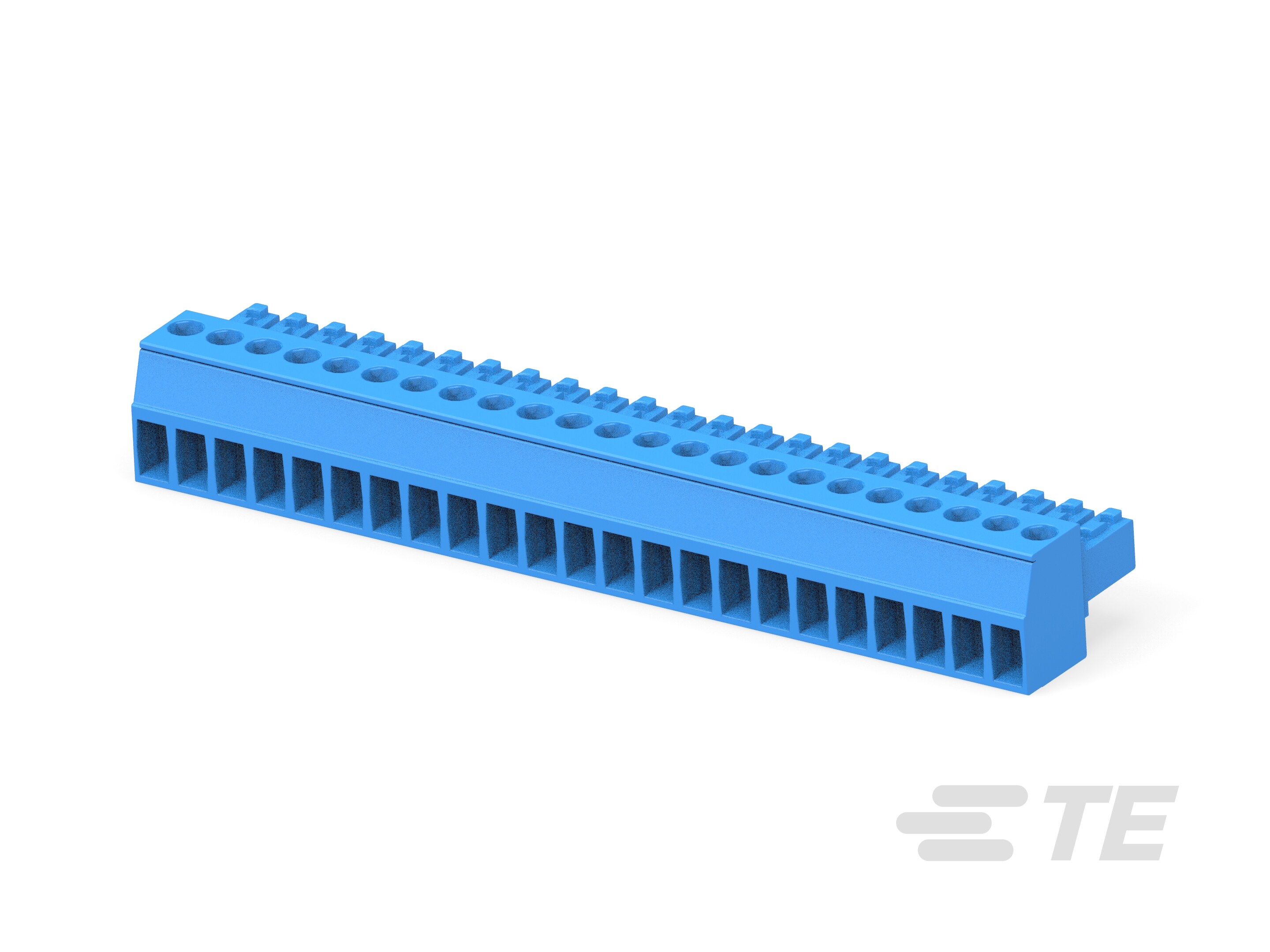

TE Connectivity AMP Connectors 2-796693-3	0.31 Nm	2.7 Lb-In	UL94 V-0	11.1 mm	0.437 in	M2	Phosphor Bronze	5 mm	6 mm	Tin	Side Stacking	-40 C	110 °C	Free Hanging (In-Line)	14 AWG	30 AWG	3.5 mm	0.138 "	Blue	23	180 °	11 A	300 V	0.3 mm²	2 mm²	Screw - Rising Cage Clamp	1	Plug Female Sockets			23

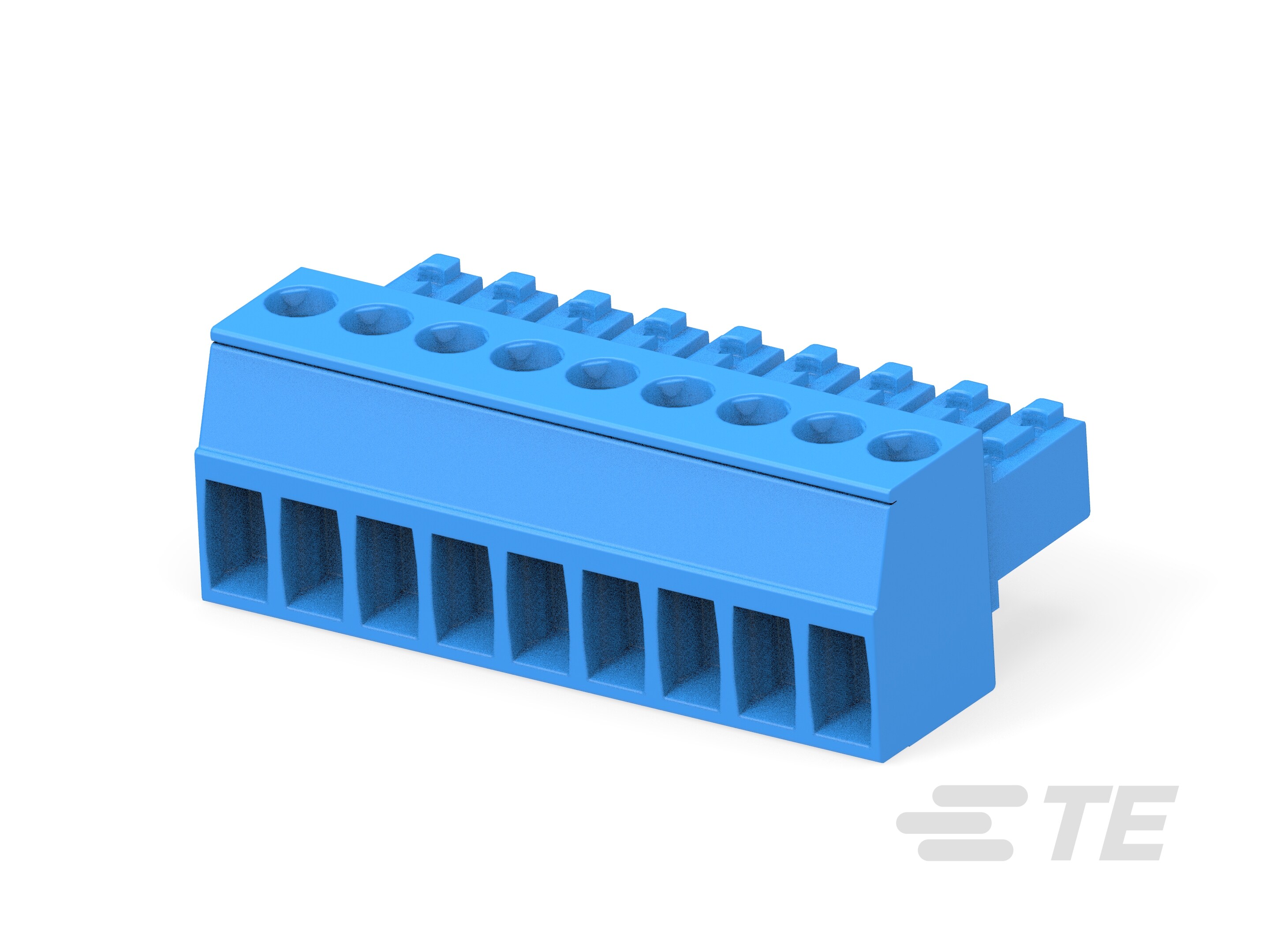

TE Connectivity AMP Connectors 796693-9	0.31 Nm	2.7 Lb-In	UL94 V-0	11.1 mm	0.437 in	M2	Phosphor Bronze	5 mm	6 mm	Tin	Side Stacking	-40 C	110 °C	Free Hanging (In-Line)	14 AWG	30 AWG	3.5 mm	0.138 "	Blue	9	180 °	11 A	300 V	0.3 mm²	2 mm²	Screw - Rising Cage Clamp	1	Plug Female Sockets			9
TE Connectivity AMP Connectors 3-796693-9	0.31 Nm	2.7 Lb-In	UL94 V-0	11.1 mm	0.437 in	M2	Phosphor Bronze	5 mm	6 mm	Tin		-40 C	110 °C	Free Hanging (In-Line)	14 AWG	30 AWG	3.5 mm	0.138 "	Blue	9	180 °	11 A	300 V	0.3 mm²	2 mm²	Screw - Rising Cage Clamp	1	Plug Female Sockets			9
TE Connectivity AMP Connectors 796693-4	0.31 Nm	2.7 Lb-In	UL94 V-0	11.1 mm	0.437 in	M2	Phosphor Bronze	5 mm	6 mm	Tin	Side Stacking	-40 C	110 °C	Free Hanging (In-Line)	14 AWG	30 AWG	3.5 mm	0.138 "	Blue	4	180 °	11 A	300 V	0.3 mm²	2 mm²	Screw - Rising Cage Clamp	1	Plug Female Sockets			4
TE Connectivity AMP Connectors 1-796693-3	0.31 Nm	2.7 Lb-In	UL94 V-0	11.1 mm	0.437 in	M2	Phosphor Bronze	5 mm	6 mm	Tin	Side Stacking	-40 C	110 °C	Free Hanging (In-Line)	14 AWG	30 AWG	3.5 mm	0.138 "	Blue	13	180 °	11 A	300 V	0.3 mm²	2 mm²	Screw - Rising Cage Clamp	1	Plug Female Sockets			13

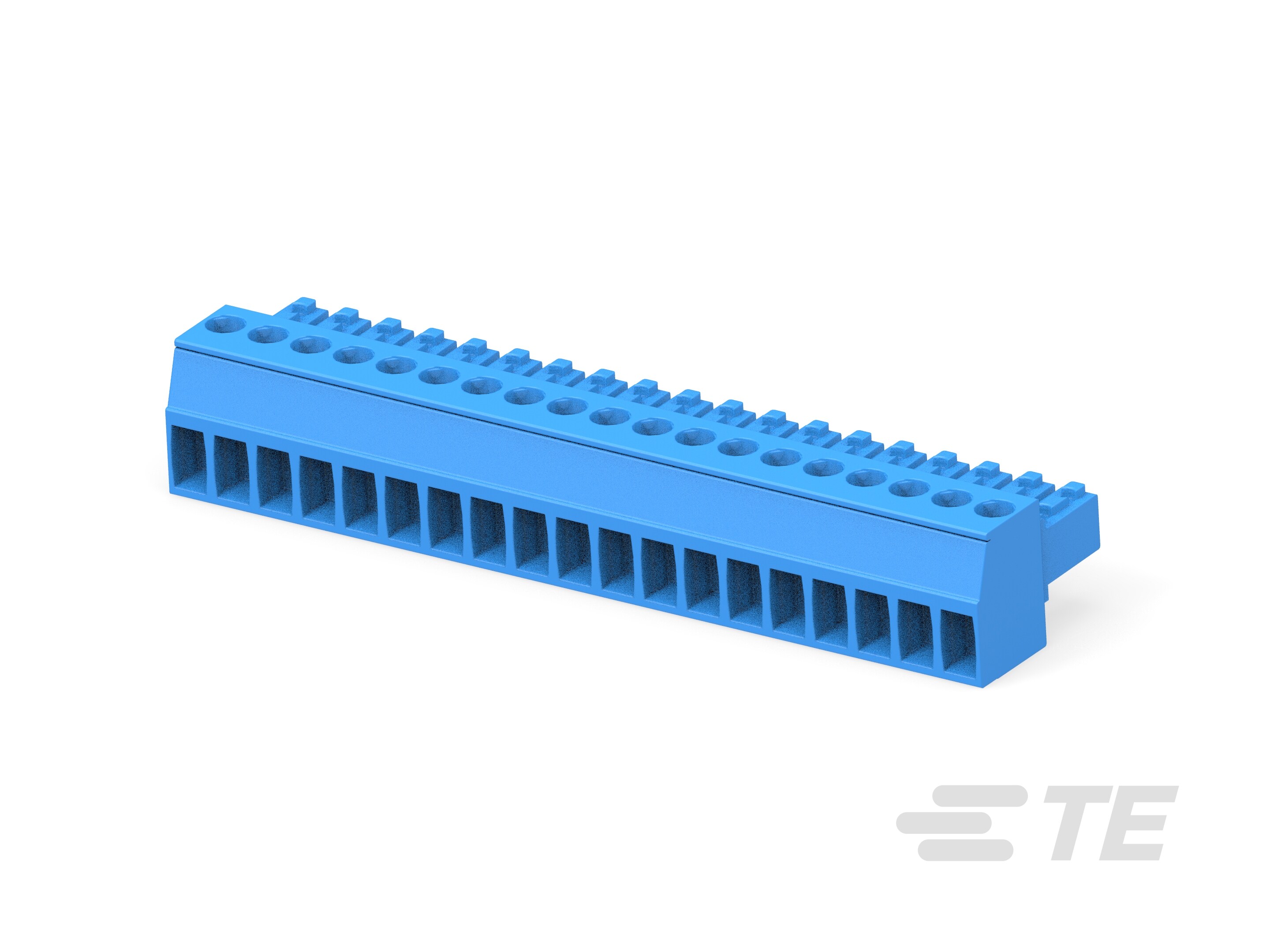

TE Connectivity AMP Connectors 1-796693-9	0.31 Nm	2.7 Lb-In	UL94 V-0	11.1 mm	0.437 in	M2	Phosphor Bronze	5 mm	6 mm	Tin	Side Stacking	-40 C	110 °C	Free Hanging (In-Line)	14 AWG	30 AWG	3.5 mm	0.138 "	Blue	19	180 °	11 A	300 V	0.3 mm²	2 mm²	Screw - Rising Cage Clamp	1	Plug Female Sockets			19
