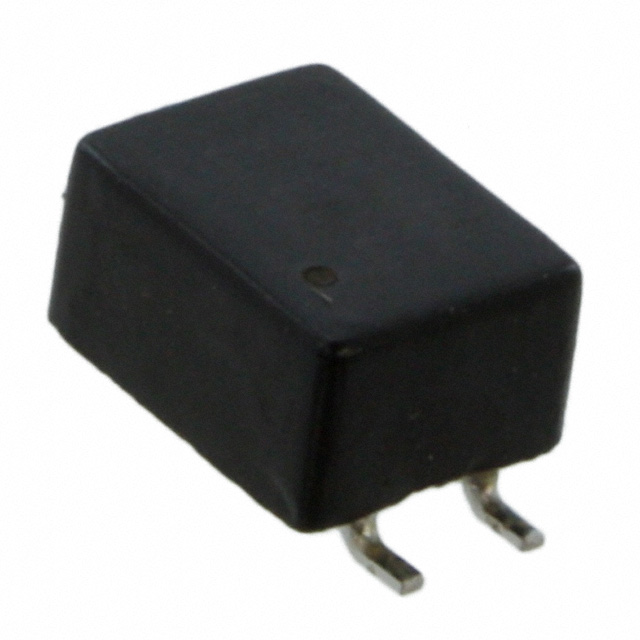

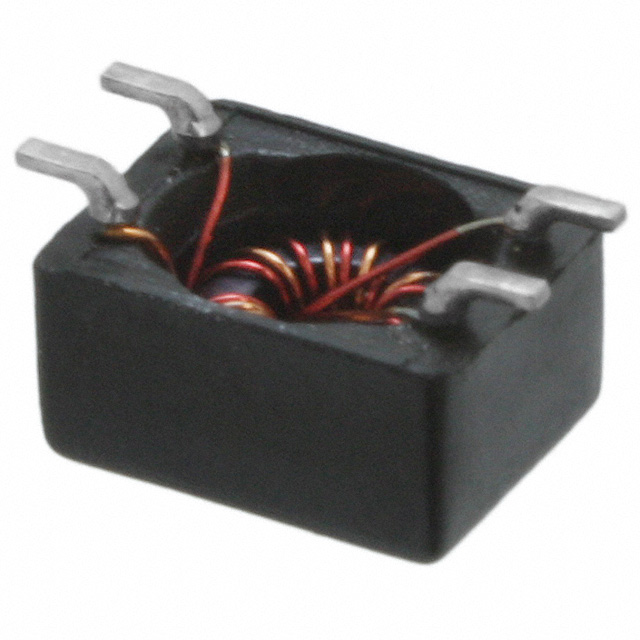

DR331 Series

Catalog

CMC 2.2MH 300MA 2LN SMD

Part	DC Resistance (DCR) (Max) [Max]	Package / Case	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Max) [Max]	Filter Type	Mounting Type	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Inductance @ Frequency	Number of Lines	Voltage Rating - DC	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]
Bourns Inc. DR331-225BE	700 mOhm	Horizontal 4 Flat Lead	42 V	-40 C	135 °C	300 mA	Signal Line	Surface Mount	0.197 in	5 mm	2.2 mH	2	80 V	0.287 "	7.3 mm	5.4 mm	0.213 "
Bourns Inc. DR331-105BE	400 mOhm	Horizontal 4 Flat Lead	42 V	-40 C	135 °C	500 mA	Signal Line	Surface Mount	0.197 in	5 mm	1 mH	2	80 V	0.287 "	7.3 mm	5.4 mm	0.213 "
Bourns Inc. DR331-513BE	300 mOhm	Horizontal 4 Flat Lead	42 V	-40 C	135 °C	500 mA	Signal Line	Surface Mount	0.197 in	5 mm	51 µH	2	80 V	0.287 "	7.3 mm	5.4 mm	0.213 "
Bourns Inc. DR331-474AE	280 mOhm	Horizontal 4 Flat Lead	42 V	-40 C	135 °C	500 mA	Signal Line	Surface Mount	0.197 in	5 mm	470 µH	2	80 V	0.287 "	7.3 mm	5.4 mm	0.213 "

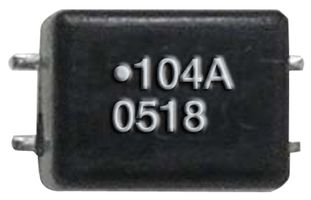

Bourns Inc. DR331-113BE	0.12 Ohm	Horizontal 4 Flat Lead	42 V	-40 C	135 °C	500 mA	Signal Line	Surface Mount	0.197 in	5 mm	11 çH 100 kHz	2	80 V	0.287 "	7.3 mm	5.4 mm	0.213 "
Bourns Inc. DR331-474BE	280 mOhm	Horizontal 4 Flat Lead	42 V	-40 C	135 °C	500 mA	Signal Line	Surface Mount	0.197 in	5 mm	470 µH	2	80 V	0.287 "	7.3 mm	5.4 mm	0.213 "
