629-009 Series

Manufacturer: EDAC Inc.

Catalog

629 SERIES RIGHT ANGLE D-SUB PLU

Part	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Contact Material	Color	Connector Type	Material Flammability Rating	Features	Connector Style	Flange Feature	Mounting Type	Contact Type	Termination	Shell Material, Finish	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Backset Spacing	Backset Spacing	Number of Rows [custom]	Current Rating (Amps)	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Positions	Flange Feature	Contact Finish Thickness
EDAC Inc. 629-009-340-031	-55 C	85 °C	Polyester Thermoplastic	Copper Alloy	Black	Plug Male Pins	UL94 V-0	Board Lock Grounding Indents Mounting Brackets Shielded	D-Sub	Housing/Shell (Unthreaded)	Panel Mount Right Angle Through Hole	Signal	Solder	Nickel Plated Steel	0.38 µm	15 µin	Gold	10.4 mm	0.409 in	2	3 A	1	DE E	9
EDAC Inc. 629-009-640-042	-55 C	85 °C	Polyester Thermoplastic	Copper Alloy	Black	Plug Male Pins	UL94 V-0	Board Lock Grounding Indents Mounting Brackets Shielded	D-Sub	Housing/Shell	Panel Mount Right Angle Through Hole	Signal	Solder	Nickel Plated Steel	0.76 Ám	30 Áin	Gold	10.4 mm	0.409 in	2	3 A	1	DE E	9	4-40
EDAC Inc. 629-009-240-015	-55 C	85 °C	Polyester Thermoplastic	Copper Alloy	Black	Plug Male Pins	UL94 V-0	Grounding Indents Mounting Brackets Shielded	D-Sub	Housing/Shell (M3)	Panel Mount Right Angle Through Hole	Signal	Solder	Nickel Plated Steel			Gold	10.4 mm	0.409 in	2	3 A	1	DE E	9		Flash

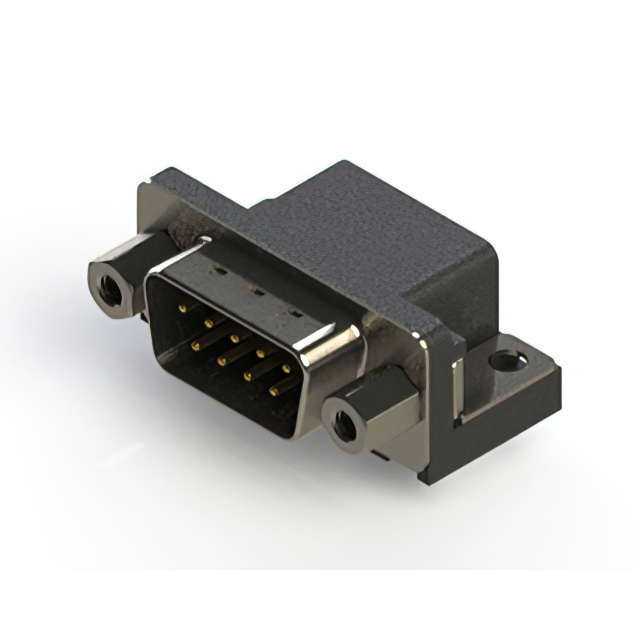

EDAC Inc. 629-009-240-513	-55 C	125 °C	Polyester Thermoplastic	Copper Alloy	Black	Plug Male Pins	UL94 V-0	Grounding Indents Mounting Brackets Shielded	D-Sub	4-40 Mating Side Female Screwlock	Panel Mount Right Angle Through Hole	Signal	Solder	Nickel Plated Steel			Gold	10.4 mm	0.409 in	2	3 A	1	DE E	9		Flash

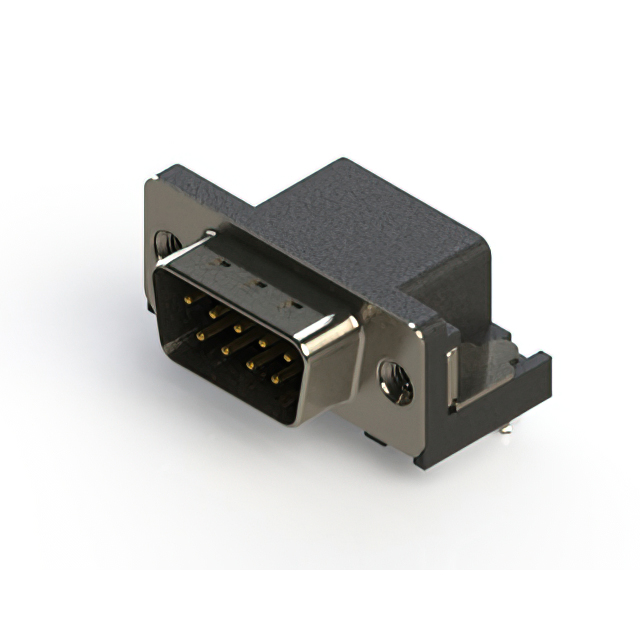

EDAC Inc. 629-009-340-045	-55 C	85 °C	Polyester Thermoplastic	Copper Alloy	Black	Plug Male Pins	UL94 V-0	Board Lock Grounding Indents Mounting Brackets Shielded	D-Sub	Housing/Shell (M3)	Panel Mount Right Angle Through Hole	Signal	Solder	Nickel Plated Steel	0.38 µm	15 µin	Gold	10.4 mm	0.409 in	2	3 A	1	DE E	9
EDAC Inc. 629-009-240-543	-55 C	125 °C	Polyester Thermoplastic	Copper Alloy	Black	Plug Male Pins	UL94 V-0	Board Lock Grounding Indents Mounting Brackets Shielded	D-Sub	4-40 Mating Side Female Screwlock	Panel Mount Right Angle Through Hole	Signal	Solder	Nickel Plated Steel			Gold	10.4 mm	0.409 in	2	3 A	1	DE E	9		Flash
EDAC Inc. 629-009-340-532	-55 C	125 °C	Polyester Thermoplastic	Copper Alloy	Black	Plug Male Pins	UL94 V-0	Board Lock Grounding Indents Mounting Brackets Shielded	D-Sub	Housing/Shell	Panel Mount Right Angle Through Hole	Signal	Solder	Nickel Plated Steel	0.38 µm	15 µin	Gold	10.4 mm	0.409 in	2	3 A	1	DE E	9	4-40

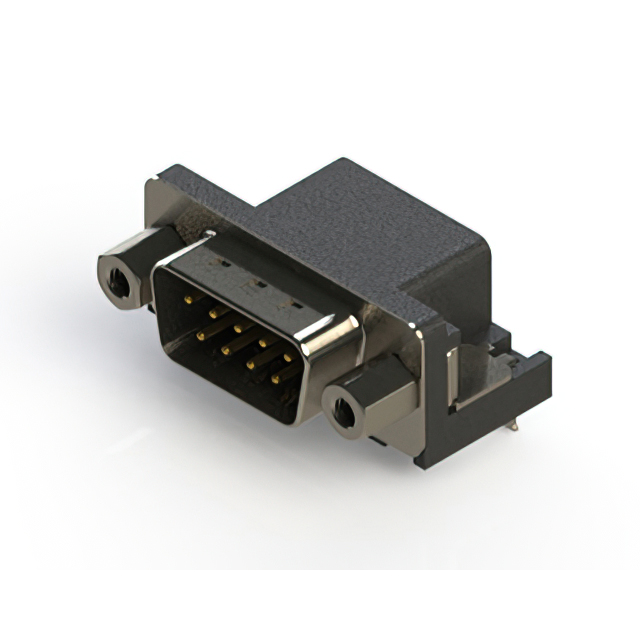

EDAC Inc. 629-009-640-533	-55 C	125 °C	Polyester Thermoplastic	Copper Alloy	Black	Plug Male Pins	UL94 V-0	Board Lock Grounding Indents Mounting Brackets Shielded	D-Sub	4-40 Mating Side Female Screwlock	Panel Mount Right Angle Through Hole	Signal	Solder	Nickel Plated Steel	0.76 Ám	30 Áin	Gold	10.4 mm	0.409 in	2	3 A	1	DE E	9

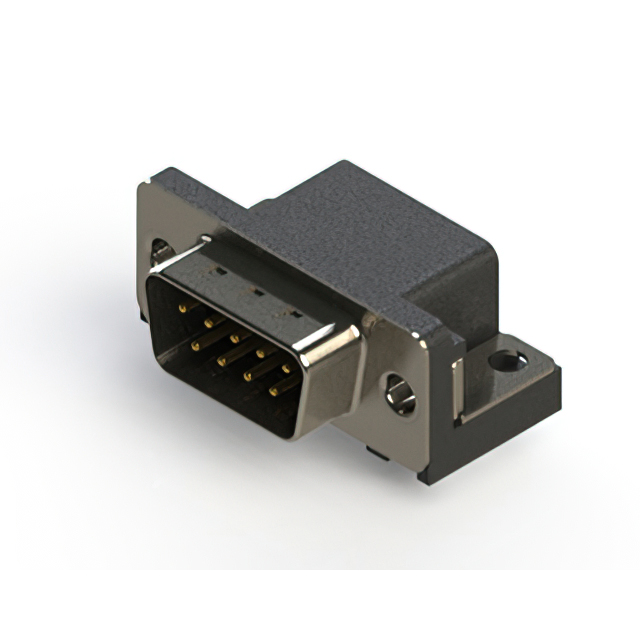

EDAC Inc. 629-009-340-511	-55 C	125 °C	Polyester Thermoplastic	Copper Alloy	Black	Plug Male Pins	UL94 V-0	Grounding Indents Mounting Brackets Shielded	D-Sub	Housing/Shell (Unthreaded)	Panel Mount Right Angle Through Hole	Signal	Solder	Nickel Plated Steel	0.38 µm	15 µin	Gold	10.4 mm	0.409 in	2	3 A	1	DE E	9
EDAC Inc. 629-009-640-031	-55 C	85 °C	Polyester Thermoplastic	Copper Alloy	Black	Plug Male Pins	UL94 V-0	Board Lock Grounding Indents Mounting Brackets Shielded	D-Sub	Housing/Shell (Unthreaded)	Panel Mount Right Angle Through Hole	Signal	Solder	Nickel Plated Steel	0.76 Ám	30 Áin	Gold	10.4 mm	0.409 in	2	3 A	1	DE E	9
