429-43 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RCPT 64POS 0.1 GOLD PCB

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Shape	Insulation Material	Contact Finish - Mating	Number of Positions	Pitch - Mating	Pitch - Mating	Connector Type	Number of Positions Loaded	Contact Type	Contact Finish - Post	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Mounting Type	Current Rating (Amps)	Number of Rows [custom]	Material Flammability Rating

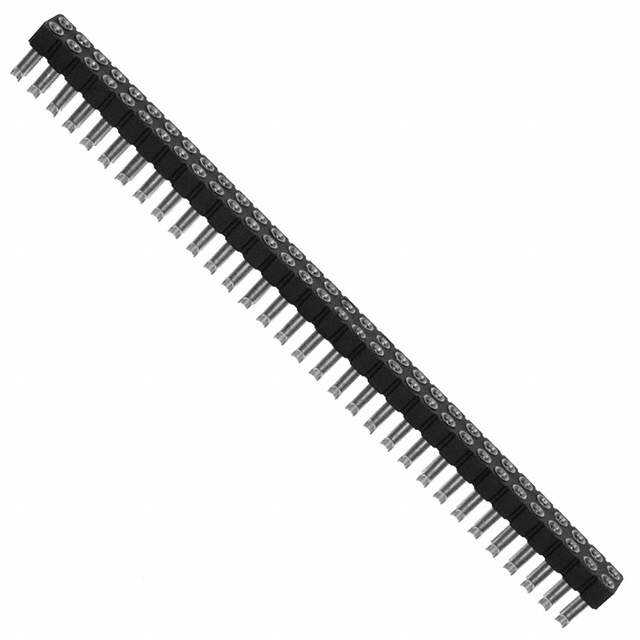

Mill-Max Manufacturing Corp. 429-43-264-41-540000	200 µin	5.08 µm	Beryllium Copper	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	64	0.1 "	2.54 mm	Receptacle	All	Female Socket	Tin	Black	0.1 in	2.54 mm	Push-Pull	0.76 Ám	30 Áin	-55 C	125 °C	0.18 in	4.57 mm	Through Hole	3 A	2	UL94 V-0
Mill-Max Manufacturing Corp. 429-43-252-41-540000	200 µin	5.08 µm	Beryllium Copper	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	52	0.1 "	2.54 mm	Receptacle	All	Female Socket	Tin	Black	0.1 in	2.54 mm	Push-Pull	0.76 Ám	30 Áin	-55 C	125 °C	0.18 in	4.57 mm	Through Hole	3 A	2	UL94 V-0
Mill-Max Manufacturing Corp. 429-43-254-41-540000	200 µin	5.08 µm	Beryllium Copper	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	54	0.1 "	2.54 mm	Receptacle	All	Female Socket	Tin	Black	0.1 in	2.54 mm	Push-Pull	0.76 Ám	30 Áin	-55 C	125 °C	0.18 in	4.57 mm	Through Hole	3 A	2	UL94 V-0
Mill-Max Manufacturing Corp. 429-43-218-41-540000	200 µin	5.08 µm	Beryllium Copper	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	18	0.1 "	2.54 mm	Receptacle	All	Female Socket	Tin	Black	0.1 in	2.54 mm	Push-Pull	0.76 Ám	30 Áin	-55 C	125 °C	0.18 in	4.57 mm	Through Hole	3 A	2	UL94 V-0
Mill-Max Manufacturing Corp. 429-43-228-41-540000	200 µin	5.08 µm	Beryllium Copper	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	28	0.1 "	2.54 mm	Receptacle	All	Female Socket	Tin	Black	0.1 in	2.54 mm	Push-Pull	0.76 Ám	30 Áin	-55 C	125 °C	0.18 in	4.57 mm	Through Hole	3 A	2	UL94 V-0

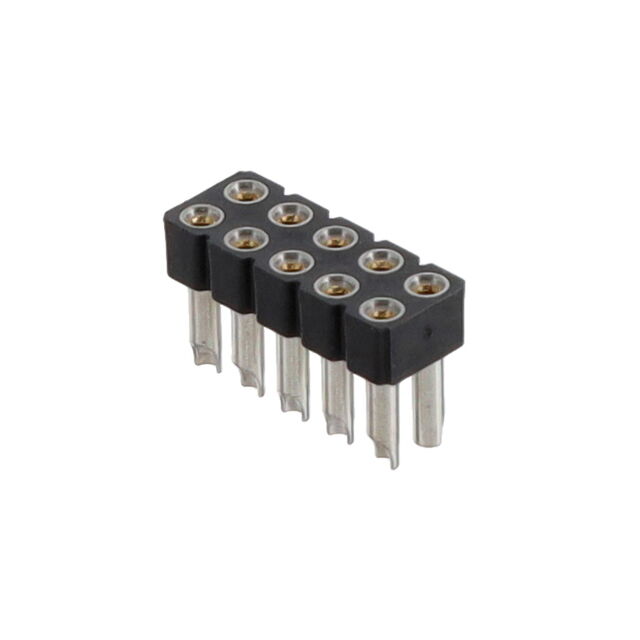

Mill-Max Manufacturing Corp. 429-43-210-41-540000	200 µin	5.08 µm	Beryllium Copper	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	10	0.1 "	2.54 mm	Receptacle	All	Female Socket	Tin	Black	0.1 in	2.54 mm	Push-Pull	0.76 Ám	30 Áin	-55 C	125 °C	0.18 in	4.57 mm	Through Hole	3 A	2	UL94 V-0
Mill-Max Manufacturing Corp. 429-43-222-41-540000	200 µin	5.08 µm	Beryllium Copper	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	22	0.1 "	2.54 mm	Receptacle	All	Female Socket	Tin	Black	0.1 in	2.54 mm	Push-Pull	0.76 Ám	30 Áin	-55 C	125 °C	0.18 in	4.57 mm	Through Hole	3 A	2	UL94 V-0
Mill-Max Manufacturing Corp. 429-43-220-41-540000	200 µin	5.08 µm	Beryllium Copper	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	20	0.1 "	2.54 mm	Receptacle	All	Female Socket	Tin	Black	0.1 in	2.54 mm	Push-Pull	0.76 Ám	30 Áin	-55 C	125 °C	0.18 in	4.57 mm	Through Hole	3 A	2	UL94 V-0
Mill-Max Manufacturing Corp. 429-43-246-41-540000	200 µin	5.08 µm	Beryllium Copper	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	46	0.1 "	2.54 mm	Receptacle	All	Female Socket	Tin	Black	0.1 in	2.54 mm	Push-Pull	0.76 Ám	30 Áin	-55 C	125 °C	0.18 in	4.57 mm	Through Hole	3 A	2	UL94 V-0
Mill-Max Manufacturing Corp. 429-43-248-41-540000	200 µin	5.08 µm	Beryllium Copper	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	48	0.1 "	2.54 mm	Receptacle	All	Female Socket	Tin	Black	0.1 in	2.54 mm	Push-Pull	0.76 Ám	30 Áin	-55 C	125 °C	0.18 in	4.57 mm	Through Hole	3 A	2	UL94 V-0
