Phone Connectors 3.5MM STEREO HORIZ.N
Phone Connectors 3.5MM STEREO HORIZ.N
| Part | Internal Switch(s) | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Contact Material - Plating [custom] | Body Material | Contact Material | Termination | Mounting Type | Body Color | Gender | Housing Material | Shielding | Actual Diameter [diameter] | Actual Diameter [diameter] | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Signal Lines | Connector Type | Number of Positions/Contacts | Features | Thread Size | Includes | Internal Switch(s) | Number of Positions/Contacts |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switchcraft Inc. | Two Switches | 0.141 " | 0.125 " | 3.5 mm | Silver | Brass | Copper Alloy | Solder | Through Hole Right Angle | Black Silver | Female | Polybutylene Terephthalate (PBT) Glass Filled | Unshielded | 0.142 in | 3.6 mm | 3 | 5 | Stereo | Phone Jack | ||||||
 Switchcraft Inc. | Single Switch | 0.141 " | 0.125 " | 3.5 mm | Silver | Brass | Copper Alloy | Solder | Panel Mount Right Angle Through Hole | Black Silver | Female | Polybutylene Terephthalate (PBT) | Unshielded | 0.142 in | 3.6 mm | Mono | Phone Jack | 2 Conductors 3 Conductors | Mounting Hardware Thread Lock | M6 | Connector Nut Washer | ||||
 Switchcraft Inc. | 0.141 " | 0.125 " | 3.5 mm | Silver | Brass | Copper Alloy | Solder | Through Hole Right Angle | Black Silver | Female | Polybutylene Terephthalate (PBT) | Unshielded | 0.142 in | 3.6 mm | 3 | 3 | Stereo | Phone Jack | |||||||
 Switchcraft Inc. | 0.141 " | 0.125 " | 3.5 mm | Silver | Brass | Copper Alloy | Solder | Through Hole Right Angle | Black Silver | Female | Polybutylene Terephthalate (PBT) | Unshielded | 0.142 in | 3.6 mm | 3 | 3 | Stereo | Phone Jack | |||||||
 Switchcraft Inc. | 0.141 " | 0.125 " | 3.5 mm | Silver | Brass | Copper Alloy | Solder | Through Hole Right Angle | Black Silver | Female | Polybutylene Terephthalate (PBT) Glass Filled | Unshielded | 0.142 in | 3.6 mm | 3 | 3 | Stereo | Phone Jack | |||||||
 Switchcraft Inc. | Two Switches | 0.141 " | 0.125 " | 3.5 mm | Silver | Brass | Copper Alloy | Solder | Panel Mount Right Angle Through Hole | Black Silver | Female | Polybutylene Terephthalate (PBT) Glass Filled | Unshielded | 0.142 in | 3.6 mm | 3 | 5 | Stereo | Phone Jack | Mounting Hardware Thread Lock | Connector Nut Washer | ||||
 Switchcraft Inc. | 0.141 " | 0.125 " | 3.5 mm | Silver | Brass | Copper Alloy | Solder | Panel Mount Right Angle Through Hole | Black Silver | Female | Polybutylene Terephthalate (PBT) Glass Filled | Unshielded | 0.142 in | 3.6 mm | 3 | 3 | Stereo | Phone Jack | Mounting Hardware Thread Lock | 1 Connector 1 Nut | |||||

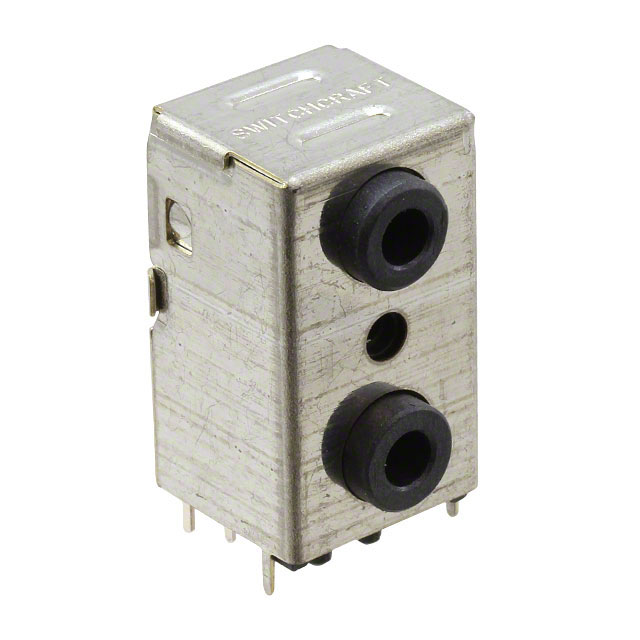

 Switchcraft Inc. | Two Switches | 0.141 " | 0.125 " | 3.5 mm | Silver | Copper Alloy | Copper Alloy | Solder | Through Hole Right Angle | Black Silver | Female | Liquid Crystal Polymer (LCP) | Shielded | 0.142 in | 3.6 mm | Stereo | Dual Phone Jack | 8 Positions | 2 Sets of 3 Conductors | ||||||
 Switchcraft Inc. | 0.141 " | 0.125 " | 3.5 mm | Silver | Brass | Copper Alloy | Solder | Panel Mount Right Angle Through Hole | Black Silver | Female | Polybutylene Terephthalate (PBT) | Unshielded | 0.142 in | 3.6 mm | 3 | 3 | Stereo | Phone Jack | Mounting Hardware Thread Lock | Connector Nut Washer | |||||
 Switchcraft Inc. | Single Switch | 0.141 " | 0.125 " | 3.5 mm | Silver | Brass | Copper Alloy | Solder | Through Hole Right Angle | Black Silver | Female | Polybutylene Terephthalate (PBT) | Unshielded | 0.142 in | 3.6 mm | Mono | Phone Jack | 2 Conductors 3 Conductors |
