SM04B-ZE Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

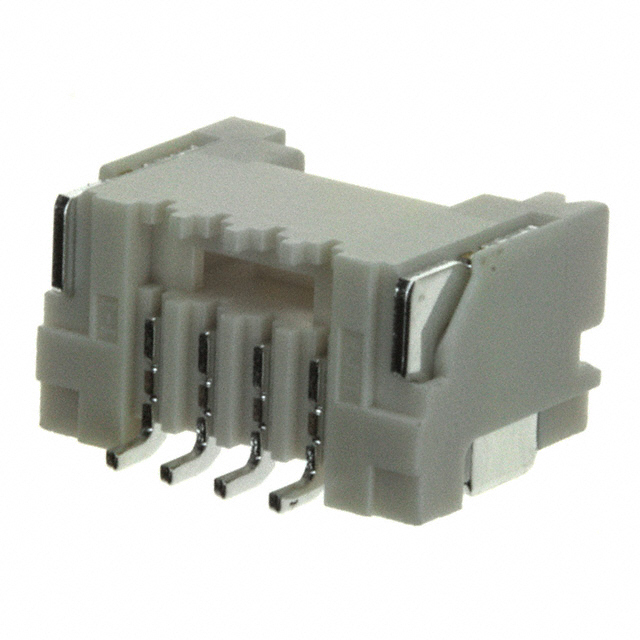

CONN HEADER SMD R/A 4POS 1.5MM
| Part | Fastening Type | Voltage Rating | Connector Type | Style | Material Flammability Rating | Insulation Color | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Insulation Material | Number of Positions | Contact Finish - Post | Insulation Height [z] | Insulation Height [z] | Contact Material | Features | Current Rating (Amps) | Mounting Type | Contact Shape | Termination | Number of Positions Loaded | Shrouding | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Locking Ramp | 100 V | Header | Board to Cable/Wire | UL94 V-0 | Natural | 85 °C | -25 °C | 1 | Nylon Polyamide (PA) | 4 | Tin | 0.228 " | 5.8 mm | Copper Alloy | Solder Retention | 2 A | Right Angle Surface Mount | Rectangular | Solder | All | Shrouded - 4 Wall | Outer Shroud Contact |
