PPTC142 Series

Catalog

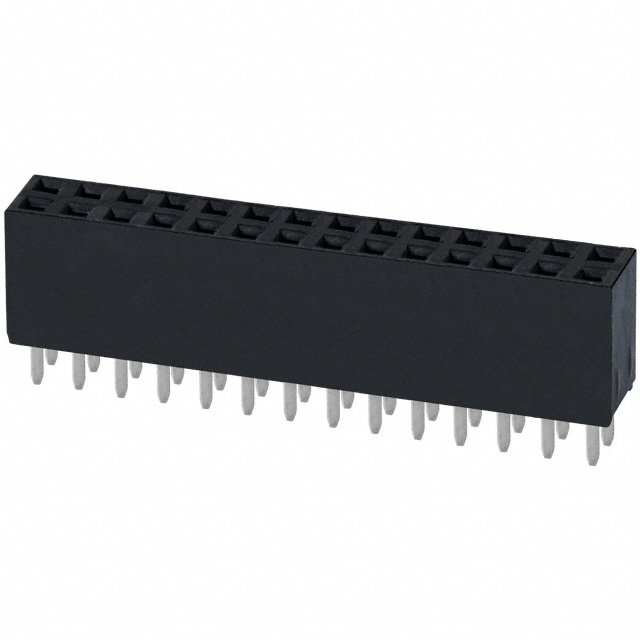

CONN HDR 28POS 0.1 TIN PCB

Part	Contact Material	Contact Shape	Insulation Material	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Number of Rows [custom]	Material Flammability Rating	Contact Finish - Post	Insulation Height	Insulation Height	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Voltage Rating	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Current Rating (Amps)	Connector Type
Sullins Connector Solutions PPTC142LFBN	Phosphor Bronze	Square	Polyester	Black	0.1 "	2.54 mm	Female Socket	0.1 in	2.54 mm	Through Hole	2	UL94 V-0	Tin	0.335 "	8.51 mm	Solder	-40 C	105 ░C	28	250 V	Push-Pull	0.126 "	3.2 mm	All	3 A	Header
