CBT-90 Series

Catalog

LED MOD CBT-90 CL WH RECT 6500K

Part	Height	CCT (K)	Current - Test	Size / Dimension Length	Size / Dimension Width	Current - Max	Configuration	Features	Lens Type	Light Emitting Surface (LES) Length	Light Emitting Surface (LES) Width	Voltage - Forward (Vf) (Typ)	Color	Type	CRI (Color Rendering Index) (Typ)	Temperature - Test	Lumens/Watt	Luminous Flux (Minimum)	Luminous Flux	Luminous Flux (Maximum)	Wavelength	Wavelength (Nominal)	Wavelength (Maximum)	Wavelength (Minimum)	Luminous Flux (Typical)
Luminus Devices Inc. CBT-90-W65S-C11-NB100	4.08 mm	6500 K	9 A	28 mm	26.75 mm	18 A	Rectangle	With Connector	Flat	3 mm	3 mm	3.6 V	Cool White	LED Module	70

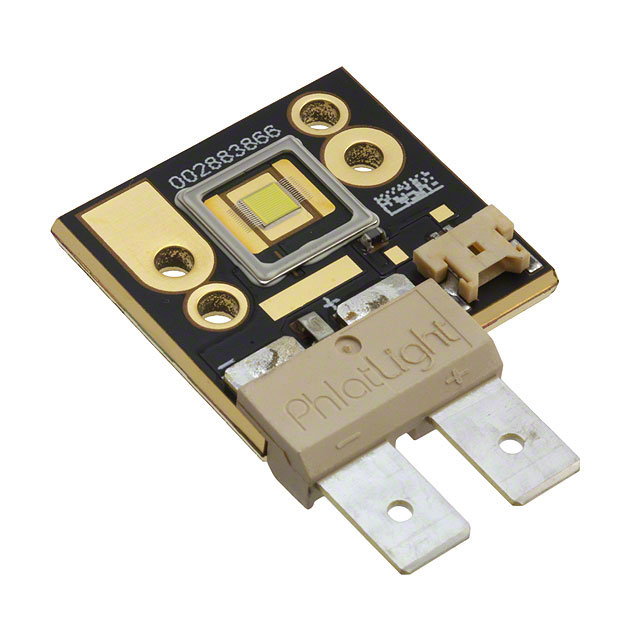

Luminus Devices Inc. CBT-90-W65S-C11-NA100	4.08 mm	6500 K	9 A	28 mm	26.75 mm	18 A	Rectangle	With Connector	Flat	3 mm	3 mm	3.6 V	Cool White	LED Module	70
Luminus Devices Inc. CBT-90-G-L11-CM101-R2	4.08 mm		13.5 A	28 mm	26.75 mm	27 A	Rectangle	With Connector	Flat	3 mm	3 mm	3.1 V	Green	LED Module		40 °C	35 lm/W	2000 lm	2150 lm	2300 lm	527 nm
Luminus Devices Inc. CBT-90-RX-L15-BN100	4.08 mm		13.5 A	28 mm	26.75 mm	27 A	Rectangle	With Connector	Flat	3 mm	3 mm	2.8 V	Red	LED Module		40 °C	28 lm/W	970 lm	1060 lm	1150 lm	621 nm	621 nm	631 nm	611 nm

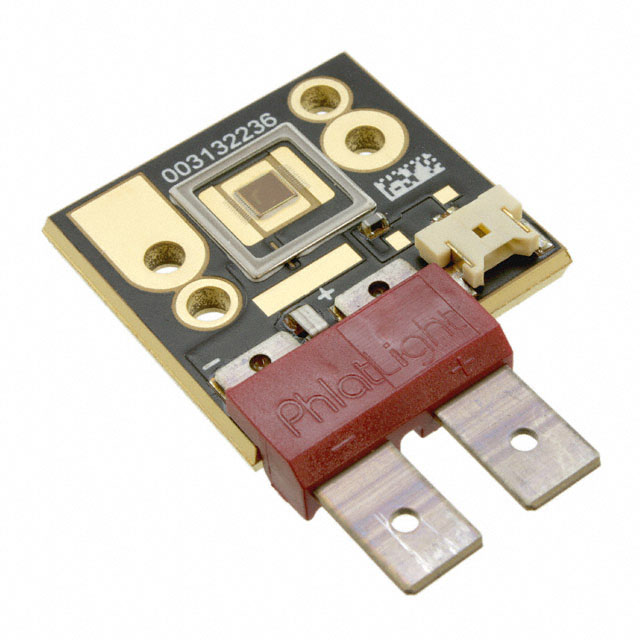

Luminus Devices Inc. CBT-90-R-C11-HH100	4.08 mm		13.5 A	28 mm	26.75 mm	18 A	Rectangle	With Connector	Flat	3 mm	3 mm	2.5 V	Red	LED Module		40 °C	27 lm/W								900 lm
Luminus Devices Inc. CBT-90-B-L11-J101	4.08 mm		13.5 A	28 mm	26.75 mm	27 A	Rectangle	With Connector	Flat	3 mm	3 mm	3.5 V	Blue	LED Module		40 °C					455 nm	455 nm	460 nm	450 nm
Luminus Devices Inc. CBT-90-W65S-C11-NA102	4.08 mm	6500 K	9 A	28 mm	26.75 mm	18 A	Rectangle	With Connector	Flat	3 mm	3 mm	3.6 V	Cool White	LED Module	70
Luminus Devices Inc. CBT-90-RX-L15-BN101	4.08 mm		13.5 A	28 mm	26.75 mm	27 A	Rectangle	With Connector	Flat	3 mm	3 mm	2.8 V	Red	LED Module		40 °C	28 lm/W	970 lm	1060 lm	1150 lm	621 nm	621 nm	627 nm	615 nm
Luminus Devices Inc. CBT-90-B-L11-J100	4.08 mm		13.5 A	28 mm	26.75 mm	27 A	Rectangle	With Connector	Flat	3 mm	3 mm	3.5 V	Blue	LED Module		40 °C					458 nm	458 nm	470 nm	445 nm
Luminus Devices Inc. CBT-90-B-L11-H101	4.08 mm		13.5 A	28 mm	26.75 mm	27 A	Rectangle	With Connector	Flat	3 mm	3 mm	3.5 V	Blue	LED Module		40 °C					455 nm	455 nm	460 nm	450 nm
