ERA-3EED Series

Catalog

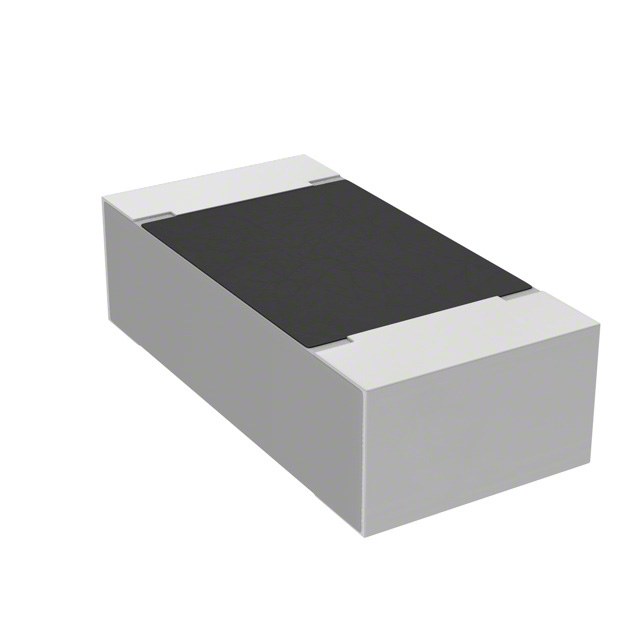

RES SMD 1.58KOHM 0.5% 1/10W 0603

Part	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Terminations	Power (Watts)	Power (Watts)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Composition	Temperature Coefficient	Resistance
Panasonic Industrial Automation Sales ERA-3EED1581V	0603 (1608 Metric)	0.8 mm	0.063 in	1.6 mm	0.031 in	-55 °C	125 °C	2	0.1 W	0.1 W	0.022 in	0.55 mm	Thin Film	25 ppm/°C	1.58 kOhms
Panasonic Industrial Automation Sales ERA-3EED5361V	0603 (1608 Metric)	0.8 mm	0.063 in	1.6 mm	0.031 in	-55 °C	125 °C	2	0.1 W	0.1 W	0.022 in	0.55 mm	Thin Film	25 ppm/°C	5.36 kOhms
Panasonic Industrial Automation Sales ERA-3EED3651V	0603 (1608 Metric)	0.8 mm	0.063 in	1.6 mm	0.031 in	-55 °C	125 °C	2	0.1 W	0.1 W	0.022 in	0.55 mm	Thin Film	25 ppm/°C	3.65 kOhms
Panasonic Industrial Automation Sales ERA-3EED3481V	0603 (1608 Metric)	0.8 mm	0.063 in	1.6 mm	0.031 in	-55 °C	125 °C	2	0.1 W	0.1 W	0.022 in	0.55 mm	Thin Film	25 ppm/°C	3.48 kOhms
Panasonic Industrial Automation Sales ERA-3EED4750V	0603 (1608 Metric)	0.8 mm	0.063 in	1.6 mm	0.031 in	-55 °C	125 °C	2	0.1 W	0.1 W	0.022 in	0.55 mm	Thin Film	25 ppm/°C	475 Ohms
Panasonic Industrial Automation Sales ERA-3EED3091V	0603 (1608 Metric)	0.8 mm	0.063 in	1.6 mm	0.031 in	-55 °C	125 °C	2	0.1 W	0.1 W	0.022 in	0.55 mm	Thin Film	25 ppm/°C	3.09 kOhms
