HDP12 Series

Manufacturer: HDP Power

Catalog

AC/DC WALL MOUNT ADAPTER 5V 12W

Part	Input Connector	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output (Max) [Max]	Input Type	Form	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	Output Connector	Voltage - Output	Region Utilized	Efficiency

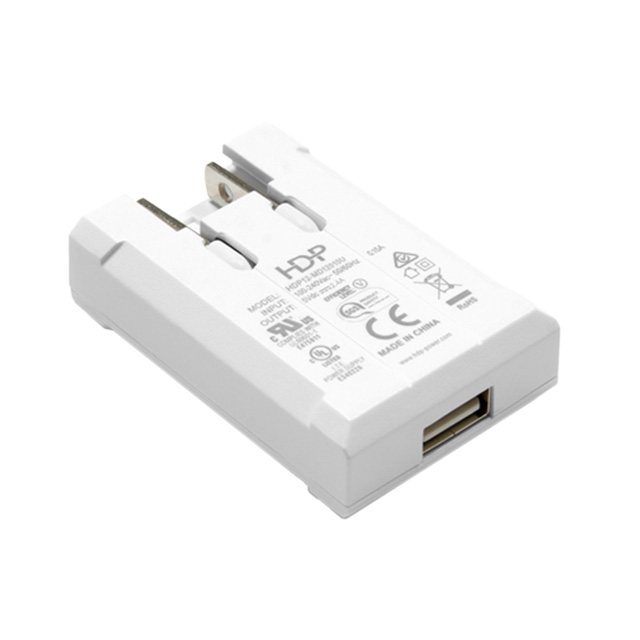

HDP Power HDP12-MD-WUSB-4	Multi-Blade Multi-Blade (Sold Separately)	ITE (Commercial) Medical	50 °C	0 °C	264 VAC	90 VAC	2.4 A	Multi-Blade (Sold Separately)	Wall Mount	C-Tick CB CE cULus SAA	18.5 mm	60.3 mm	2.37 in	1.64 "	41.8 mm	0.73 "	12 W	USB A Receptacle	5 V	International	Level VI

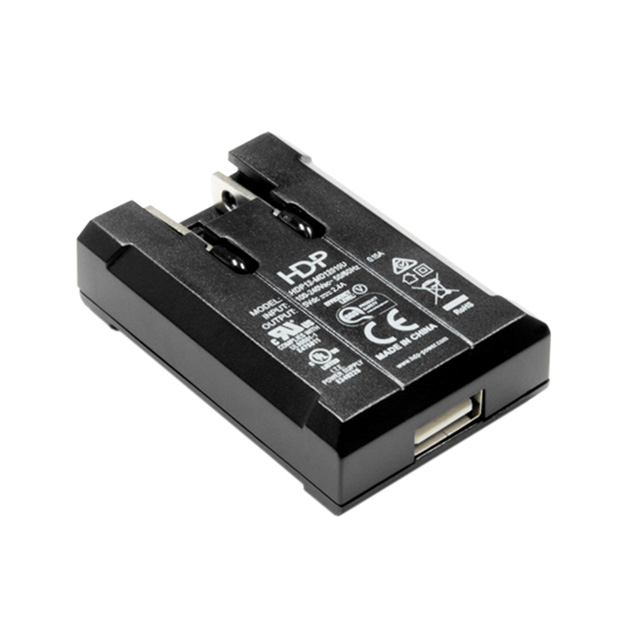

HDP Power HDP12-MD-BUSB-4	Multi-Blade Multi-Blade (Sold Separately)	ITE (Commercial) Medical	50 °C	0 °C	264 VAC	90 VAC	2.4 A	Multi-Blade (Sold Separately)	Wall Mount	C-Tick CB CE cULus SAA	18.5 mm	60.3 mm	2.37 in	1.64 "	41.8 mm	0.73 "	12 W	USB A Receptacle	5 V	International	Level VI
