055917 Series

Manufacturer: Molex

Catalog

2.0 WTB DUAL CONN DIPPLGHSGASSY3

Part	Applications	Shrouding	Insulation Material	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Contact Length - Mating	Contact Length - Mating	Connector Type	Mated Stacking Heights	Number of Positions Loaded	Insulation Color	Contact Finish - Post	Style	Fastening Type	Contact Shape	Contact Type	Termination	Insulation Height	Insulation Height	Mounting Type	Material Flammability Rating	Number of Rows	Contact Length - Post	Contact Length - Post [x]	Row Spacing - Mating	Row Spacing - Mating	Overall Contact Length	Overall Contact Length	Contact Material	Features
Molex 0559173214

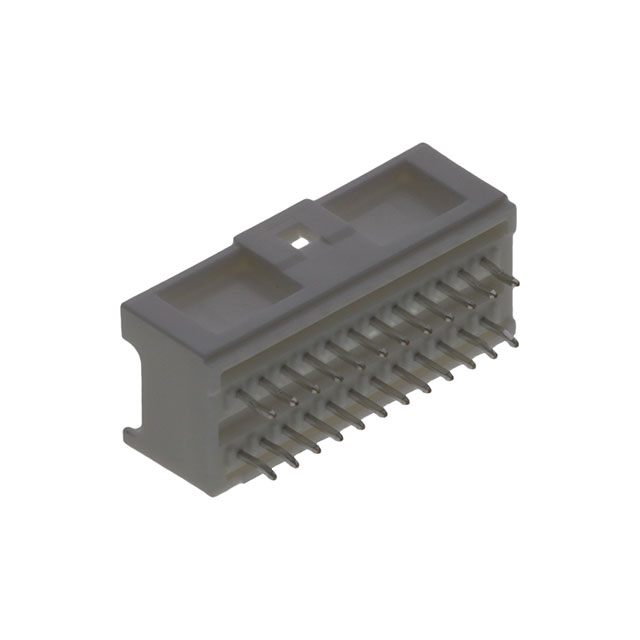

Molex 0559172430	General Purpose Industrial Medical	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT) Glass Filled	0.079 in	2 mm	24	0.15 in	3.81 mm	Header	13.2 mm	All	Natural	Tin	Board to Cable/Wire	Latch Holder	Square	Male Pin	Kinked Pin Solder	0.384 in	9.75 mm	Through Hole	UL94 V-0	2	3.2 mm	0.126 in	5 mm	0.197 in	0.366 in	9.3 mm	Brass
Molex 0559171011
Molex 0559173630	General Purpose Industrial Medical	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT) Glass Filled	0.079 in	2 mm	36	0.15 in	3.81 mm	Header	13.2 mm	All	Natural	Tin	Board to Cable/Wire	Latch Holder	Square	Male Pin	Kinked Pin Solder	0.384 in	9.75 mm	Through Hole	UL94 V-0	2	3.2 mm	0.126 in	5 mm	0.197 in	0.366 in	9.3 mm	Brass

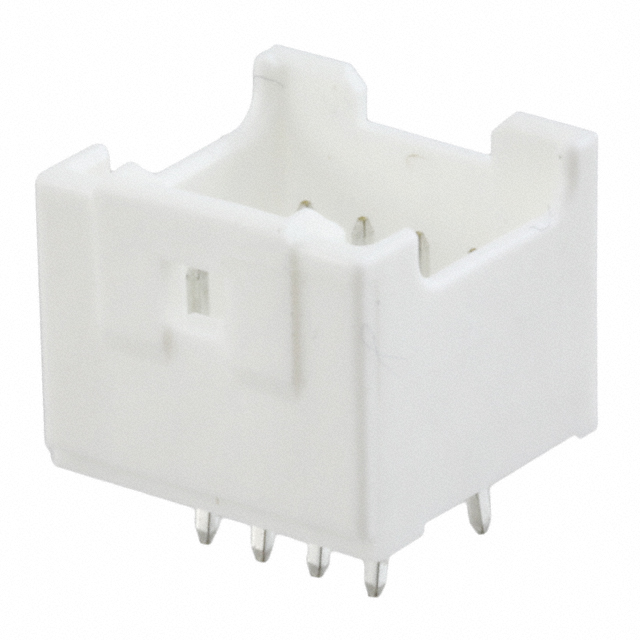

Molex 0559170810	General Purpose Industrial Medical	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT) Glass Filled	0.079 in	2 mm	8	0.15 in	3.81 mm	Header	13.2 mm	All	Natural	Tin	Board to Cable/Wire	Latch Holder	Square	Male Pin	Kinked Pin Solder	0.384 in	9.75 mm	Through Hole	UL94 V-0	2	3.2 mm	0.126 in	5 mm	0.197 in	0.366 in	9.3 mm	Brass	Board Guide
Molex 0559171414
Molex 0559171614
Molex 0559171016
Molex 0559171213
Molex 0559171217
