EEE-FTV Series

Catalog

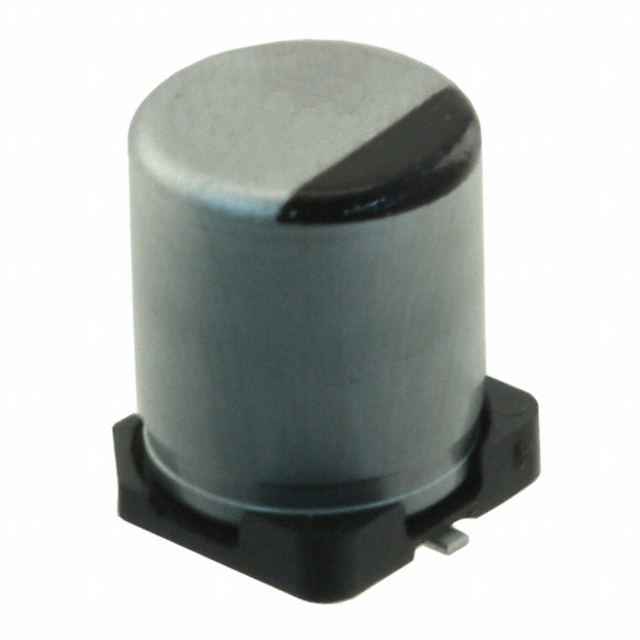

CAP ALUM 150UF 20% 35V SMD

Part	Ratings	Ripple Current @ High Frequency	Lifetime @ Temp.	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Polarization	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Capacitance	ESR (Equivalent Series Resistance)	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Tolerance	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]
Panasonic Industrial Automation Sales EEE-FTV151XAP	AEC-Q200	600 mA	2000 Hrs	Radial Can - SMD	105 ░C	-55 °C	Surface Mount	Polar	390 mA	8 mm	0.315 in	Automotive	150 µF	160 mOhm	0.248 in	6.3 mm	35 V	20 %	0.26 in	6.6 mm	6.6 mm	0.26 in
Panasonic Industrial Automation Sales EEE-FTV151XAV	AEC-Q200	600 mA	2000 Hrs	Radial Can - SMD	105 ░C	-55 °C	Surface Mount	Polar	390 mA	8.3 mm	0.327 in	Automotive High Temperature Reflow	150 µF	160 mOhm	0.248 in	6.3 mm	35 V	20 %	0.26 in	6.6 mm	6.6 mm	0.26 in
