9WS0812 Series

Catalog

FAN AXIAL 80X25MM 12VDC WIRE

Part	Material - Blade	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Lifetime @ Temp.	Approval Agency	Voltage - Rated	Size / Dimension [z]	Size / Dimension [x]	Fan Type	Weight [custom]	Weight [custom]	Features	Power (Watts)	Termination	Bearing Type	Width [y]	Ingress Protection	Air Flow	Air Flow	Operating Temperature [Min]	Operating Temperature [Max]	RPM	Noise	Static Pressure	Static Pressure
Sanyo Denki America Inc. 9WS0812M401	Plastic	100 mA	10.2 VDC	13.8 VDC	Plastic	40000 Hrs	CSA TUV UL	12 VDC	80 mm	80 mm	Tubeaxial	0.265 lb	120.2 g	Speed Sensor (Tach)	1.2 W	3 Wire Leads	Ball	25 mm	IP54 - Dust Protected Water Resistant	23 CFM	0.644 m³/min	-20 ░C	70 °C	2200 RPM	23 dB(A)	0.094 in H2O	23.5 Pa
Sanyo Denki America Inc. 9WS0812M402	Plastic	100 mA	10.2 VDC	13.8 VDC	Plastic	40000 Hrs	CSA TUV UL	12 VDC	80 mm	80 mm	Tubeaxial	0.265 lb	120.2 g		1.2 W	2 Wire Leads	Ball	25 mm	IP54 - Dust Protected Water Resistant	23 CFM	0.644 m³/min	-20 ░C	70 °C	2200 RPM	23 dB(A)	0.094 in H2O	23.5 Pa
Sanyo Denki America Inc. 9WS0812H402	Plastic		10.2 VDC	13.8 VDC	Plastic	40000 Hrs	CSA TUV UL	12 VDC	80 mm	80 mm	Tubeaxial	0.265 lb	120.2 g		1.92 W	2 Wire Leads	Ball	25 mm	IP54 - Dust Protected Water Resistant	33.2 CFM	0.93 mł/min	-10 °C	60 °C	3100 RPM	32 dB	0.181 in H2O	45.1 Pa

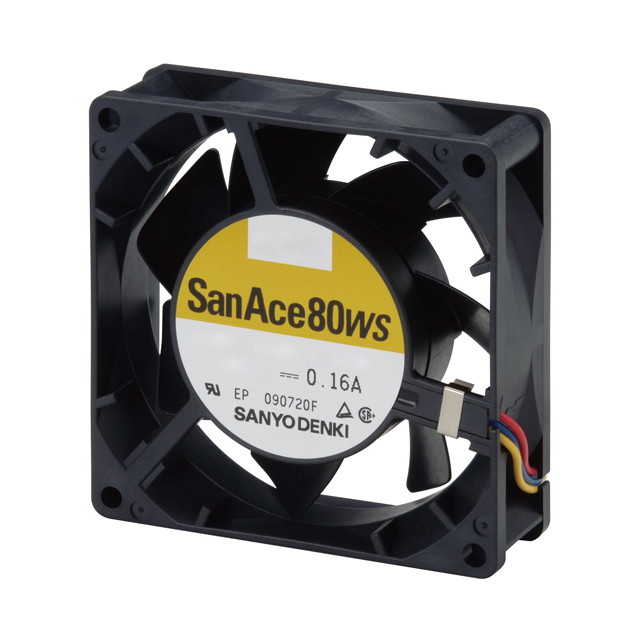

Sanyo Denki America Inc. 9WS0812F401	Plastic		10.2 VDC	13.8 VDC	Plastic	40000 Hrs	CSA TUV UL	12 VDC	80 mm	80 mm	Tubeaxial	0.265 lb	120.2 g	Speed Sensor (Tach)	1.56 W	3 Wire Leads	Ball	25 mm	IP54 - Dust Protected Water Resistant	29.3 CFM	0.82 m³/min	-20 ░C	70 °C	2700 RPM	28 dB	0.138 in H2O	34.3 Pa
Sanyo Denki America Inc. 9WS0812F402	Plastic		10.2 VDC	13.8 VDC	Plastic	40000 Hrs	CSA TUV UL	12 VDC	80 mm	80 mm	Tubeaxial	0.265 lb	120.2 g		1.56 W	2 Wire Leads	Ball	25 mm	IP54 - Dust Protected Water Resistant	29.3 CFM	0.82 m³/min	-20 ░C	70 °C	2700 RPM	28 dB	0.138 in H2O	34.3 Pa
Sanyo Denki America Inc. 9WS0812H401	Plastic		10.2 VDC	13.8 VDC	Plastic	40000 Hrs	CSA TUV UL	12 VDC	80 mm	80 mm	Tubeaxial	0.265 lb	120.2 g	Speed Sensor (Tach)	1.92 W	3 Wire Leads	Ball	25 mm	IP54 - Dust Protected Water Resistant	33.2 CFM	0.93 mł/min	-20 ░C	70 °C	3100 RPM	32 dB	0.181 in H2O	45.1 Pa
Sanyo Denki America Inc. 9WS0812H4021	Plastic		10.2 VDC	13.8 VDC	Plastic	40000 Hrs	CSA TUV UL	12 VDC	80 mm	80 mm	Tubeaxial	0.265 lb	120.2 g		1.92 W	2 Wire Leads	Ball	25 mm	IP54 - Dust Protected Water Resistant	33.2 CFM	0.93 mł/min	-20 ░C	70 °C	3100 RPM	32 dB	0.181 in H2O	45.1 Pa
