RA11131 Series
Manufacturer: E-Switch
Beta
⌘K
ROCKER; SPST; POS: 2; OFF-ON; 5.5A/250VAC; BLACK; RA1; -20÷105°C
| Part | Electrical Life | Actuator Marking | Voltage Rating - AC | Current Rating (Amps) | Approval Agency | Termination Style | Switch Function | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Actuator Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Color - Actuator/Cap | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 10000 Cycles | ON OFF | 125 V | 10 A | cULus | Quick Connect | On-Off | 19.4 mm | 13.1 mm | Concave (Curved) | Panel Mount Snap-In | 55 °C | -20 ░C | Black | SPST |

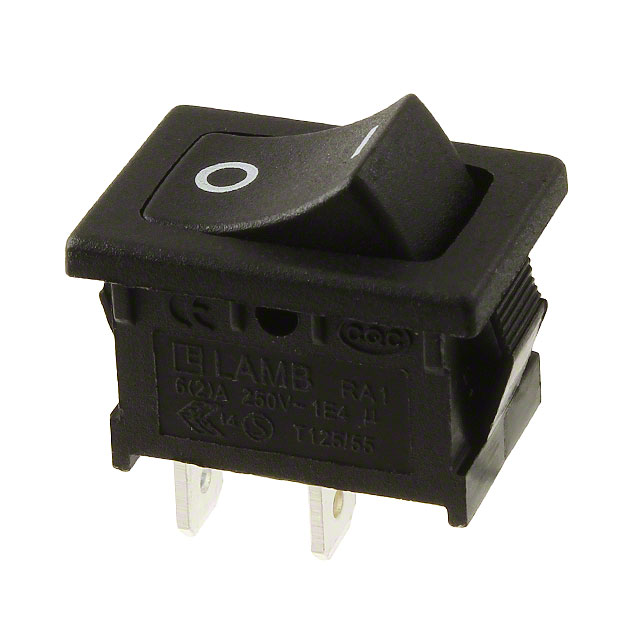

 E-Switch | 10000 Cycles | O I | 125 V | 10 A | cULus | Quick Connect | On-Off | 19.4 mm | 13.1 mm | Concave (Curved) | Panel Mount Snap-In | 55 °C | -20 ░C | Black | SPST |

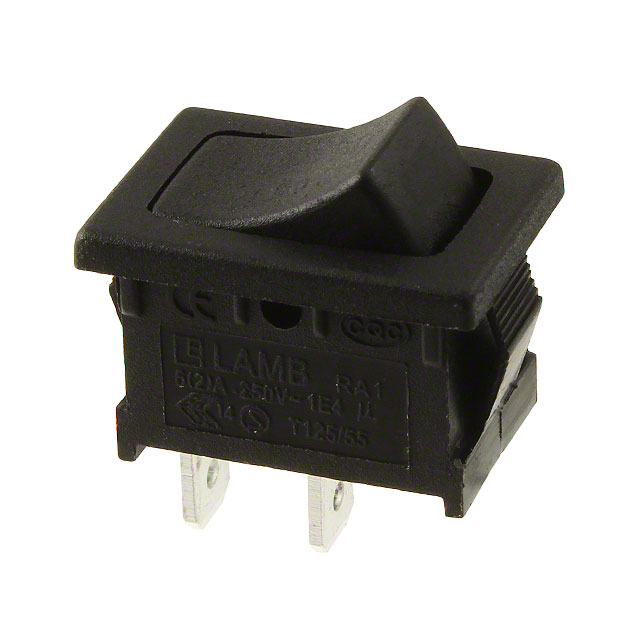

 E-Switch | 10000 Cycles | No Marking | 125 V | 10 A | cULus | Quick Connect | On-Off | 19.4 mm | 13.1 mm | Concave (Curved) | Panel Mount Snap-In | 55 °C | -20 ░C | Black | SPST |
