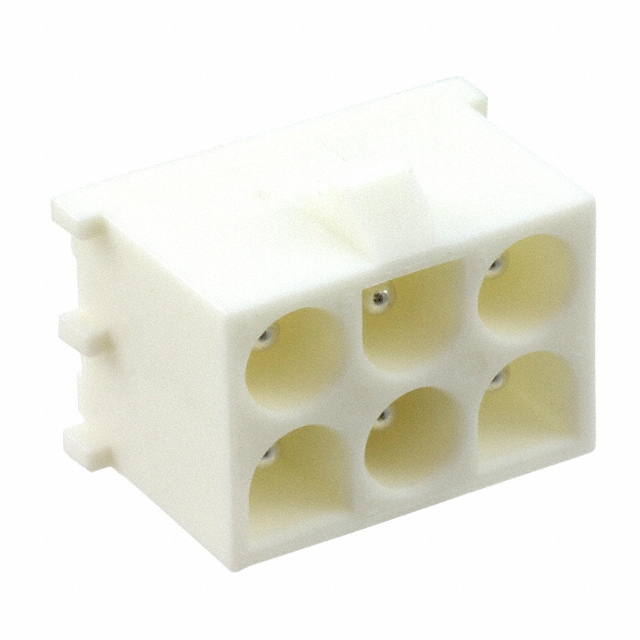

194002 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
PIN ASSY..070
| Part | Number of Rows | Pitch - Mating | Pitch - Mating | Contact Length - Post | Contact Length - Post | Connector Type | Row Spacing - Mating | Row Spacing - Mating | Applications | Shrouding | Material Flammability Rating | Fastening Type | Mounting Type | Termination | Insulation Height | Insulation Height | Contact Shape | Number of Positions Loaded | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Style | Operating Temperature [Max] | Operating Temperature [Min] | Features | Contact Finish - Mating | Contact Type | Insulation Material | Contact Length - Post [x] | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 2 | 6.35 mm | 0.25 in | 0.145 in | 3.68 mm | Header | 0.25 in | 6.35 mm | General Purpose | Shrouded - 4 Wall | UL94 V-0 | Locking Ramp | Through Hole | Solder | 0.55 in | 13.97 mm | Circular | All | Copper Alloy | 5.08 µm | 200 µin | 6 | Board to Board Cable | 105 ░C | -55 °C | Board Guide | Silver | Male Pin | Nylon Polyamide (PA) | ||
TE Connectivity Raychem Cable Protection | 2 | 6.35 mm | 0.25 in | Header | 0.25 in | 6.35 mm | General Purpose | Shrouded - 4 Wall | UL94 V-0 | Locking Ramp | Through Hole | Solder | 0.55 in | 13.97 mm | Circular | All | Copper Alloy | 5.08 µm | 200 µin | 6 | Board to Board Cable | 105 ░C | -55 °C | Board Guide | Silver | Male Pin | Nylon Polyamide (PA) | 0.205 in | 5.21 mm |
