4N25 Series

Catalog

OPTOISO 5.3KV TRANS W/BASE 6DIP

Part	Vce Saturation (Max) [Max]	Turn On / Turn Off Time (Typ)	Supplier Device Package	Voltage - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current Transfer Ratio (Min) [Min]	Package / Case	Package / Case	Package / Case	Input Type	Current - DC Forward (If) (Max) [Max]	Voltage - Forward (Vf) (Typ)	Number of Channels	Voltage - Isolation	Mounting Type	Package / Case

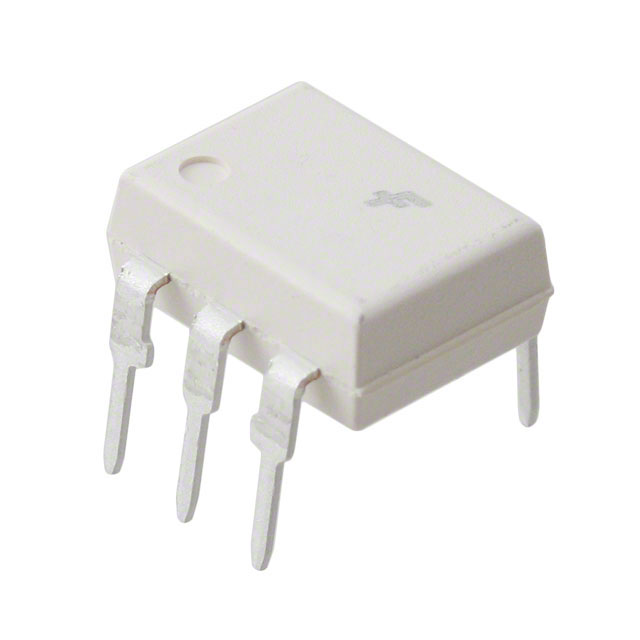

ON Semiconductor 4N25300W	500 mV	2 µs	6-DIP	30 V	100 °C	-55 °C	20 %	6-DIP	10.16 mm	10.16 mm	DC	100 mA	1.18 V	1	5300 Vrms	Through Hole

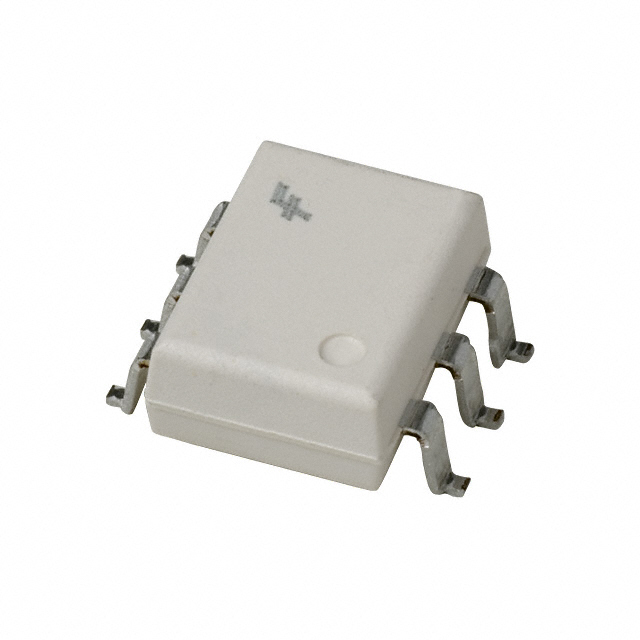

ON Semiconductor 4N25FR2VM	500 mV	2 µs	6-SMD	30 V	100 °C	-55 °C	20 %	6-SMD Gull Wing			DC	60 mA	1.18 V	1	7500 Vpk	Surface Mount
ON Semiconductor 4N25S	500 mV	2 µs	6-SMD	30 V	100 °C	-55 °C	20 %	6-SMD Gull Wing			DC	100 mA	1.18 V	1	5300 Vrms	Surface Mount
ON Semiconductor 4N253SD	500 mV	2 µs	6-SMD	30 V	100 °C	-55 °C	20 %	6-SMD Gull Wing			DC	100 mA	1.18 V	1	5300 Vrms	Surface Mount
ON Semiconductor 4N25FR2M	500 mV	2 µs	6-SMD	30 V	100 °C	-55 °C	20 %	6-SMD Gull Wing			DC	60 mA	1.18 V	1	7500 Vpk	Surface Mount
ON Semiconductor 4N25FM	500 mV	2 µs	6-SMD	30 V	100 °C	-55 °C	20 %	6-SMD Gull Wing			DC	60 mA	1.18 V	1	7500 Vpk	Surface Mount
ON Semiconductor 4N25W	500 mV	2 µs	6-DIP	30 V	100 °C	-55 °C	20 %	6-DIP	10.16 mm	10.16 mm	DC	100 mA	1.18 V	1	5300 Vrms	Through Hole
ON Semiconductor 4N25FVM	500 mV	2 µs	6-SMD	30 V	100 °C	-55 °C	20 %	6-SMD Gull Wing			DC	60 mA	1.18 V	1	7500 Vpk	Surface Mount
ON Semiconductor 4N25M	500 mV	2 µs	6-DIP	30 V	100 °C	-40 °C	20 %	6-DIP		7.62 mm	DC	60 mA	1.18 V	1	4170 Vrms	Through Hole	0.3 in
