2271014 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

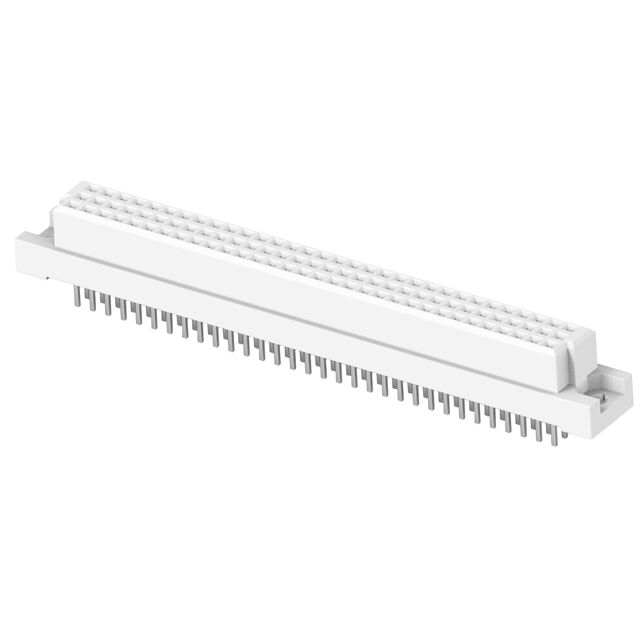

CELLO, REC HDR, 64PIN, TH, V, FG
| Part | Current Rating (Amps) | Number of Positions | Material - Insulation | Contact Finish | Pitch [x] | Pitch [x] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions Loaded | Connector Type | Features | Termination | Level, Class | Style | Material Flammability Rating | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 2 A | 64 | Thermoplastic | Gold | 2.54 mm | 0.1 in | 105 ░C | -55 °C | All | Receptacle Female Sockets | Mounting Clips | Solder | 3 | C | UL94 V-0 | 2 | 0.76 Ám | 30 Áin | Through Hole | |
 TE Connectivity Raychem Cable Protection | 2 A | 96 | Gold | 2.54 mm | 0.1 in | 105 ░C | -55 °C | All | Receptacle Female Sockets | Mounting Clips | Solder | 3 | 0.076 Ám | 3 Áin | Through Hole | C |
