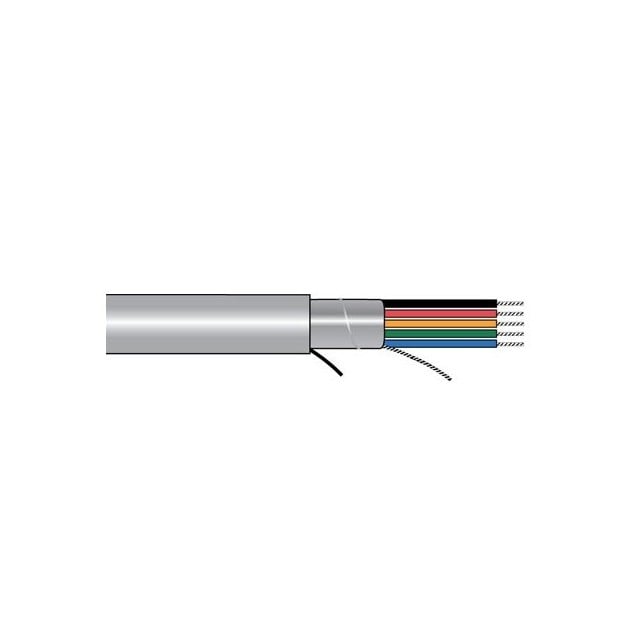

55499/11 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PR 22COND 24AWG FEET
| Part | Ratings | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Shield Type | Spool Size | Spool Size | Conductor Material | Conductor Insulation | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Jacket Color | Number of Conductors | Shield Coverage | Wire Gauge | Shield Material | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE | UL Style 20229 | Multi-Pair | 0.686 mm | 0.027 in | Drain Wire Rip Cord | Foil | 1000 ft | 304.8 m | Copper Tinned | Fluorinated Ethylene-Propylene (FEP) | Fluorinated Ethylene-Propylene (FEP) | 0.355 " | 9.02 mm | Enter Number of Feet in Order Quantity | 32 AWG | 7 | -80 °C | 200 °C | Natural | 22 | 100 % | 24 AWG | Aluminum | 300 V |
