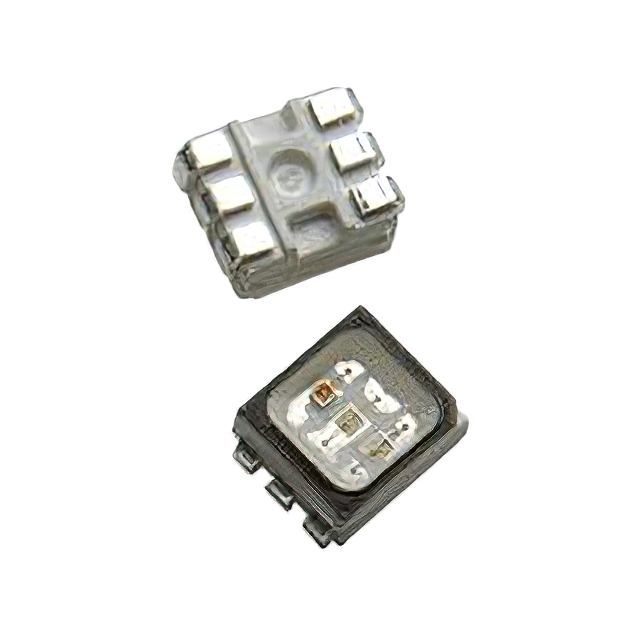

ASMT-YTC7 Series

Catalog

LED, RGB, 330/840/160MCD, PLCC ROHS COMPLIANT: YES

Part	Height (Max) [Max] [z]	Supplier Device Package	Current - Test	Package / Case	Color	Voltage - Forward (Vf) (Typ)	Lens Transparency	Size / Dimension [x]	Size / Dimension [y]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Lens Style	Lens Size	Mounting Type	Configuration	Viewing Angle	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]
Broadcom Limited ASMT-YTC7-0AA02	2 mm	6-PLCC	20mA Blue 20mA Green 20mA Red	6-SMD J-Lead	Blue Green Red	2.1 V 3.1 V 3.1 V	Diffused	3 mm	2.8 mm	160 mcd	330 mcd	840 mcd	630 nm	465 nm	522 nm	Square with Flat Top	2.3 mm	Surface Mount	Independent	110 °	469 nm	529 nm	623 nm
