845-060 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 60POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Card Thickness [Max] | Card Thickness [Min] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Card Type | Termination | Pitch | Pitch | Gender | Contact Type | Color | Flange Feature [diameter] | Flange Feature [diameter] | Number of Rows [custom] | Number of Positions/Bay/Row | Number of Positions | Read Out | Number of Rows | Number of Positions/Bay/Row [custom] | Flange Feature | Termination Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

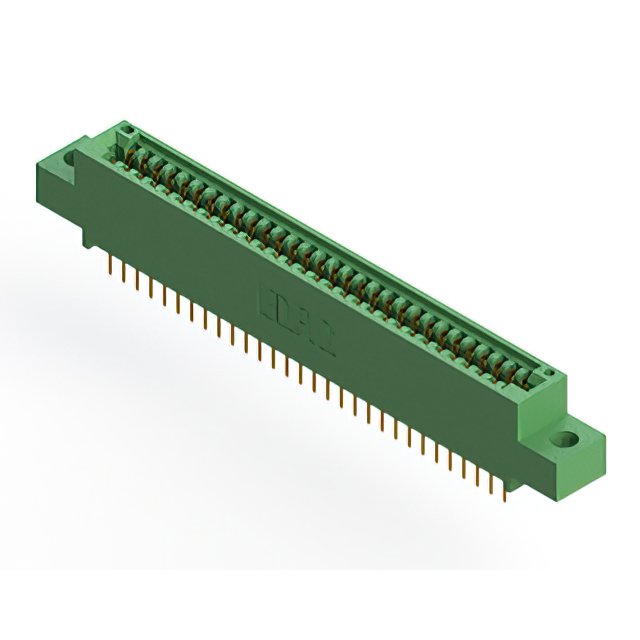

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Through Hole | Copper Alloy | 125 °C | -40 C | Gold | Non Specified - Dual Edge | Solder | 0.1 " | 2.54 mm | Female | Cantilever | Green | 0.156 " | 3.96 mm | 2 | 30 | 60 | Dual | ||||

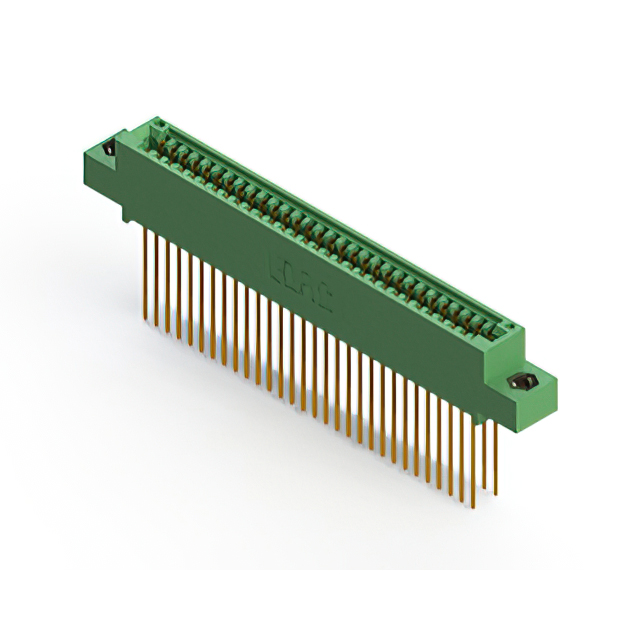

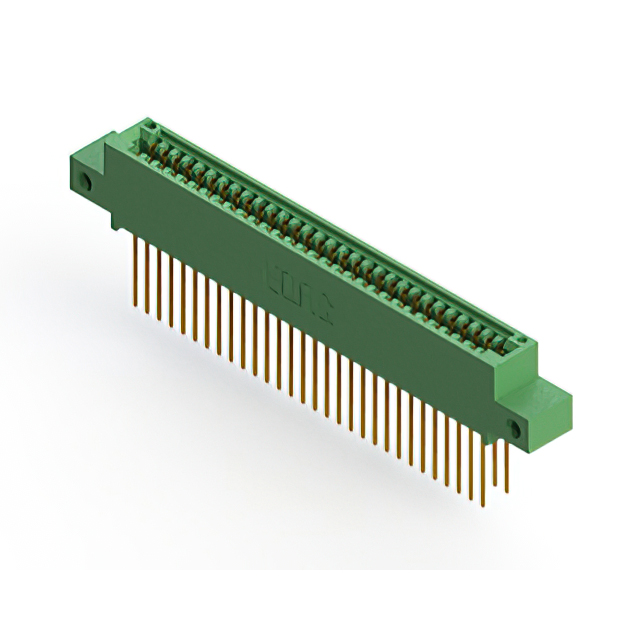

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Through Hole | Copper Alloy | 125 °C | -40 C | Gold | Non Specified - Dual Edge | Wire Wrap | 0.1 " | 2.54 mm | Female | Cantilever | Green | 0.128 " | 3.25 mm | 2 | 30 | 60 | Dual | ||||

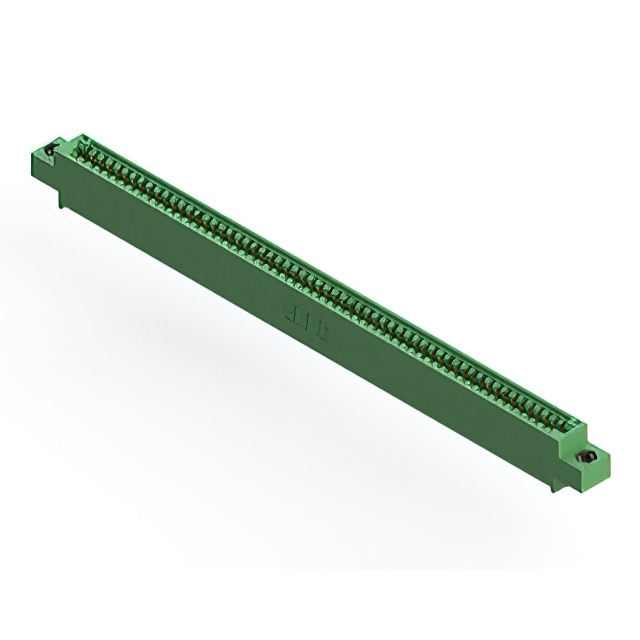

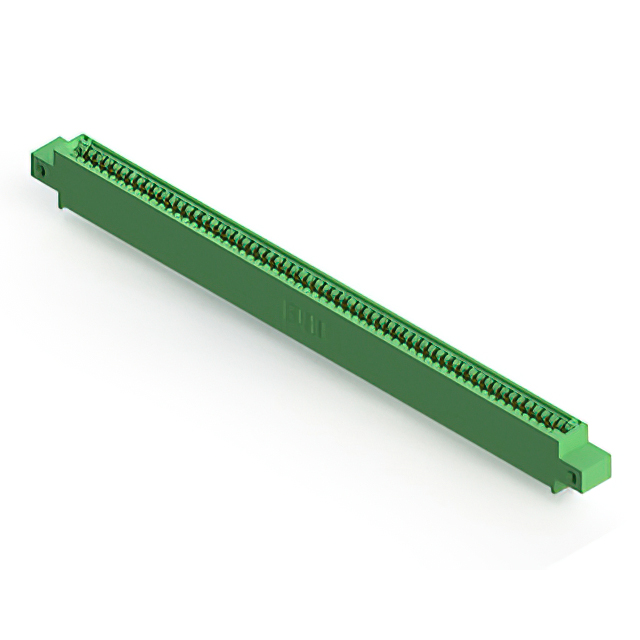

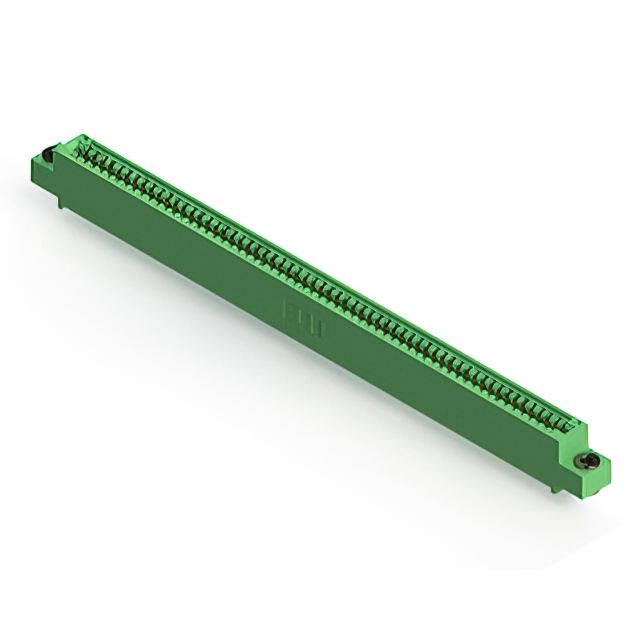

 EDAC Inc. | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Through Hole | Copper Alloy | 125 °C | -40 C | Gold | Non Specified - Single Edge | Solder | 0.1 " | 2.54 mm | Female | Cantilever | Green | 60 | Single | 1 | 60 | 4-40 Flush Mount Threaded Insert Top Opening | 1 | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Through Hole | Copper Alloy | 125 °C | -40 C | Gold | Non Specified - Single Edge | Solder | 0.1 " | 2.54 mm | Female | Cantilever | Green | 0.116 " | 2.95 mm | 60 | Single | 1 | 60 | Floating Bobbin Top Mount Opening | 1 | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Through Hole | Copper Alloy | 125 °C | -40 C | Gold | Non Specified - Dual Edge | Wire Wrap | 0.1 " | 2.54 mm | Female | Cantilever | Green | 2 | 30 | 60 | Dual | 4-40 Threaded Insert Top Mount Opening | |||||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Through Hole | Copper Alloy | 125 °C | -40 C | Gold | Non Specified - Dual Edge | Solder | 0.1 " | 2.54 mm | Female | Cantilever | Green | 0.128 " | 3.25 mm | 2 | 30 | 60 | Dual | Flush Mount Top Opening Unthreaded | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Through Hole | Copper Alloy | 125 °C | -40 C | Gold | Non Specified - Single Edge | Solder | 0.1 " | 2.54 mm | Female | Cantilever | Green | 60 | Single | 1 | 60 | 4-40 Threaded Insert Top Mount Opening | 1 | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Through Hole | Copper Alloy | 125 °C | -40 C | Gold | Non Specified - Single Edge | Solder Eyelet(s) | 0.1 " | 2.54 mm | Female | Cantilever | Green | 0.156 " | 3.96 mm | 60 | Single | 1 | 60 | 1 | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Through Hole | Copper Alloy | 125 °C | -40 C | Gold | Non Specified - Single Edge | Solder | 0.1 " | 2.54 mm | Female | Cantilever | Green | 0.128 " | 3.25 mm | 60 | Single | 1 | 60 | Side Mount Opening Unthreaded | 1 | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Through Hole | Copper Alloy | 125 °C | -40 C | Gold | Non Specified - Dual Edge | Wire Wrap | 0.1 " | 2.54 mm | Female | Cantilever | Green | 0.128 " | 3.25 mm | 2 | 30 | 60 | Dual | Side Mount Opening Unthreaded |
