0569-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Socket Depth	Socket Depth	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Length - Overall [x]	Length - Overall [x]	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Type	Contact Finish	Contact Material	Accepts Pin Diameter [Max]

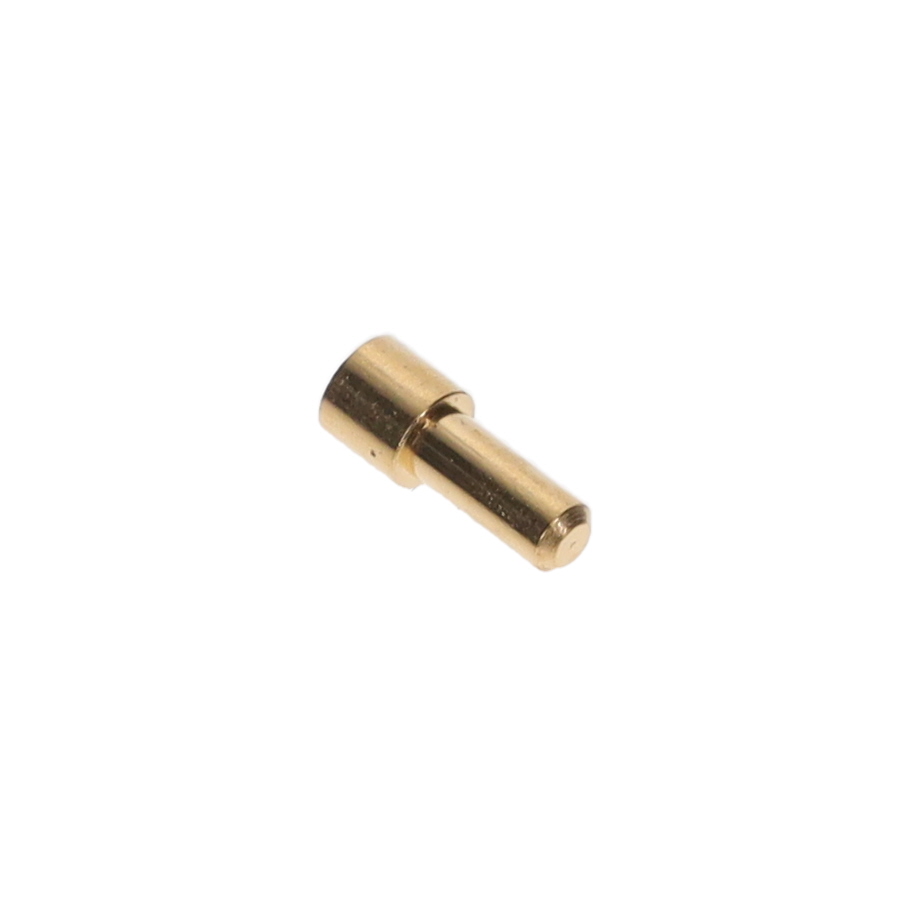

Mill-Max Manufacturing Corp. 0569-0-15-15-21-14-10-0	-55 C	125 °C	0.25 Ám	10 Áin	0.123 in	3.12 mm	0.031 in	0.79 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	3.56 mm	0.14 in	Solder	1.4 mm	0.055 in	1.02 mm	0.04 in	No Tail	Gold	Beryllium Copper
Mill-Max Manufacturing Corp. 0569-0-15-80-11-27-10-0	-55 C	125 °C	0.76 Ám	30 Áin	0.123 in	3.12 mm	0.031 in	0.79 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	3.56 mm	0.14 in	Solder	1.4 mm	0.055 in	1.02 mm	0.04 in	No Tail	Gold	Beryllium Copper
Mill-Max Manufacturing Corp. 0569-0-15-80-21-27-10-0	-55 C	125 °C	0.76 Ám	30 Áin	0.123 in	3.12 mm	0.031 in	0.79 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	3.56 mm	0.14 in	Solder	1.4 mm	0.055 in	1.02 mm	0.04 in	No Tail	Gold	Beryllium Copper
Mill-Max Manufacturing Corp. 0569-0-15-01-21-02-10-0	-55 C	125 °C	2.54 µm	100 µin	0.123 in	3.12 mm	0.031 in	0.79 mm	0.022 in	0.38 mm	0.015 "		3.56 mm	0.14 in	Solder	1.4 mm	0.055 in	1.02 mm	0.04 in	No Tail	Tin-Lead	Beryllium Copper	0.56 mm

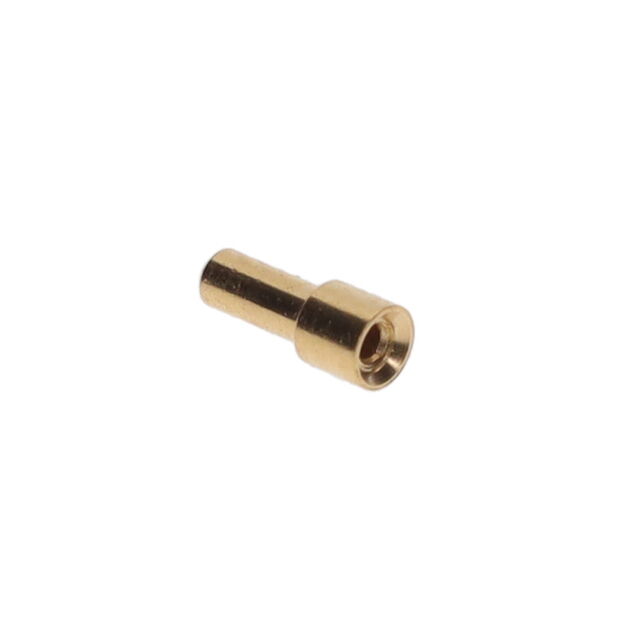

Mill-Max Manufacturing Corp. 0569-0-15-15-11-27-10-0	-55 C	125 °C	0.76 Ám	30 Áin	0.123 in	3.12 mm	0.031 in	0.79 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	3.56 mm	0.14 in	Solder	1.4 mm	0.055 in	1.02 mm	0.04 in	No Tail	Gold	Beryllium Copper
Mill-Max Manufacturing Corp. 0569-0-15-80-11-14-10-0	-55 C	125 °C	0.25 Ám	10 Áin	0.123 in	3.12 mm	0.031 in	0.79 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	3.56 mm	0.14 in	Solder	1.4 mm	0.055 in	1.02 mm	0.04 in	No Tail	Gold	Beryllium Copper
Mill-Max Manufacturing Corp. 0569-0-15-80-21-14-10-0	-55 C	125 °C	0.25 Ám	10 Áin	0.123 in	3.12 mm	0.031 in	0.79 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	3.56 mm	0.14 in	Solder	1.4 mm	0.055 in	1.02 mm	0.04 in	No Tail	Gold	Beryllium Copper
Mill-Max Manufacturing Corp. 0569-0-15-80-21-84-10-0	-55 C	125 °C	2.54 µm	100 µin	0.123 in	3.12 mm	0.031 in	0.79 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	3.56 mm	0.14 in	Solder	1.4 mm	0.055 in	1.02 mm	0.04 in	No Tail	Tin	Beryllium Copper

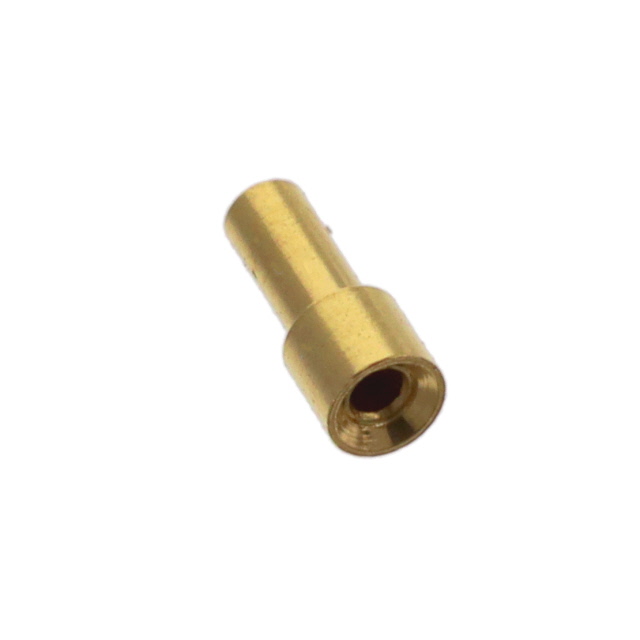

Mill-Max Manufacturing Corp. 0569-0-15-15-21-27-10-0	-55 C	125 °C	0.76 Ám	30 Áin	0.123 in	3.12 mm	0.031 in	0.79 mm	0.022 in	0.38 mm	0.015 "		3.56 mm	0.14 in	Solder	1.4 mm	0.055 in	1.02 mm	0.04 in	No Tail	Gold	Beryllium Copper	0.56 mm
Mill-Max Manufacturing Corp. 0569-0-15-01-11-02-10-0	-55 C	125 °C	2.54 µm	100 µin	0.123 in	3.12 mm	0.031 in	0.79 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	3.56 mm	0.14 in	Solder	1.4 mm	0.055 in	1.02 mm	0.04 in	No Tail	Tin-Lead	Beryllium Copper
