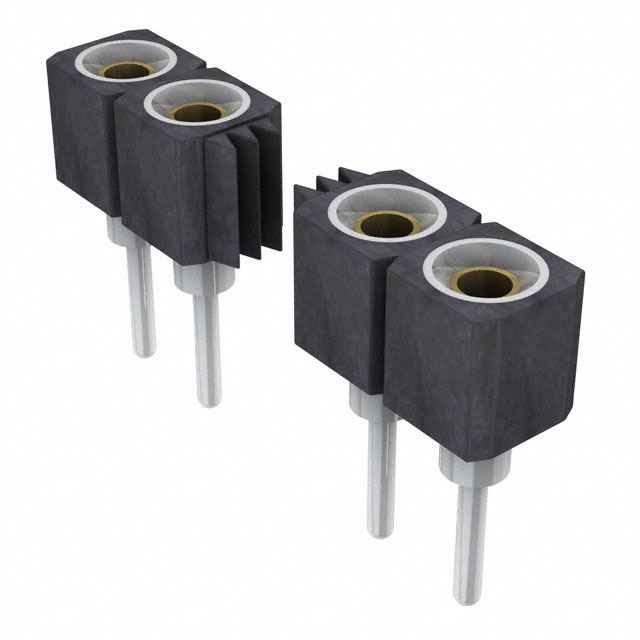

310-41 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RCPT 9POS 0.1 GOLD SMD

...

Part	Insulation Material	Contact Type	Contact Finish - Mating	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Material Flammability Rating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Finish - Post	Connector Type	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Shape	Number of Positions	Insulation Color	Voltage Rating	Contact Material	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions
Mill-Max Manufacturing Corp. 310-41-109-41-105000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	Gold	Push-Pull	200 µin	5.08 µm	Surface Mount	UL94 V-0	All	0.1 in	2.54 mm	10 çin	0.25 çm	-55 °C	125 °C	1	Tin	Receptacle	3 A	5.6 mm	0.22 in	Circular	9	Black	100 V 150 VDC	Beryllium Copper	Solder
Mill-Max Manufacturing Corp. 310-41-124-41-105000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	Gold	Push-Pull	200 µin	5.08 µm	Surface Mount	UL94 V-0	All	0.1 in	2.54 mm	10 çin	0.25 çm	-55 °C	125 °C	1	Tin	Receptacle	3 A	5.6 mm	0.22 in	Circular	24	Black	100 V 150 VDC	Beryllium Copper	Solder
Mill-Max Manufacturing Corp. 310-41-150-41-107000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	Gold	Push-Pull	200 µin	5.08 µm	Surface Mount	UL94 V-0	All	0.1 in	2.54 mm	10 çin	0.25 çm	-55 °C	125 °C	1	Tin	Receptacle	3 A	5.6 mm	0.22 in	Circular	50	Black	100 V 150 VDC	Beryllium Copper	Solder
Mill-Max Manufacturing Corp. 310-41-162-41-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	Gold	Push-Pull	200 µin	5.08 µm	Through Hole	UL94 V-0	All	0.1 in	2.54 mm	10 çin	0.25 çm	-55 °C	125 °C	1	Tin	Receptacle	3 A			Circular	62	Black	100 V 150 VDC	Beryllium Copper	Solder	3.18 mm	0.125 in
Mill-Max Manufacturing Corp. 310-41-144-61-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	Gold	Push-Pull	200 µin	5.08 µm	Through Hole	UL94 V-0	All	0.1 in	2.54 mm	10 çin	0.25 çm	-55 °C	125 °C	1	Tin	Receptacle	3 A			Circular	44	Black	100 V 150 VDC	Beryllium Copper	Solder	3.18 mm	0.125 in
Mill-Max Manufacturing Corp. 310-41-109-40-023000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	Gold	Push-Pull	200 µin	5.08 µm	Surface Mount Right Angle	UL94 V-0	All	0.1 in	2.54 mm	10 çin	0.25 çm	-55 °C	125 °C	1	Tin	Receptacle	3 A	2.54 mm	0.1 in	Circular	9	Black	100 V 150 VDC	Beryllium Copper	Solder
Mill-Max Manufacturing Corp. 310-41-103-41-105000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	Gold	Push-Pull	200 µin	5.08 µm	Surface Mount	UL94 V-0	All	0.1 in	2.54 mm	10 çin	0.25 çm	-55 °C	125 °C	1	Tin	Receptacle	3 A	5.6 mm	0.22 in	Circular		Black	100 V 150 VDC	Beryllium Copper	Solder
Mill-Max Manufacturing Corp. 310-41-122-41-105000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	Gold	Push-Pull	200 µin	5.08 µm	Surface Mount	UL94 V-0	All	0.1 in	2.54 mm	10 çin	0.25 çm	-55 °C	125 °C	1	Tin	Receptacle	3 A	5.6 mm	0.22 in	Circular	22 positions	Black	100 V 150 VDC	Beryllium Copper	Solder
Mill-Max Manufacturing Corp. 310-41-154-41-105000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	Gold	Push-Pull	200 µin	5.08 µm	Surface Mount	UL94 V-0	All	0.1 in	2.54 mm	10 çin	0.25 çm	-55 °C	125 °C	1	Tin	Receptacle	3 A	5.6 mm	0.22 in	Circular	54	Black	100 V 150 VDC	Beryllium Copper	Solder
Mill-Max Manufacturing Corp. 310-41-116-41-105000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	Gold	Push-Pull	200 µin	5.08 µm	Surface Mount	UL94 V-0	All	0.1 in	2.54 mm	10 çin	0.25 çm	-55 °C	125 °C	1	Tin	Receptacle	3 A	5.6 mm	0.22 in	Circular		Black	100 V 150 VDC	Beryllium Copper	Solder			16
