H9001 Series
Manufacturer: Harwin Inc.
Beta
⌘K

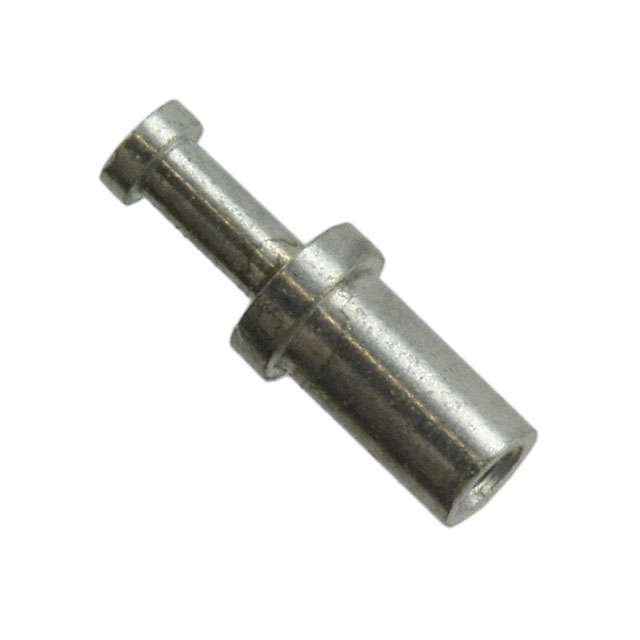

TERM TURRET SINGLE L=2.39MM TIN
| Part | Staking Side ID | Staking Side ID | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Max] | Length - Above Board [x] | Length - Above Board [x] | Contact Material | Termination | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Insulation | Number of Turrets | Length - Overall [x] | Length - Overall [x] | Terminal Type | Mounting Type | Board Thickness | Board Thickness | Length - Below Flange [Max] [x] | Length - Below Flange [Min] [x] | Length - Below Flange [Min] [x] | Length - Below Flange [Max] [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 0.71 mm | 0.028 in | 1.32 mm | 0.049 in | 1.24 mm | 0.052 in | 0.094 in | 2.39 mm | Brass Alloy | Swage | 1.57 mm | 0.062 in | Tin | 1.02 mm | 0.04 in | Non-Insulated | Single | 4.47 mm | 0.176 in | Single End | Through Hole | 0.063 in | 1.6 mm | 0.084 " | 2.08 mm | 0.082 " | 2.13 mm |
