Mini Circular Plastic Connectors Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CIRCULAR CONNECTOR, CPC SERIES, CABLE MOUNT RECEPTACLE, 4 CONTACTS
| Part | Number of Positions | Shell Size - Insert | Ingress Protection | Shielding | Orientation | Type | Connector Type | Housing Color | Material Flammability Rating | Fastening Type | Mounting Type | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Insert Material | Contact Shape | Note | Mounting Feature | Features | Shell Size - Insert [Max] | Shell Size - Insert [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 4 | 8-4 | IP67 - Dust Tight Waterproof | Unshielded | A | For Male Pins | Receptacle Housing | Black | UL94 V-0 | Bayonet Lock | Free Hanging (In-Line) | Crimp | |||||||||

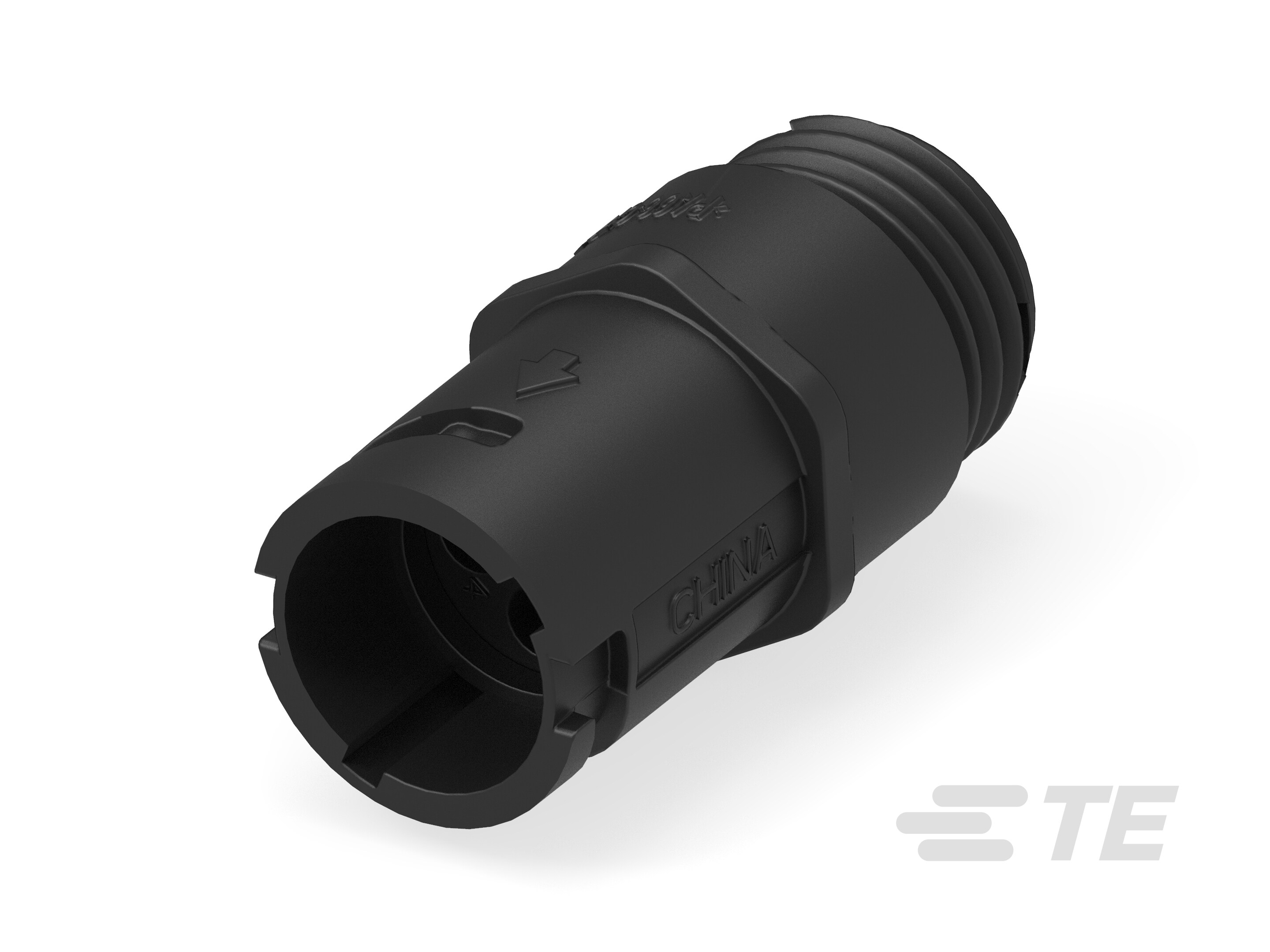

 TE Connectivity AMP Connectors | 4 | 8-4 | IP67 - Dust Tight Waterproof | Unshielded | A | For Male Pins | Receptacle Housing | Black | UL94 V-0 | Bayonet Lock | Free Hanging (In-Line) | Crimp | -55 C | 105 ░C | Thermoplastic | Circular | Contacts Not Included | ||||
 TE Connectivity AMP Connectors | 6 | 11-6 | IP67 - Dust Tight Waterproof | Unshielded | A | For Male Pins | Receptacle Housing | Black | UL94 V-0 | Bayonet Lock | Free Hanging (In-Line) | Crimp | |||||||||

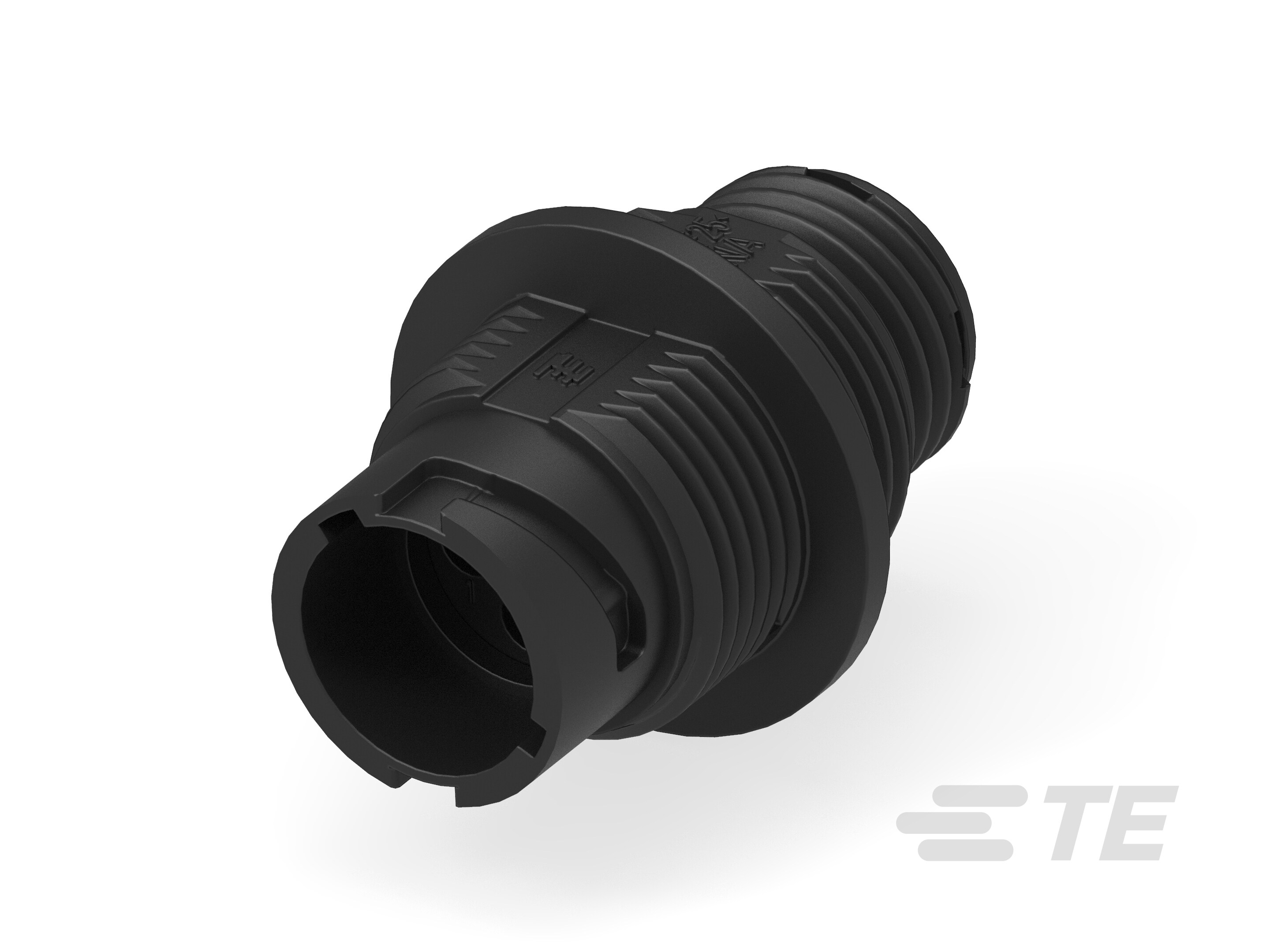

 TE Connectivity AMP Connectors | 4 | 8-4 | IP67 - Dust Tight Waterproof | Unshielded | A | For Male Pins | Receptacle Housing | Black | UL94 V-0 | Bayonet Lock | Panel Mount | Crimp | -55 C | 105 ░C | Thermoplastic | Circular | Contacts Not Included Jam Nut Not Included | Bulkhead - Front or Rear Side Nut | |||

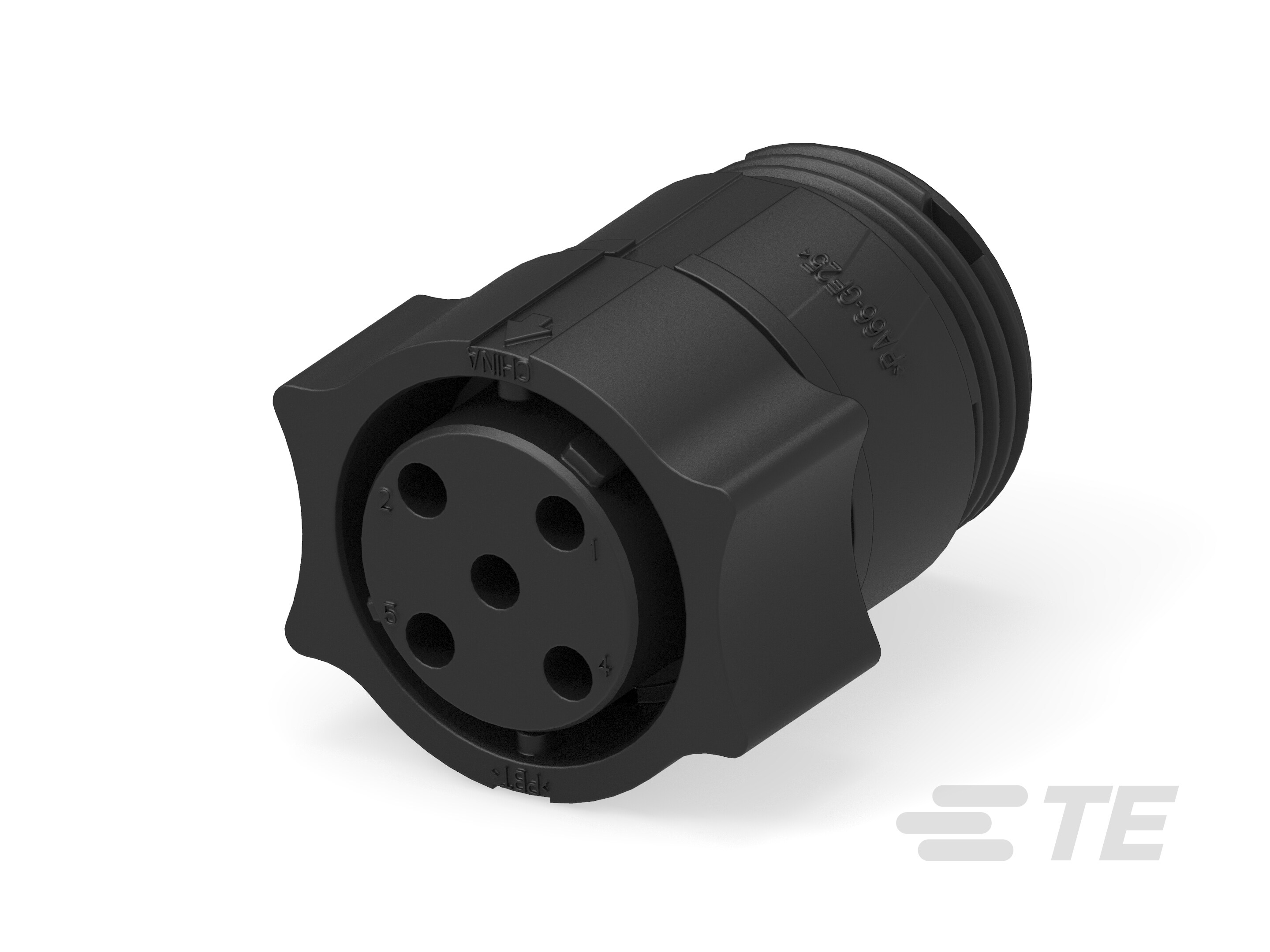

 TE Connectivity AMP Connectors | 5 | 11-5 | IP67 - Dust Tight Waterproof | Unshielded | A | For Female Sockets | Plug Housing | Black | UL94 V-0 | Bayonet Lock | Free Hanging (In-Line) | Crimp | -55 C | 105 ░C | Thermoplastic | Circular | Contacts Not Included | Coupling Nut | |||
 TE Connectivity AMP Connectors | 6 | 11-6 | IP67 - Dust Tight Waterproof | Unshielded | A | For Female Sockets | Plug Housing | Black | UL94 V-0 | Bayonet Lock | Free Hanging (In-Line) | Crimp | -55 C | 105 ░C | Thermoplastic | Circular | Contacts Not Included | Coupling Nut | |||
 TE Connectivity AMP Connectors | 9 | IP67 - Dust Tight Waterproof | Unshielded | A | For Male Pins | Receptacle Housing | Black | UL94 V-0 | Bayonet Lock | Free Hanging (In-Line) | Crimp | 9 | 11 | ||||||||
 TE Connectivity AMP Connectors | 4 | 8-4 | IP67 - Dust Tight Waterproof | Unshielded | A | For Female Sockets | Plug Housing | Black | UL94 V-0 | Bayonet Lock | Free Hanging (In-Line) | Crimp | -55 C | 105 ░C | Thermoplastic | Circular | Contacts Not Included | Coupling Nut | |||
 TE Connectivity AMP Connectors | 5 | 11-5 | IP67 - Dust Tight Waterproof | Unshielded | A | For Male Pins | Receptacle Housing | Black | UL94 V-0 | Bayonet Lock | Free Hanging (In-Line) | Crimp | -55 C | 105 ░C | Thermoplastic | Circular | Contacts Not Included | ||||

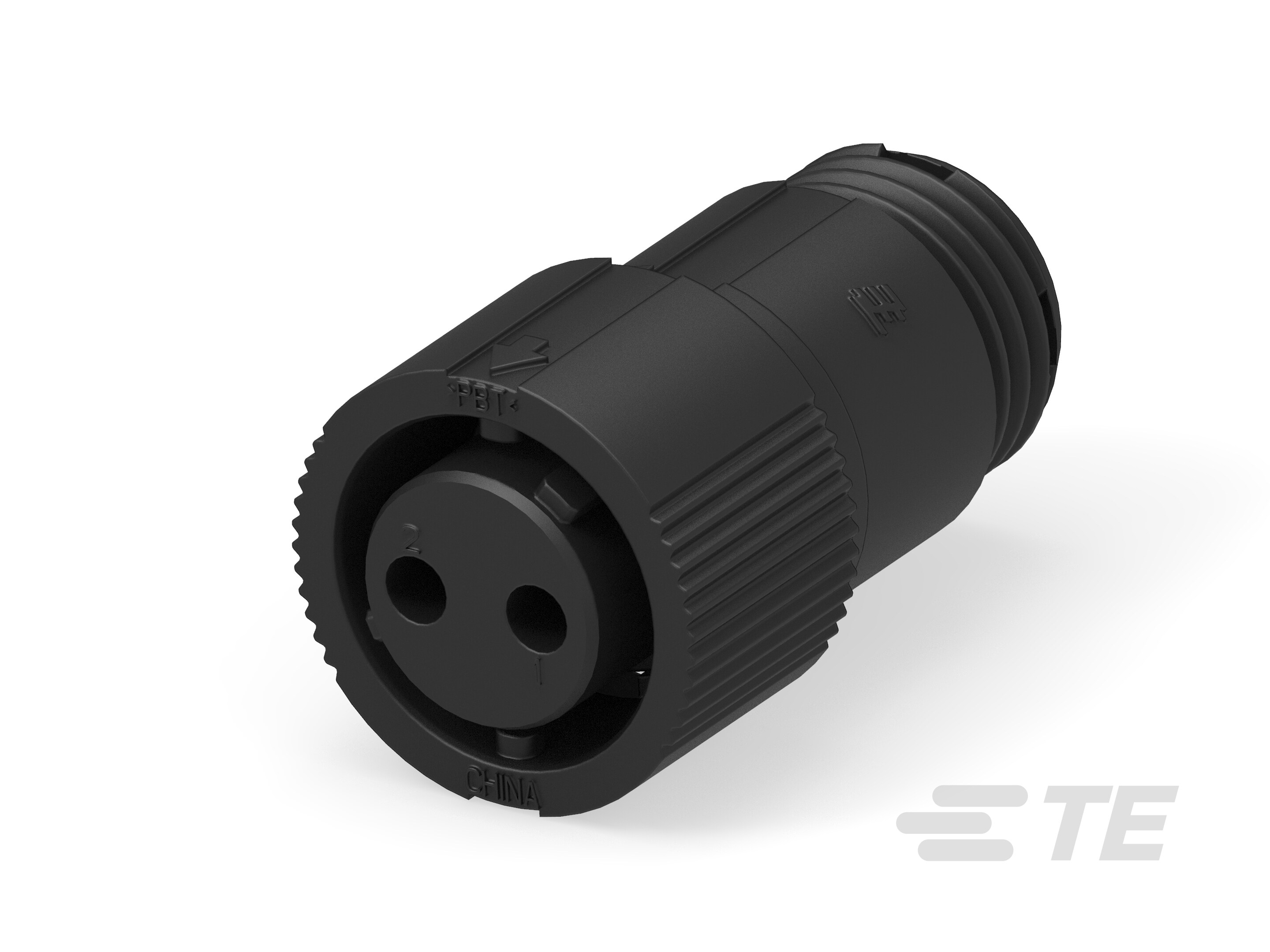

 TE Connectivity AMP Connectors | 2 | 8-2 | IP67 - Dust Tight Waterproof | Unshielded | A | For Female Sockets | Plug Housing | Black | UL94 V-0 | Bayonet Lock | Free Hanging (In-Line) | Crimp | Coupling Nut |
