892-006 Series
Manufacturer: EDAC Inc.
Beta
⌘K

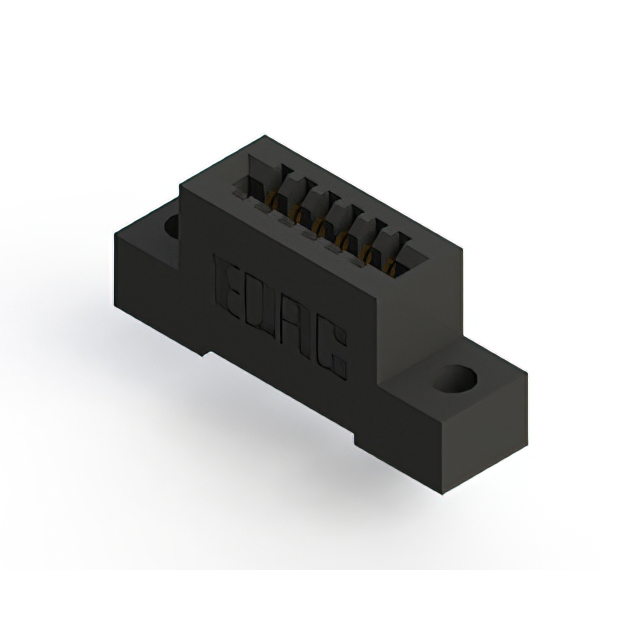

CONN EDGE SINGLE FML 6POS 0.100
| Part | Material - Insulation | Termination Rows | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Color | Contact Finish | Pitch | Pitch | Card Thickness [Max] | Card Thickness [Min] | Number of Positions/Bay/Row | Number of Positions | Number of Rows | Read Out | Gender | Contact Type | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 0.25 Ám | 10 Áin | Black | Gold | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 6 | 6 | 1 | Single | Female | Cantilever | Wire Wrap | 125 °C | -40 C | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Through Hole |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 0.25 Ám | 10 Áin | Black | Gold | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 6 | 6 | 1 | Single | Female | Cantilever | Solder | 125 °C | -40 C | Non Specified - Single Edge | Flush Mount M3 Threaded Insert Top Opening | Through Hole | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 0.25 Ám | 10 Áin | Black | Gold | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 6 | 6 | 1 | Single | Female | Cantilever | Wire Wrap | 125 °C | -40 C | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 0.25 Ám | 10 Áin | Black | Gold | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 6 | 6 | 1 | Single | Female | Cantilever | Solder | 125 °C | -40 C | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Through Hole |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 0.25 Ám | 10 Áin | Black | Gold | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 6 | 6 | 1 | Single | Female | Cantilever | Solder | 125 °C | -40 C | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Through Hole |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 0.25 Ám | 10 Áin | Black | Gold | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 6 | 6 | 1 | Single | Female | Cantilever | Wire Wrap | 125 °C | -40 C | Non Specified - Single Edge | Through Hole | |||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 0.25 Ám | 10 Áin | Black | Gold | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 6 | 6 | 1 | Single | Female | Cantilever | Wire Wrap | 125 °C | -40 C | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Through Hole |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 0.25 Ám | 10 Áin | Black | Gold | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 6 | 6 | 1 | Single | Female | Cantilever | Wire Wrap | 125 °C | -40 C | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Through Hole |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 0.25 Ám | 10 Áin | Black | Gold | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 6 | 6 | 1 | Single | Female | Cantilever | Wire Wrap | 125 °C | -40 C | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Through Hole |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 0.25 Ám | 10 Áin | Black | Gold | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 6 | 6 | 1 | Single | Female | Cantilever | Solder | 125 °C | -40 C | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Right Angle Through Hole |
