BIDW30N Series
Manufacturer: Bourns Inc.
Beta
⌘K

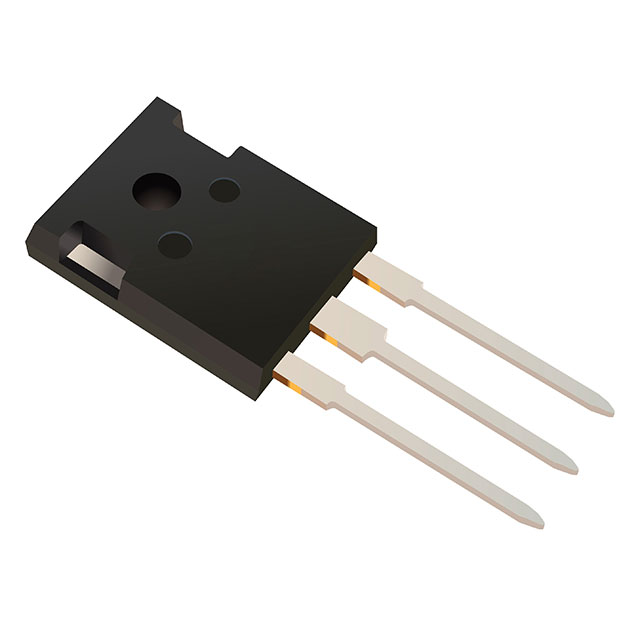

TRANSISTOR, IGBT, 600V/60A/230W/TO-247 ROHS COMPLIANT: YES
| Part | IGBT Type | Mounting Type | Current - Collector Pulsed (Icm) | Power - Max [Max] | Supplier Device Package | Switching Energy | Reverse Recovery Time (trr) | Vce(on) (Max) @ Vge, Ic | Voltage - Collector Emitter Breakdown (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Gate Charge | Test Condition | Td (on/off) @ 25°C [custom] | Td (on/off) @ 25°C [custom] | Current - Collector (Ic) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Trench Field Stop | Through Hole | 90 A | 230 W | TO-247 | 1.85 mJ 450 µJ | 40 ns | 1.65 V | 600 V | 150 °C | -55 °C | TO-247-3 | 76 nC | 10 Ohm 15 V 30 A 400 V | 30 ns | 67 ns | 60 A |
