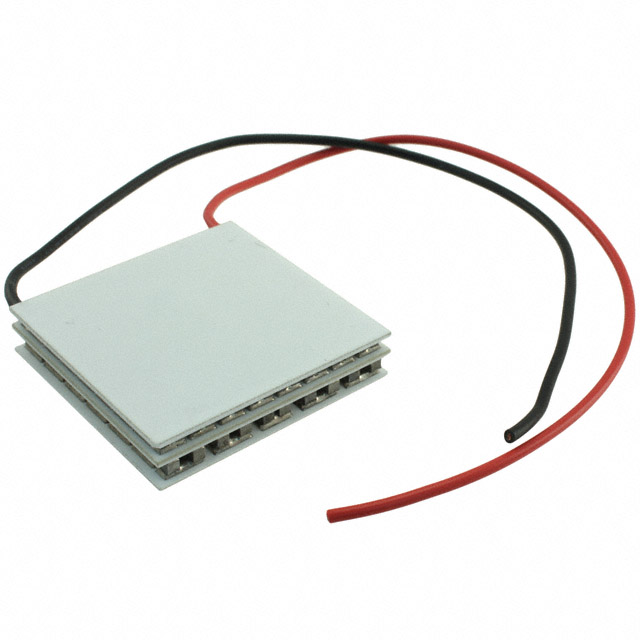

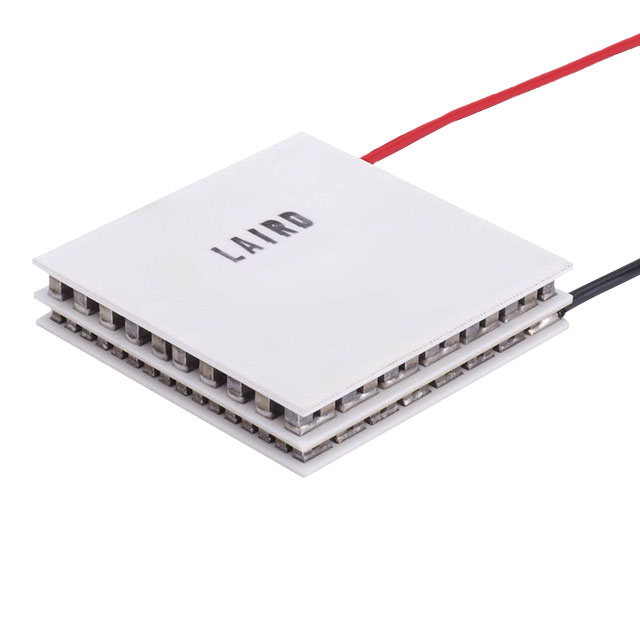

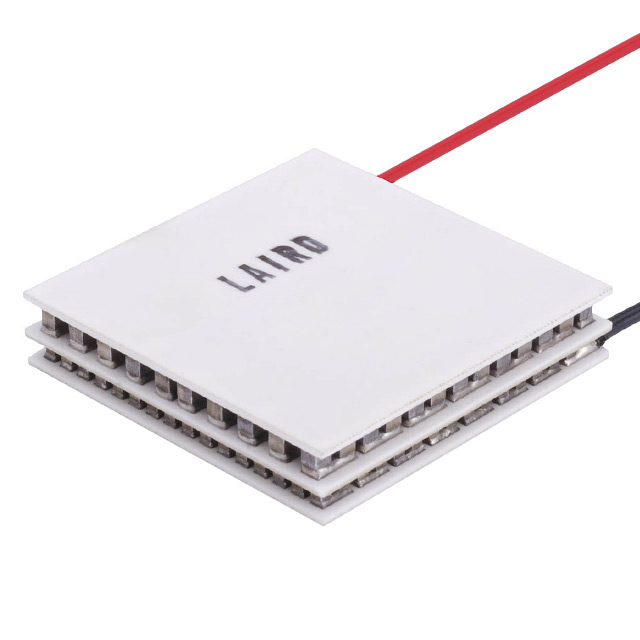

9350006 Series

Catalog

MS2,192,14,20,11,18,11,RT,W8

Part	Qmax @ Th	Size / Dimension [x]	Size / Dimension [y]	Features	Height [z]	Voltage - Max [Max]	Operating Temperature	Number of Stages	Current - Max [Max]	Delta Tmax @ Th
Laird Thermal Systems, Inc. 9350006-302	39.9 W	40 mm	40 mm	Lead Wires Sealed - Silicone RTV	8.1 mm	15.8 V	80 °C	2	6.8 A	87 °C
Laird Thermal Systems, Inc. 9350006-307	39.9 W	40 mm	40 mm	Lead Wires Non-Sealed	8.28 mm	15.8 V	80 °C	2	6.8 A	87 °C
Laird Thermal Systems, Inc. 9350006-301	39.9 W	40 mm	40 mm	Lead Wires Non-Sealed	8.1 mm	15.8 V	80 °C	2	6.8 A	87 °C
Laird Thermal Systems, Inc. 9350006-304	39.9 W	40 mm	40 mm	Lead Wires Non-Sealed	8.28 mm	15.8 V	80 °C	2	6.8 A	87 °C
