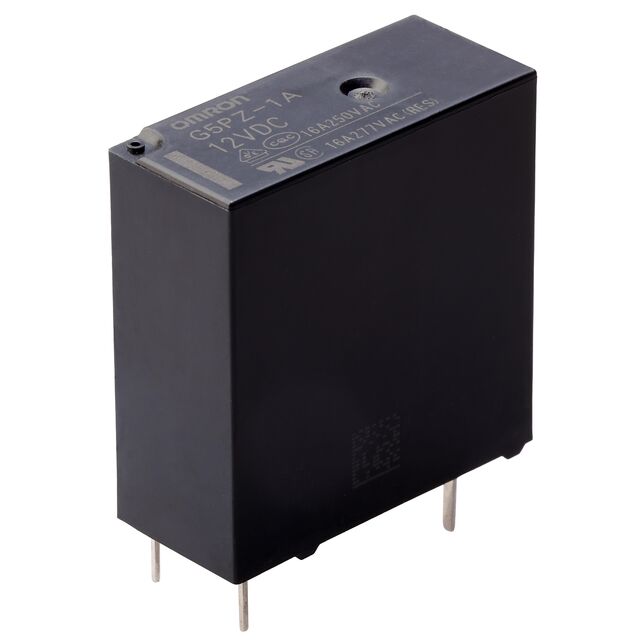

G5PZ-1A Series
General Purpose Relays PCB Power Relay Compact 16A, 12 VDC
Manufacturer: Omron Electronics Inc-EMC Div
Catalog
General Purpose Relays PCB Power Relay Compact 16A, 12 VDC
Beta
⌘K
General Purpose Relays PCB Power Relay Compact 16A, 12 VDC
General Purpose Relays PCB Power Relay Compact 16A, 12 VDC
General Purpose Relays PCB Power Relay Compact 16A, 12 VDC
| Part | Must Release Voltage | Switching Voltage | Contact Rating (Current) | Contact Form | Contact Material | Coil Current | Relay Type | Operate Time | Must Operate Voltage | Termination Style | Coil Type | Coil Resistance | Operating Temperature [Min] | Operating Temperature [Max] | Seal Rating | Release Time | Mounting Type | Load - Max Switching | Coil Voltage | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 0.5 VDC | 250 VAC | 16 A | SPST-NO (1 Form A) | Cadmium Free Silver Alloy | 106 mA | General Purpose | 15 ms | 3.8 VDC | PC Pin | Non Latching | 47 Ohms | -40 °C | 70 °C | Sealed - Flux Protection | 5 ms | Through Hole | 4000 VA | 5 VDC | CQC CSA TUV UR VDE |
Omron Electronics Inc-EMC Div | 2.4 VDC | 250 VAC | 16 A | SPST-NO (1 Form A) | Cadmium Free Silver Alloy | 22.1 mA | General Purpose | 15 ms | 18 VDC | PC Pin | Non Latching | 1.087 kOhms | -40 °C | 70 °C | Sealed - Flux Protection | 5 ms | Through Hole | 4000 VA | 24 VDC | CQC CSA TUV UR VDE |
 Omron Electronics Inc-EMC Div | 0.5 VDC | 250 VAC | 20 A | SPST-NO (1 Form A) | Cadmium Free Silver Alloy | 106 mA | General Purpose | 15 ms | 3.75 VDC | PC Pin | Non Latching | 47 Ohms | -40 °C | 70 °C | Sealed - Fully | 5 ms | Through Hole | 5000 VA | 5 VDC | CQC CSA TUV UR VDE |
Omron Electronics Inc-EMC Div | 2.4 VDC | 250 VAC | 20 A | SPST-NO (1 Form A) | Cadmium Free Silver Alloy | 22.1 mA | General Purpose | 15 ms | 18 VDC | PC Pin | Non Latching | 1.087 kOhms | -40 °C | 70 °C | Sealed - Flux Protection | 5 ms | Through Hole | 5000 VA | 24 VDC | CQC CSA TUV UR VDE |
Omron Electronics Inc-EMC Div | 1.2 VDC | 250 VAC | 16 A | SPST-NO (1 Form A) | Cadmium Free Silver Alloy | General Purpose | 15 ms | 9 VDC | PC Pin | Non Latching | 272 Ohms | -40 °C | 70 °C | Sealed - Flux Protection | 5 ms | Through Hole | 4000 VA | 12 VDC | CQC CSA TUV UR VDE | |
Omron Electronics Inc-EMC Div | 0.5 VDC | 250 VAC | 20 A | SPST-NO (1 Form A) | Cadmium Free Silver Alloy | 106 mA | General Purpose | 15 ms | 3.8 VDC | PC Pin | Non Latching | 47 Ohms | -40 °C | 70 °C | Sealed - Flux Protection | 5 ms | Through Hole | 5000 VA | 5 VDC | CQC CSA TUV UR VDE |
Omron Electronics Inc-EMC Div | 1.2 VDC | 250 VAC | 20 A | SPST-NO (1 Form A) | Cadmium Free Silver Alloy | General Purpose | 15 ms | 9 VDC | PC Pin | Non Latching | 272 Ohms | -40 °C | 70 °C | Sealed - Fully | 5 ms | Through Hole | 5000 VA | 12 VDC | CQC CSA TUV UR VDE | |
Omron Electronics Inc-EMC Div | 1.2 VDC | 250 VAC | 20 A | SPST-NO (1 Form A) | Cadmium Free Silver Alloy | General Purpose | 15 ms | 9 VDC | PC Pin | Non Latching | 272 Ohms | -40 °C | 70 °C | Sealed - Flux Protection | 5 ms | Through Hole | 5000 VA | 12 VDC | CQC CSA TUV UR VDE |
