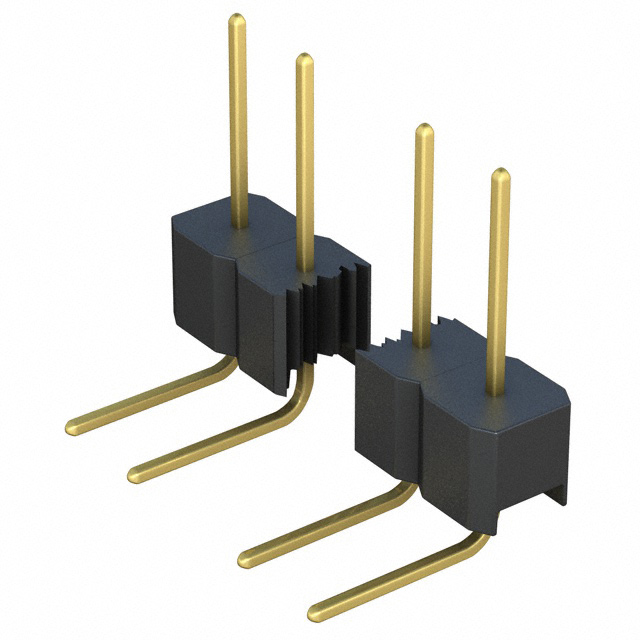

PRPN401 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HEADER R/A 40POS 2MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Mounting Type | Style | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post [custom] | Contact Length - Post | Contact Material | Insulation Material | Contact Type | Fastening Type | Number of Positions Loaded | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Contact Shape | Shrouding | Termination | Insulation Color | Number of Positions | Contact Finish - Post | Contact Length - Mating | Contact Length - Mating | Insulation Height [z] | Insulation Height [z] | Connector Type | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Flash | Flash | Right Angle Through Hole | Board to Board Cable | 1 | -40 C | 105 ░C | 0.11 in | 2.79 mm | Brass | Polyester | Male Pin | Push-Pull | All | UL94 V-0 | 0.079 " | 2 mm | Square | Unshrouded | Solder | Black | 40 | Gold | 4 mm | 0.157 in | 2 mm | 0.079 in | Header | Gold |
